Grinding and Service SG-4080AH Saddle Moving Type Surface Grinder for Voltage 220/330V
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Certification: | CE ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 580 | Surface Roughness(μm): | 0.01 μm |
| Table Size(mm): | 406x813 | Table Travel (X) (mm): | 450 |
| Table Travel (Y) (mm): | 910 | Year: | 2023 |
| Voltage: | 220/330V | Dimension(L*W*H): | 360x240x190 Cm |
| Weight (KG): | 3400 | Power (kW): | 4 |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Showroom Location: | Indonesia, Nigeria, Germany, UAE, Mexico, France, Japan, Australia, Viet Nam, Kenya, Morocco, South Africa, Canada, Russia, Uzbekistan | Marketing Type: | Hot Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Bearing, Gearbox, Engine, Gear, Pressure Vessel, Pump, PLC, Other |
| Applicable Industries: | Manufacturing Plant, Energy & Mining, Retail, Food & Beverage Shops | Type: | Surface Grinding Machine |
| After-sales Service Provided: | Online Support | Name: | Grinder Machine |
| Product Name: | Surface Finishing Polishing Grinding Machine | Usage: | Surface Polishing |
| Keywords: | Precision Surface Grinder Machine | Application: | Grind Rail Surface |
| Color: | White | Precision: | High Precision |
| Port: | China Port | ||
Product Description
Products Description

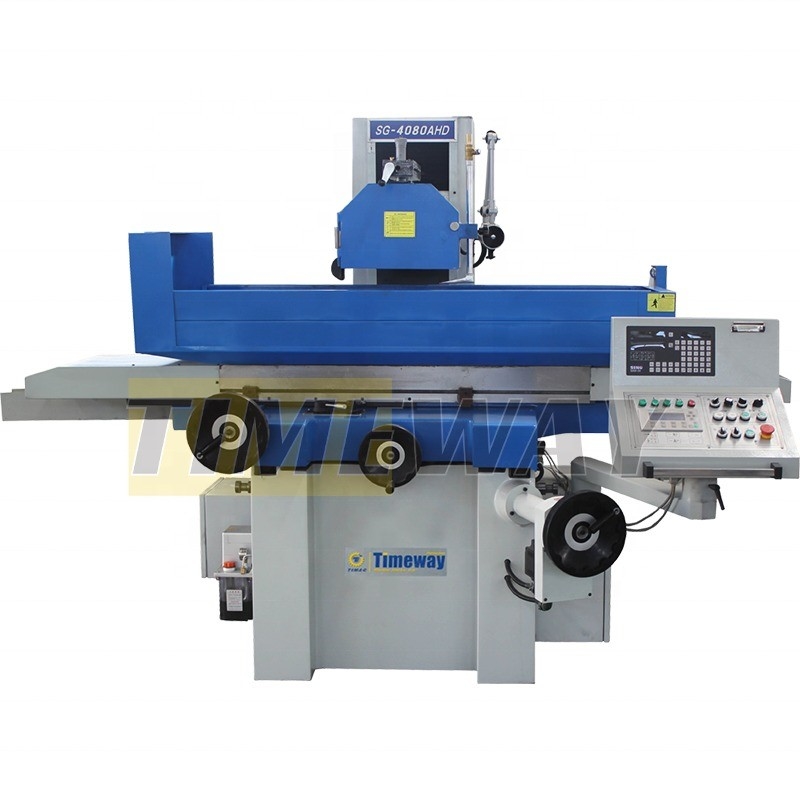

SG-4080AH
Saddle Moving Type Surface Grinder:
Specification | Unit | SG-4080AH SG-4080AHR SG-4080AHD |
Table size | mm | 406x813 |
Electro magnetic chuck size | mm | 400x800 |
Distance from spindle to table | mm | 580 |
Table cross travel | mm | 450 |
Table longitudinal travel | mm | 910 |
Loading capacity (include chuck) | kg | 500 |
Longitudinal feed speed | m/min | 5-25 |
Table cross intermittent feed rate | mm/str | 0.1-8 |
Table cross rapid feed speed | mm/min | 990 |
Table cross feed of handwheel | mm/gra | 0.02 |
Wheelhead vertical intermittent feed rate | mm/str | AH: -; AHR: -; AHD: 0.005-0.5; |
Wheelhead vertical rapid feed speed | mm/min | AH: -; AHR: 650; AHD: 480; |
Wheelhead vertical feed of handwheel | mm/gra | 0.005 |
Spindle speed (50/60HZ) | rpm | 1450/1750 |
Grinding wheel size | mm | 350x40x127 |
Main motor power | kw | 4 |
Machine dimensions (LxWxH) | cm | 360x240x190 |
Package dimensions (LxWxH) | cm | 285x227x221 |
Machine weight | kg | 3400 |
Positive Comments From Customers
Shipping
Exhibitions
TIMEWAY at EMO Hannover
TIMEWAY machine participates in the EMO Hannover exhibition every time, which is Europe's leading machine tool and metal processing technology exhibition. At the exhibition, TIMEWAY machine demonstrated its advanced machine tools and processing technology, as well as comprehensive solutions for different industries and application fields. These solutions include precision machining and production of high-quality metal parts for the automotive, aerospace, energy, and other sectors.
TIMEWAY at CIMT
CIMT is held in China, the hometown of TIMEWAY machine, so TIMEWAY machine will participate in the CIMT exhibition every time. This is the China International Machine Tool Exhibition and one of the largest machine tool exhibitions in Asia. At the exhibition, TIMEWAY displayed its diversified machine tool products, including CNC machine tools, machining centers, gear processing machine tools, precision measuring equipment, etc.
TIMEWAY at Metalloobrabotka
TIMEWAY machine participated in the Metalloobrabotka exhibition held in Moscow, which is a professional exhibition for the metal processing and machine tool industry in Russia and surrounding areas. At the exhibition, TIMEWAY machine booth attracted the attention of many exhibitors and industry experts. The company's professional team had in-depth exchanges with exhibitors and visitors from Russia and other countries and regions, sharing valuable experience and the latest industry trends. In addition, TIMEWAY machine has also participated in exhibitions in many countries and regions.
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
