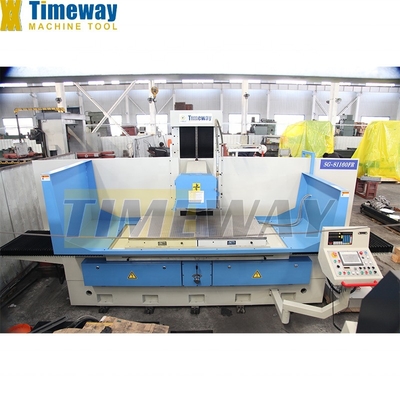

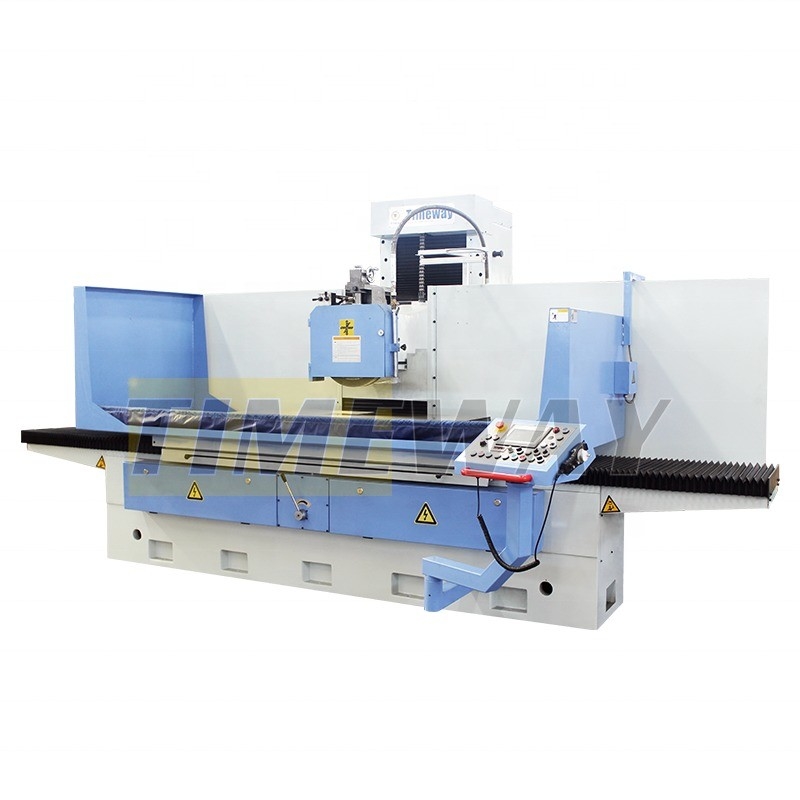

SG-81160FR High Precision Column Grinding Machine Grinding for Professional Manufacturing
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Certification: | CE ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 1000 | Surface Roughness(μm): | 0.01 μm |
| Table Size(mm): | 810x1600 | Table Travel (X) (mm): | 670 |
| Table Travel (Y) (mm): | 800 | Year: | 2023 |
| Voltage: | 220/330V | Dimension(L*W*H): | 5300x4450x2500 |
| Weight (KG): | 10500 | Power (kW): | 43 |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Showroom Location: | Indonesia, Nigeria, Germany, UAE, Mexico, France, Japan, Australia, Viet Nam, Kenya, Morocco, South Africa, Canada, Russia, Uzbekistan | Marketing Type: | Hot Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Bearing, Gearbox, Engine, Gear, Pressure Vessel, Pump, PLC, Other |
| Applicable Industries: | Manufacturing Plant, Energy & Mining, Retail, Food & Beverage Shops | Type: | Surface Grinding Machine |
| After-sales Service Provided: | Online Support | Name: | Grinder Machine |
| Product Name: | Surface Finishing Polishing Grinding Machine | Usage: | Surface Polishing |
| Keywords: | Precision Surface Grinder Machine | Application: | Grind Rail Surface |
| Color: | White | Precision: | High Precision |
| Port: | China Port | ||
Product Description
Products Description
SG-81160FR
Saddle Moving Type Surface Grinder:
Specification | Unit | SG-81160FR |
Table size | mm | 810x1600 |
Grinding area | mm | 810x1600 |
Grinding height | mm | 670(830/1000) |
Electro magnetic chuck size (pcs.) | mm | 800x800x2 |
Loading capacity (include chuck) | kg | 2000 |
Table longitudinal feed speed | m/min | 5-25 |
Column cross intermittent feed rate | mm/str | 1-30 |
Column cross continuous feed speed | mm/min | 50-2000 |
Column cross feed rate (MPG) | mm/gra | 0.005 |
Wheelhead vertical intermittent feed rate | mm/str | 0.005-0.05 |
Wheelhead vertical continuous feed speed | mm/min | 50-2000 |
Wheelhead vertical feed rate (MPG) | mm/gra | 0.005 |
Spindle speed (50/60HZ) | rpm | 960/1150 (OP: 1450) |
Grinding wheel size | mm | Φ500x75xΦ203 |
Main motor power | kw | 18.5 |
Hydraulic motor power | kw | 5.5 |
Y/Z-axis servo motor power | kw | 3 |
Total power | kw | 32 |
Machine dimensions (LxWxH) | mm | 4800x4000x2600 |
Machine weight | kg | 10500 |
