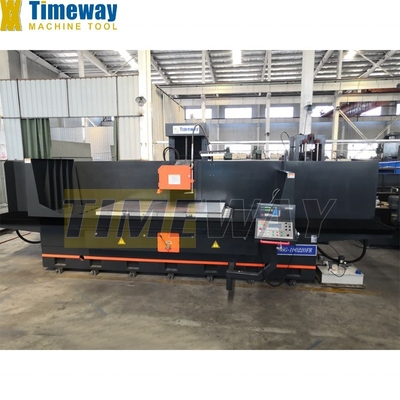

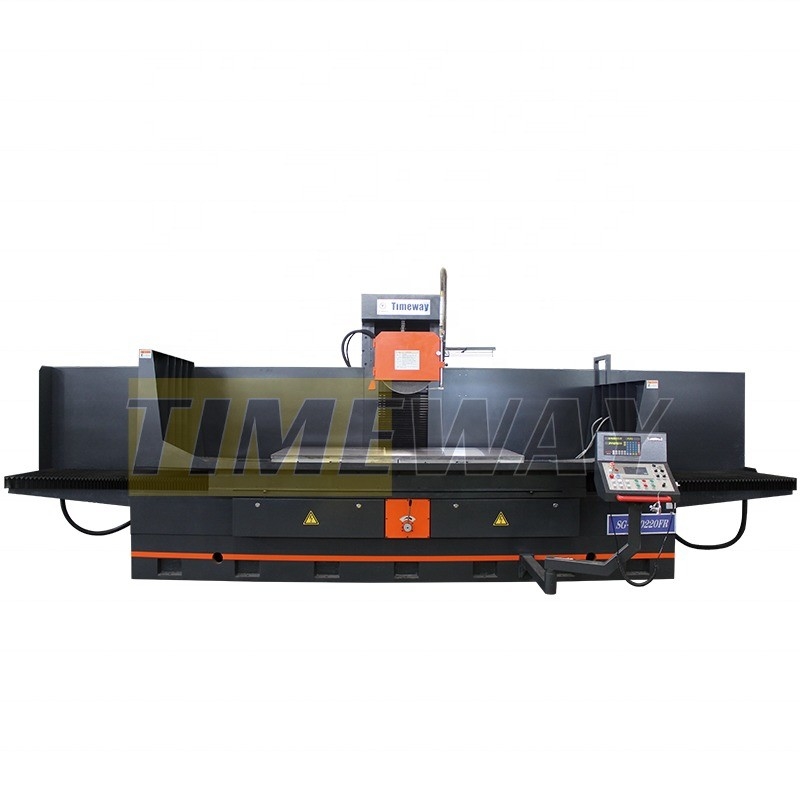

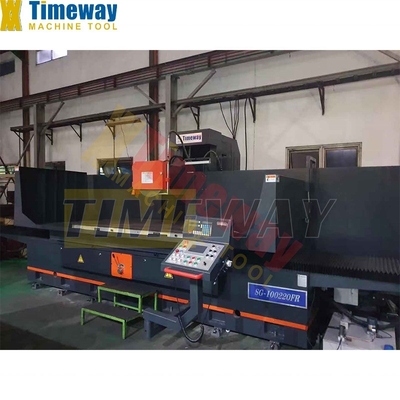

Normal CNC High Precision Column Moving Type Surface Grinder SG-100220FR 14000KG Weight
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Certification: | CE ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $26,000.00/sets 1-2 sets |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 1000 | Wheel Size(mm): | 500100305 |
| Surface Roughness(μm): | 0.01 μm | Table Size(mm): | 1000x2200 |
| Table Travel (X) (mm): | 1000 | Table Travel (Y) (mm): | 1000 |
| Year: | 2023 | Voltage: | 220/330V |
| Dimension(L*W*H): | 7200x5200x2500 | Weight (KG): | 14000 |
| Power (kW): | 45 | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Showroom Location: | Indonesia, Nigeria, Germany, UAE, Mexico, France, Japan, Australia, Viet Nam, Kenya, Morocco, South Africa, Canada, Russia, Uzbekistan |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Gearbox, Engine, Gear, Pressure Vessel, Pump, PLC, Other | Applicable Industries: | Manufacturing Plant, Energy & Mining, Retail, Food & Beverage Shops |
| Type: | Surface Grinding Machine | After-sales Service Provided: | Online Support |
| Name: | Grinder Machine | Product Name: | Surface Finishing Polishing Grinding Machine |
| Usage: | Surface Polishing | Keywords: | Precision Surface Grinder Machine |
| Application: | Grind Rail Surface | Color: | White |
| Precision: | High Precision | ||
Product Description
Products Description
SG-100220FR
Column Moving Type Surface Grinder:
Specification | Unit | SG-100220FR |
Table size | mm | 1000x2200 |
Grinding area | mm | 1000x2200 |
Grinding height | mm | 670(830/1000) |
Electro magnetic chuck size (pcs.) | mm | 1000x1000x2 |
Loading capacity (include chuck) | kg | 4000 |
Table longitudinal feed speed | m/min | 5-25 |
Column cross intermittent feed rate | mm/str | 1-30 |
Column cross continuous feed speed | mm/min | 50-2000 |
Column cross feed rate (MPG) | mm/gra | 0.005 |
Wheelhead vertical intermittent feed rate | mm/str | 0.005-0.05 |
Wheelhead vertical continuous feed speed | mm/min | 50-2000 |
Wheelhead vertical feed rate (MPG) | mm/gra | 0.005 |
Spindle speed (50/60HZ) | rpm | 960/1150 (OP: 1450) |
Grinding wheel size | mm | Φ500x75xΦ305 (Φ500x100xΦ203) |
Main motor power | kw | 18.5/22 |
Hydraulic motor power | kw | 7.5 |
Y/Z-axis servo motor power | kw | 3 |
Total power | kw | 37 |
Machine dimensions (LxWxH) | mm | 6000x4300x2600 |
Machine weight | kg | 14000 |
Shipping
Exhibitions
TIMEWAY at EMO Hannover
TIMEWAY machine participates in the EMO Hannover exhibition every time, which is Europe's leading machine tool and metal processing technology exhibition. At the exhibition, TIMEWAY machine demonstrated its advanced machine tools and processing technology, as well as comprehensive solutions for different industries and application fields. These solutions include precision machining and production of high-quality metal parts for the automotive, aerospace, energy, and other sectors.
TIMEWAY at CIMT
CIMT is held in China, the hometown of TIMEWAY machine, so TIMEWAY machine will participate in the CIMT exhibition every time. This is the China International Machine Tool Exhibition and one of the largest machine tool exhibitions in Asia. At the exhibition, TIMEWAY displayed its diversified machine tool products, including CNC machine tools, machining centers, gear processing machine tools, precision measuring equipment, etc.
TIMEWAY at Metalloobrabotka
TIMEWAY machine participated in the Metalloobrabotka exhibition held in Moscow, which is a professional exhibition for the metal processing and machine tool industry in Russia and surrounding areas. At the exhibition, TIMEWAY machine booth attracted the attention of many exhibitors and industry experts. The company's professional team had in-depth exchanges with exhibitors and visitors from Russia and other countries and regions, sharing valuable experience and the latest industry trends. In addition, TIMEWAY machine has also participated in exhibitions in many countries and regions.
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
