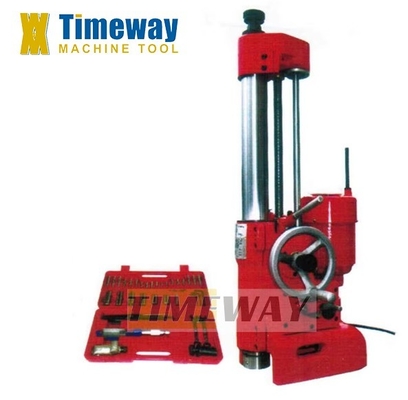

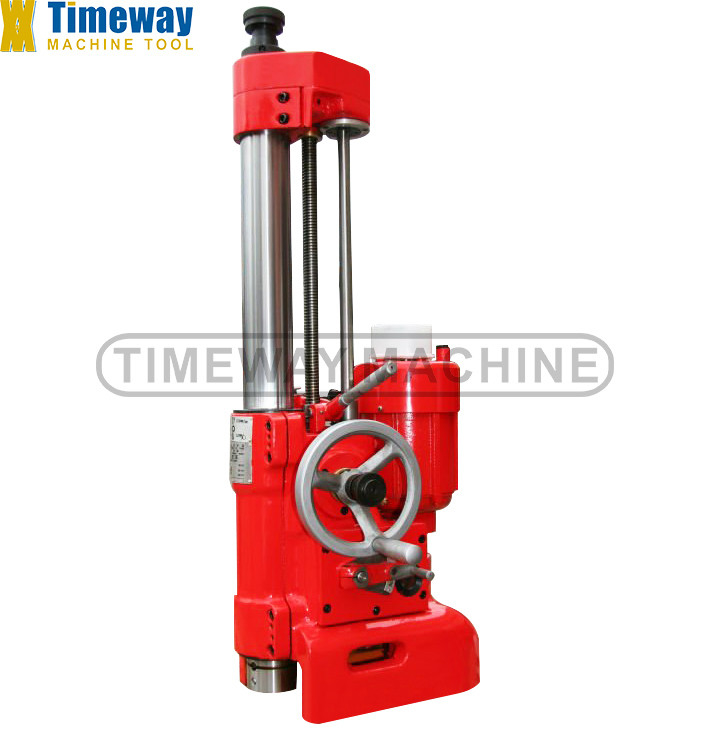

High Precision T8014A Vertical Cylinder Boring Machine Table Travel X 150 mm 2 Axes
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $1,565.00/sets >=1 sets |
|
Detail Information |
|||
| Table Size (mm): | Other | Table Travel (X) (mm): | 150 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 300 Mm | Table Travel (Z) (mm): | 0 Mm |
| Number Of Axes: | 2 | Travel (W-axis) (mm): | 0 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2024 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Motor | Range Of Spindle Speed(r.p.m): | 380 R.p.m |
| Spindle Motor Power(kW): | 0.25/0.37 | Type: | VERTICAL |
| Condition: | New | CNC Or Not: | Normal |
| Voltage: | 220/380 V | Dimension(L*W*H): | 320*330*850 Mm |
| Weight (T): | 0.06 T | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other |
| Showroom Location: | Philippines, India, Mexico, Chile, South Africa, Kazakhstan | X-axis Travel: | 150 Mm |
| Y-axis Travel: | 300 Mm | Z-axis Travel: | 0 Mm |
| Worktable Size: | Other | Boring Diameter: | 65-140 Mm |
| Max. Boring Depth: | 300 Mm | Spindle Speed: | 250/380 Mm |
| Spindle Feed: | 0.11 Mm/min | Spindle Rapid Reset Speed: | 636 Mm/min |
| Motor Power: | 0.25/0.37 Kw | ||
Product Description
Product Description
The boring machine is mainly used for reboring engine cylinders of automobiles motor cycles and middle & small tractors.
Reliable performance, widely use, processing accuracy high productivity.
Easy and flexible operation.
Good rigidity, amount of cutting.
Reliable performance, widely use, processing accuracy high productivity.
Easy and flexible operation.
Good rigidity, amount of cutting.
Specification
Specification | T8014A |
Boring diameter | 65-140 mm |
Max. boring depth | 300 mm |
Spindle speed | 250/380 rpm |
Spindle feed | 0.11 mm/r |
Spindle rapid reset speed | 636 mm/min |
Voltage | 220/380 V |
Motor power | 0.25/0.37 kw |
Motor rotation speed | 1440 rpm |
Machine dimensions | 320✖330✖850 mm |
Packing dimensions | 540✖470✖1030 mm |
Machine weight | 62 kg |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
One-Stop Shopping
You can click on the picture to view the products you are interested in
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
