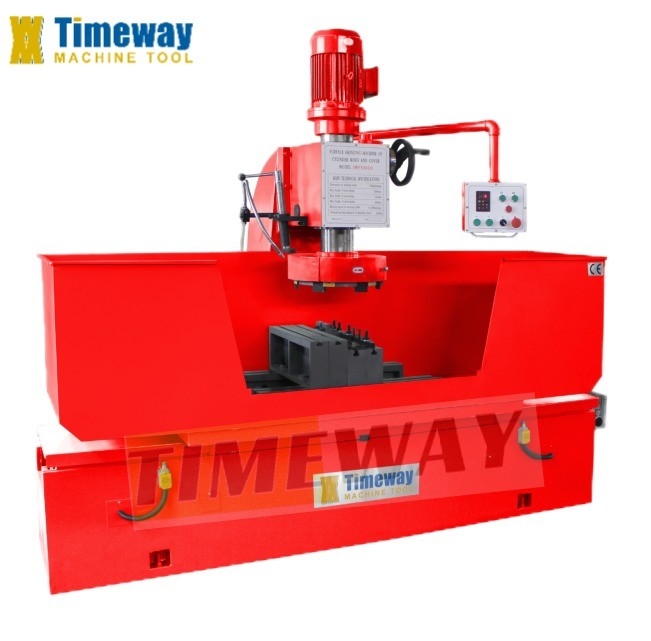

Universal 2024 Timeway 3M9735A Vertical Cylinder Surface Grinder High Grinding Efficiency
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10,100.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Universal | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Year: | 2024 |
| Dimension(L*W*H): | 2920x1100x2175 Mm | Weight (KG): | 2500 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Showroom Location: | Turkey, Kyrgyzstan, Peru, Italy | Applicable Industries: | Energy & Mining, Machinery Repair Shops, Building Material Shops |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Engine | Table Size: | 500x1300 Mm |
| Max Working Length: | 1300 Mm | Max Working Width: | 350 Mm |
| Max Working Height: | 600 Mm | Spindle Travel: | 120 Mm |
| Table Moving Speed: | 300 Mm/min | Emery Wheel Disk Diameter: | 360 Mm |
| Number Of Emery Tiles: | 8 Pcs | Main Motor Rotation Speed: | 1400/700 Rpm |
| Main Motor Power: | 1.5/2.4 Kw | ||
Product Description
Product Description
This machine is a vertical grinding and milling machine, with high grinding efficiency and accurate.
The table movement of this machine is driving by gear motor and ball screw, stpeless speed frequency control, convenient and stable adjustment.
Coupled with special fixtures to achieve multi-angle grinding cylinder and head.
The casting part of this machine is resin sand casting, deformation is small neat appearance.
The table movement of this machine is driving by gear motor and ball screw, stpeless speed frequency control, convenient and stable adjustment.
Coupled with special fixtures to achieve multi-angle grinding cylinder and head.
The casting part of this machine is resin sand casting, deformation is small neat appearance.
Specification
Specification | 3M9735A |
Table size | 500x1300 mm |
Max working length | 1300 mm |
Max working width | 350 mm |
Max working height | 600 mm |
Spindle travel | 120 mm |
Table moving speed | 0-300 mm/min |
Emery wheel disk diameter | 360 mm |
Number of emery tiles | 8 pcs |
Main motor rotation speed | 1400/700 rpm |
Main motor power | 1.5/2.4 kw |
Cooling pump motor power | 0.04 kw |
N.W/G.W | 2300/2500 kg |
Machine dimensions (LxWxH) | 2920x1100x2175 mm |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
One-Stop Shopping
You can click on the picture to view the products you are interested in
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
