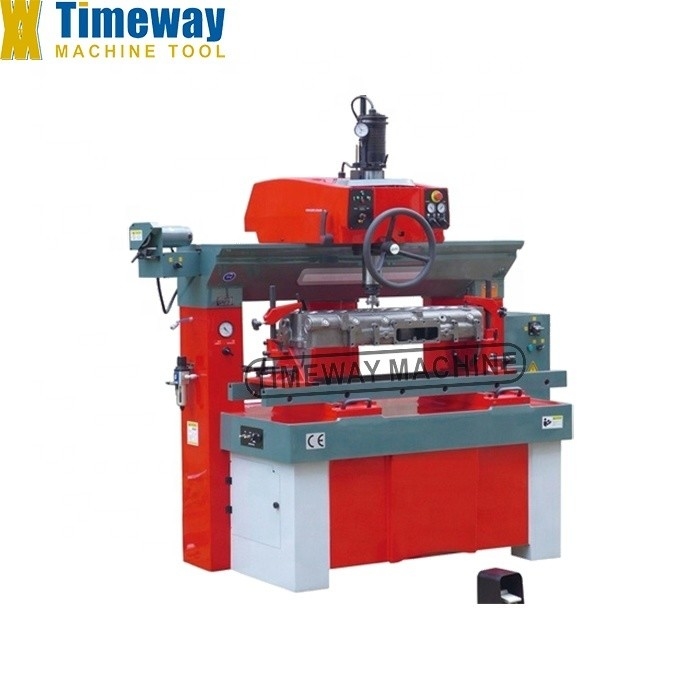

Unlimited Cylinder Head Length Valve Seat Boring Machine VS120 Air/Electric Drive System
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $16,654.00/sets 1-2 sets |
|
Detail Information |
|||
| Table Size (mm): | Other | Table Travel (X) (mm): | 1300 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 40 Mm | Table Travel (Z) (mm): | 0 Mm |
| Number Of Axes: | 2 | Travel (W-axis) (mm): | 1300 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2024 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine, Motor | Range Of Spindle Speed(r.p.m): | 10000 R.p.m |
| Spindle Motor Power(kW): | 2.2 | Type: | VERTICAL |
| Condition: | New | CNC Or Not: | Normal |
| Weight (T): | 1.75 T | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Applicable Industries: | Garment Shops, Machinery Repair Shops, Food & Beverage Factory, Energy & Mining, Other |
| Showroom Location: | Philippines, India, Kenya, Algeria | Type Of Drive System: | Air / Electric |
| Max. Length Of Cylinder Head: | Unlimited | Max. Width Of Cylinder Head: | 500 Mm |
| Max. Height Of Cylinder Head: | 450 Mm | Clamper Rotary Angle: | 45° |
| Max. Boring Diameter: | 120 Mm | Work Head Longitudinal Floating Travel: | 1300 Mm |
| Work Head Cross Floating Travel: | 40 Mm | Sphere Cylinder Travel: | 9 Mm |
| Power Of Spindle: | 2.2kw | ||
Product Description
Product Description
VS120 with high availability meets the requirements of boring, reaming and cutting machining for high accuracy valve guides and valve seats.
Specification
Specification | VS120 |
Type of drive system | Air / Electric |
Max. length of cylinder head | unlimited |
Max. width of cylinder head | 500 mm |
Max. height of cylinder head | 450 mm |
Clamper rotary angle | 45° / -15° |
Max. boring diameter | 14 – 120 mm |
Work head longitudinal floating travel | 1300 mm |
Work head cross floating travel | 40 mm |
Sphere – cylinder travel | 9 mm |
Power of spindle | 2.2 kw |
Spindle speed | 20-1000 rpm |
Spindle travel | 200 mm |
Max. spindle incination | 5.5° |
Electric supply | 380 V/50 HZ/3 PH or 220 V/60 HZ/3 PH |
Required rated air pressure | 6 Bar / 87 PSI |
Required max. air flow | 300 L / Min |
Net weight | 1750 kg |
Machine dimensions( LxWxH) | 2060x1150x2200 mm |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
One-Stop Shopping
You can click on the picture to view the products you are interested in
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
