Product Details:

Place of Origin: Henan, China
Brand Name: timeway

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $56,000.00/sets 1-2 sets
Get Best Price Contact Now

Detail Information
CNC Or Not: Normal Condition: New
Grinding Length(mm): 3000 Surface Roughness(μm): 0 μm
Table Size(mm): 1000*3000mm Table Travel (X) (mm): 1000
Table Travel (Y) (mm): 3000 Dimension(L*W*H): 8700*5200*2500mm
Weight (KG): 15500 Power (kW): 18.5/22
Warranty: 1 Year Key Selling Points: Automatic
Showroom Location: Russia, Uzbekistan, Brazil, Saudi Arabia Marketing Type: New Product 2023
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor, Bearing, Gearbox, Engine, Gear, Pump, PLC
Applicable Industries: Manufacturing Plant, Construction Works , Printing Shops, Machinery Repair Shops Product Name: Column Moving Type Surface Grinder
Machine Type: Suface Grinding Machine Max. Grinding Length: 3000mm
Color: Cutomized Model: SG-100300FR
Grinding Wheel: 500*100*305mm SPINDLE SPEED: 960/1150rpm
Worktable Size: 1000*3000mm After-sales Service Provided: 1 Year
Spindle Motor: 18.5kw

Product Description

Products Description

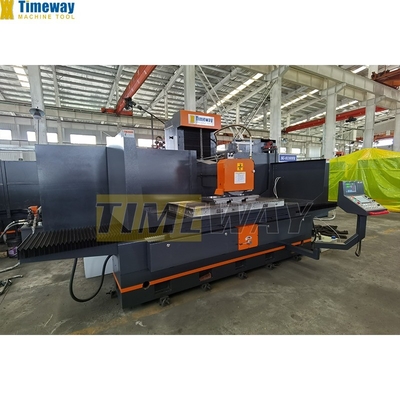

CNC Column Moving Surface Grinder Grinding Machine PLC
SG Series CNC Column Moving Surface Grinder Grinding Machine with Grinding Technology 0
Features:
* Double walled column construction, providing high rigid support. Adopt counterweight balance, making the machine moving stably, and reducing the load of the ball screw, keeping the accuracy for long time.
* High rigidity rectangular guideway is designed on vertical motion, and coat with Turcite-B belt, to get low fricion coefficien.
* Adopt the Flat-V type guideway on longitudinal and transverse to set good guidance quality,precision scraping to keep stable work accuracy by hand.
* The transverse and vertical movement are driven by AC servo motor, and the electronic hand
wheel(MPG) instead of the tradition mechanical hand wheel, to get high accuracy and easy operation.
* Adopt SIEMENS 7 inch LCD-TFT colourful touch screen, built in program of our engineer's genius
designation to make the operation very simple and convenient for the opeator.
* Well designed machine bed is one high grade casting iron, which ensure heavy duty cutting.
* Strengthen ribs are set inside of the rear slide base, make sure great stability support for spindle.
* Super great power spindle unit is most important to the machine. It is really an elaboration under well designed, and our ultimate goal is to balance high rigidity and great accuracy.
Specification
Specification
Unit
SG-100220FR
SG-100300FR
SG-100400FR
Table size
mm
1000x2200
1000x3000
1000x4000
Grinding area
mm
1000x2200
1000x3000
1000x4000
Grinding height
mm
670(830/1000)
670(830/1000)
670(830/1000)
Electro magnetic chuck size (pcs.)
mm
1000x1000x2
1000x1000x3
1000x1000x4
Loading capacity (include chuck)
kg
4000
5000
5000
Table longitudinal feed speed
m/min
5-25
5-25
5-25
Column cross intermittent feed rate
mm/str
1-30
1-30
1-30
Column cross continuous feed speed
mm/min
50-2000
50-2000
50-2000
Column cross feed rate (MPG)
mm/gra
0.005
0.005
0.005
Wheelhead vertical intermittent feed rate
mm/str
0.005-0.05
0.005-0.05
0.005-0.05
Wheelhead vertical continuous feed speed
mm/min
50-2000
50-2000
50-2000
Wheelhead vertical feed rate (MPG)
mm/gra
0.005
0.005
0.005
Spindle speed (50/60HZ)
rpm
960/1150 (OP: 1450)
960/1150 (OP: 1450)
960/1150 (OP: 1450)
Grinding wheel size
mm
Φ500x75xΦ305 (Φ500x100xΦ203)
Φ500x75xΦ305 (Φ500x100xΦ203)
Φ500x75xΦ305 (Φ500x100xΦ203)
Main motor power
kw
18.5/22
18.5/22
18.5/22
Hydraulic motor power
kw
7.5
11
15
Y/Z-axis servo motor power
kw
3
3
3
Total power
kw
37
41
41
Machine dimensions (LxWxH)
mm
6000x4300x2600
8200x4300x2600
10000x4300x2600
Machine weight
kg
14000
15500
19500
Accessories

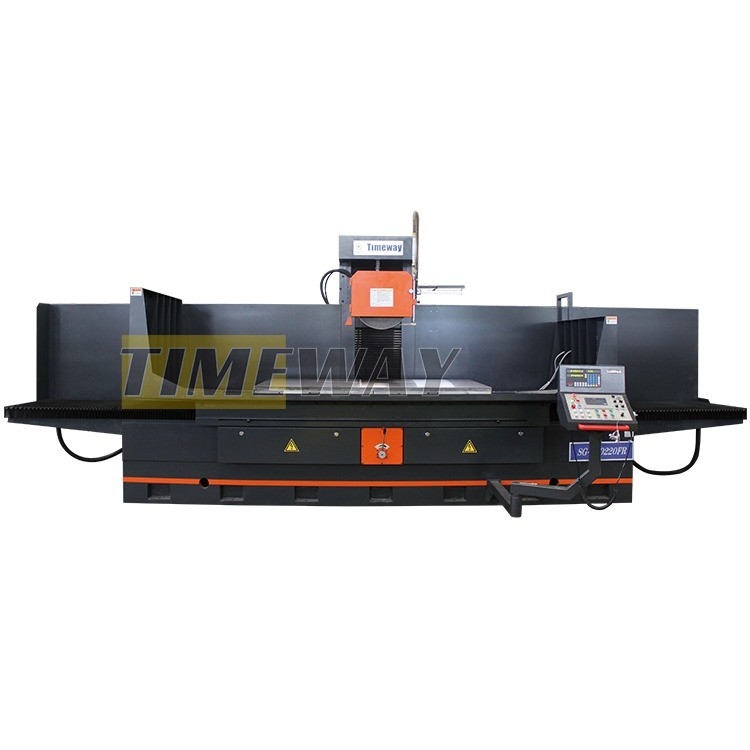

SG Series CNC Column Moving Surface Grinder Grinding Machine with Grinding Technology 1
        - PLC+SMART auto. grinding controller
        - Coolant tank
        - Work lamp
        - Balancing arbor
        - Wheel flange and extractor
        - Wheel dresser stand
        - Y/Z axis electrical wheel(MPG)
        - Operation manual (English edition)
        - Splashing guard
        - Standard grinding wheel
        - Leveling wedge and boltd
        - Tools & tool-box
        - Operation manual(English edition)
      - Balancing stand
      - Magnetic separator
      - Paper filter
      - Oil tank guard
      - Electrical magnetic chuck
      - Built-in magnetic chuck controller
      - Parallel wheel dresser
      - 2 axis digital readout
      - Extra wheel flange
Detailed Images

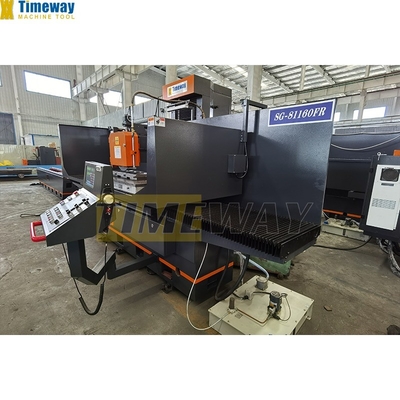

SG Series CNC Column Moving Surface Grinder Grinding Machine with Grinding Technology 2

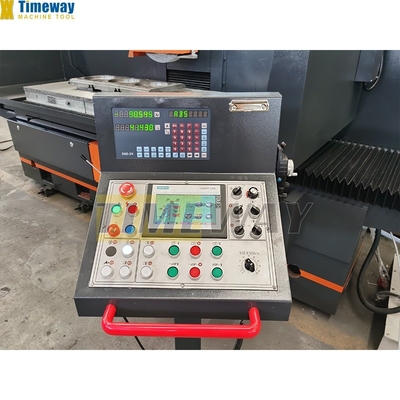

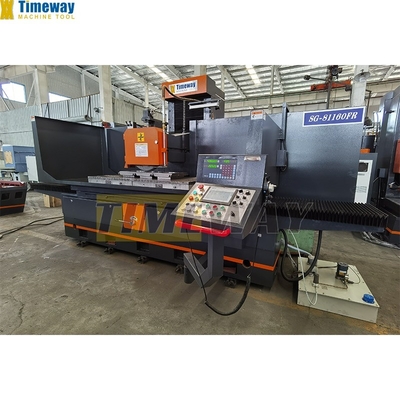

Adopt SIEMENS 7 inch LCD-TFT colourful touch screen, built in program of our engineer's genius designation to make the operation very simple and convenient for the opeator.
SG Series CNC Column Moving Surface Grinder Grinding Machine with Grinding Technology 3

The transverse and vertical movement are driven by AC servo motor, and the electronic
hand wheel(MPG) instead of the tradition mechanical hand wheel, to get high accuracy
and easy operation.

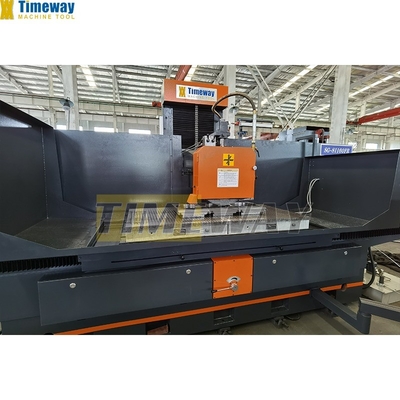

SG Series CNC Column Moving Surface Grinder Grinding Machine with Grinding Technology 4

Double walled column construction,providing high rigid support. Adopt counterweight balance, making the machine moving stably, and reducing the load of the ball screw, keeping the accuracy for long time.
SG Series CNC Column Moving Surface Grinder Grinding Machine with Grinding Technology 5

Well designed machine bed is one high grade casting iron, which ensure heavy duty cutting.The machine bed and rear slide bed are assembled to one piece, to supply super strong base for efficient working.
SG Series CNC Column Moving Surface Grinder Grinding Machine with Grinding Technology 6
The wheelhead spindle use the hydrostatic bearing with high rigidity(high precision ball bearing for export), which can provide the power force together with 18.5kw motor, suitable for the heavy machining.
SG Series CNC Column Moving Surface Grinder Grinding Machine with Grinding Technology 7
The machine bed and rear slide bed are assembled to one piece,to supply super strong base for efficient working.
SG Series CNC Column Moving Surface Grinder Grinding Machine with Grinding Technology 8
The independent and large capacity integrated hydraulic station equipped with air cooling and pressurizer, isolate heat and
vibroseis, to provide excellent power for precision grinding.
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
