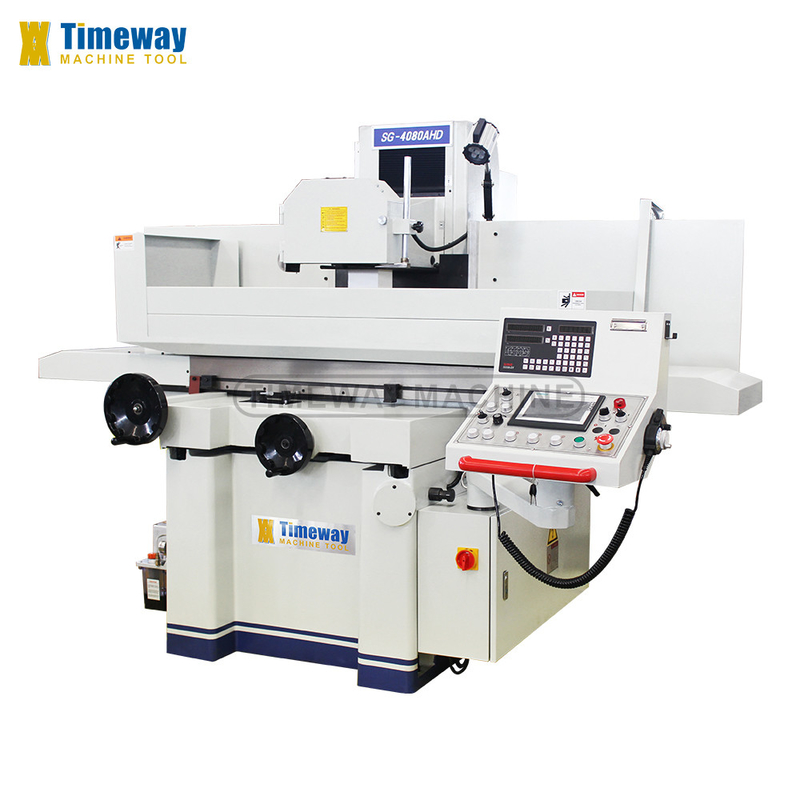

Saddle Moving Type Surface Grinder SG-4080AHD with Grinding Wheel Size of 350x40x127mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $19,800.00/sets 1-2 sets |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 580 | Surface Roughness(μm): | 0.32 μm |
| Table Size(mm): | 406x813 | Year: | 2024 |
| Dimension(L*W*H): | 360x240x190mm | Weight (KG): | 3400 |
| Power (kW): | 4 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | India, Indonesia, Germany, Japan, Australia, Egypt, South Africa, South Korea, Russia, Colombia, Italy, Chile, Algeria, United States |
| Marketing Type: | New Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Pump, PLC | Applicable Industries: | Manufacturing Plant, Energy & Mining, Construction Works , Machinery Repair Shops, Building Material Shops, Food & Beverage Factory |
| Type: | Surface Grinding Machine | Product Name: | Saddle Moving Type Surface Grinder |
| Table Size: | 406x813mm | Electro Magnetic Chuck Size: | 400x800mm |
| Distance From Spindle To Table: | 580mm | Table Cross Travel: | 450mm |
| Table Longitudinal Travel: | 910mm | Grinding Wheel Size: | 350x40x127mm |
| Main Motor Power: | 4kw | Machine Weight: | 3400kg |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:
Working lamp,
Balancing arbor,
Standard grinding wheel,
Magnetic chuck,
Built-in magnetic chuck controller,
Coolant tank,
Wheel flange and extractor,
Wheel dresser stand,
Lubrication system,
Tool box & tools,
Leveling wedge and screw,
Operation manual (English edition).
OPTIONAL ACCESSORIES:
Diamond pen,
Balancing stand,
2 axis digital readout,
Extra wheel flange,
Rear splashing guard,
Closed safe guard,
Oil tank guard,
Dust exhaust,
Dust exhaust,
Parallel wheel dresser,
Radius dresser,
Angle dresser,
Side dresser,
Sinusoidal magnetic table,
Electronic handwheel,
Magnetic separator,
Magnetic separator,
Paper filter.
Specification
SPECIFICATION | UNIT | SG-4080AHD |
Table size | mm | 406x813 |
Electro magnetic chuck size | mm | 400x800 |
Distance from spindle to table | mm | 580 |
Table cross travel | mm | 450 |
Table longitudinal travel | mm | 910 |
Loading capacity (include chuck) | kg | 500 |
Longitudinal feed speed | m/min | 5-25 |
Table cross intermittent feed rate | mm/str | 0.1-8 |
Table cross rapid feed speed | mm/min | 990 |
Table cross feed of handwheel | mm/gra | 0.02 |
Wheelhead vertical intermittent feed rate | mm/str | 0.005-0.5 |
Wheelhead vertical rapid feed speed | mm/min | 480 |
Wheelhead vertical feed of handwheel | mm/gra | 0.005 |
Spindle speed (50/60HZ) | rpm | 1450/1750 |
Grinding wheel size | mm | 350x40x127 |
Main motor power | kw | 4 |
Machine dimensions (LxWxH) | cm | 360x240x190 |
Package dimensions (LxWxH) | cm | 285x227x221 |
Machine weight | kg | 3400 |
