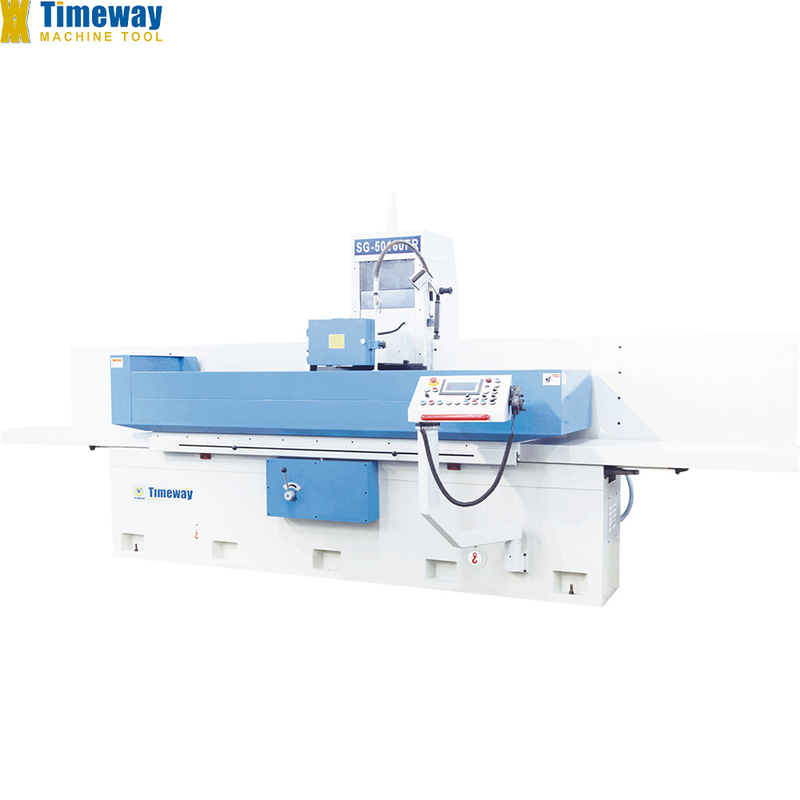

High Precision SG-50160FR Column Moving Type Surface Grinder for Your Manufacturing
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $23,900.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Grinding Length(mm): | 600 |
|---|---|---|---|
| Surface Roughness(μm): | 00 μm | Weight (KG): | 6000 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Showroom Location: | India, Indonesia, Germany, Mexico, Australia, Viet Nam, Canada, Malaysia, Philippines, Colombia, Thailand, Italy, Chile, Algeria, United States | Marketing Type: | New Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Engine |
| Applicable Industries: | Manufacturing Plant, Energy & Mining, Garment Shops, Machinery Repair Shops, Building Material Shops, Food & Beverage Factory | Product Name: | Surface Grinder Grinding Machine |
| Precision: | High Precision | Application: | Metal Processing |
| Table Size: | 500x1600mm | Grinding Area: | 500x1600mm |
| Electro Magnetic Chuck Size (pcs.): | 500x800x2 | Max. Loading Capacity (include Chuck): | 900kg |
| Grinding Wheel Size: | 350x40x127mm | Main Motor Power: | 7.5kw |
| Machine Weight: | 6000kg | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:
PLC+SMART auto. grinding controller,
Coolant tank,
Work lamp,
Balancing arbor,
Wheel flange and extractor,
Wheel dresser stand,
Wheel dresser stand,
Y/Z axis electrical wheel(MPG),
Splashing guard,
Standard grinding wheel,
Leveling wedge and bolts,
Tools & tool-box,
Operation manual (English edition).
OPTIONAL ACCESSORIES:
Balancing stand,
Magnetic separator,
Paper filter,
Oil tank guard,
Electrical magnetic chuck,
Built-in magnetic chuck controller,
Parallel wheel dresser,
2 axis digital readout,
Extra wheel flange.
Specification
SPECIFICATION | UNIT | SG-50160FR |
Table size | mm | 500x1600 |
Grinding area | mm | 500x1600 |
Distance from spindle to table | mm | 600 |
Electro magnetic chuck size (pcs.) | mm | 500x800x2 |
Max. loading capacity (include chuck) | kg | 900 |
Table longitudinal feed speed | m/min | 5-25 |
Cross intermittent feed rate | mm/str | 0-30 |
Cross continuous feed speed | mm/min | 0-1500 |
Cross feed rate (MPG) | mm/gra | 0.005 |
Vertical intermittent feed rate | mm/str | 0.005-0.05 |
Vertical continuous feed speed | mm/min | 0-600 |
Vertical feed rate (MPG) | mm/gra | 0.005 |
Grinding wheel size | mm | 350x40x127 |
Main motor power | kw | 7.5 |
Package dimensions (LxWxH) | mm | 5640x2250x2500 |
Machine weight | kg | 6000 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
