High Precision G-200H and UG-200H Cylindrical Grinding Machine with 5.625kw Motor Power
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $21,900.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Other | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Year: | 2024 |
| Dimension(L*W*H): | 2500 (3000) X1600x1500 | Weight (KG): | 2500 |
| Power (kW): | 5.625 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | Romania, Viet Nam, Kenya, Australia, Japan, South Africa, Spain, Malaysia, Canada, Kyrgyzstan, Italy, Thailand, Philippines, United Kingdom, Indonesia |
| Applicable Industries: | Construction Works , Energy & Mining, Machinery Repair Shops, Building Material Shops | Marketing Type: | Hot Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Engine |
| Product Name: | Grinding Machine | Name: | Cylindrical Grinder |
| Function: | Grinding Material | Machine Type: | Manual |
| Precision: | High Precision Machine | Application: | Metal Processing |
| Advantage: | High Efficiency Easy Operate | Color: | Customized Optional |
| Overall Dimension: | 2500 (3000) X1600x1500mm | Machine Motor Power: | 5.625kw |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description

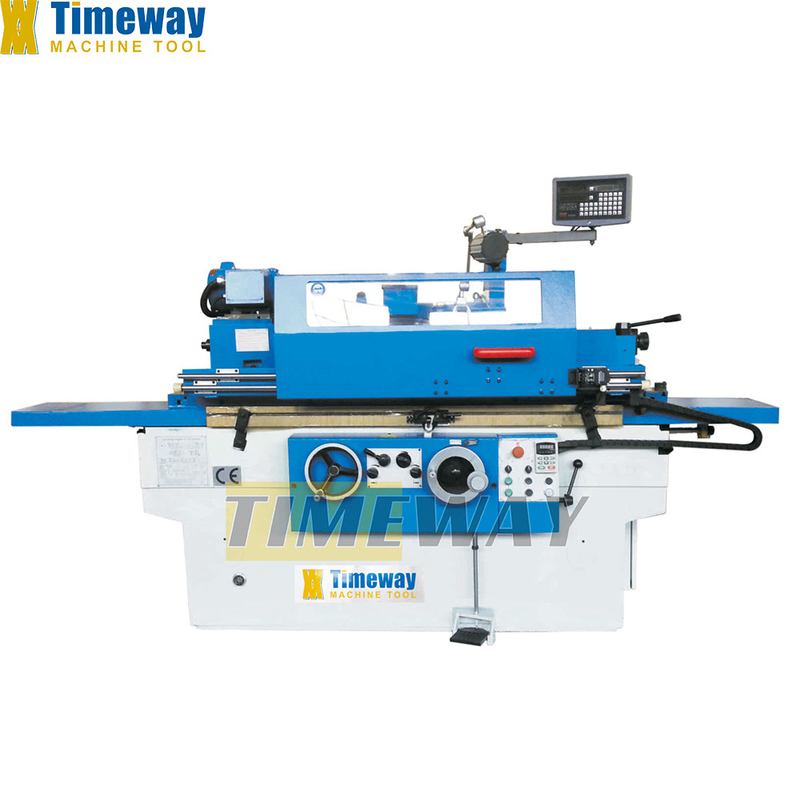

ylindrical Grinder G-200H, UG-200H

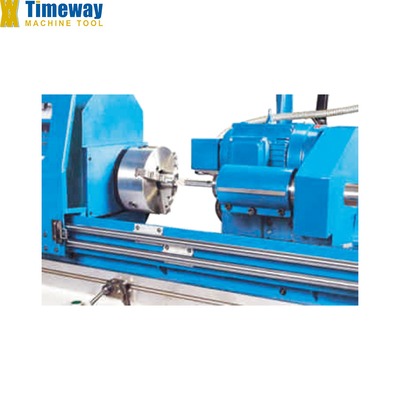

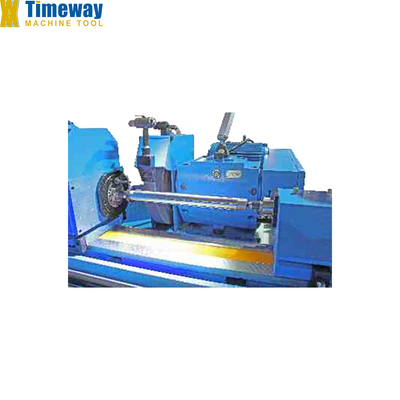

G-200H and UG-200H cylindrical grinding machine is suitable for outside grinding operations up to 200 mm in diameter. UG-200H comes complete with an inside grinding device to increase the application range significantly. Most commonly this model is used in machine construction, tool and mould shaping and in the production of small series.
STANDARD ACCESSORIES:
Grinding wheel,
Grinding wheel flange,
Three jaw chuck (UG),
Driving dog,
Arbor for internal grinding (UG),
Grinding wheel dresser,
Wheel balancing arbor,
Open type steady rest,
Dead centers,
Frequency inverter,
Coolant system,
Work lamp,
Leveling wedge,
Operation manual (English edition).
OPTIONAL ACCESSORIES:
Wheel balancing stand,
Radius dresser,
Close type center rest,
Digital readout,
Paper filter,
Magnetic separator.
Specification
SPECIFICATION | UNIT | G-200H | UG-200H | |
Dia. ground (O.D) | mm | 8~200 | 8~200 | |
Dia. ground (I.D) | mm | - | 13-100 | |
Center height | mm | 135 | 135 | |
Workhead spindle speed | rpm | 25~380 | 25~380 | |
Max. table travel | mm | 650 (950) | 650 (950) | |
Table hydraulic feed speed | m/min | 0.1~4 | 0.1~4 | |
Loading capacity | kg | 50 | 50 | |
Grinding length (O.D/I.D) | mm | 500/- (800/-) | 500/125 (800/125) | |
Table swivel angle | ° | -5~+9° (-3~+7°) | -5~+9° (-3~+7°) | |
Max. peripheral speed of grinding wheel | m/s | 38 | 38 | |
External wheel size | mm | Max: Ф400x50xФ203; Min: Ф280x50xФ203 | ||
Internal grinding spindle speed | rpm | - | 16000 | |
Workhead and tailstock center | - | MT4 | MT4 | |
Machine motor power | kw | 5.625 | 5.625 | |
Roundness (O.D/I.D) | um | 1.5 | 1.5/2.5 | |
Roughness (O.D/I.D) | um | Ra0.32 | Ra0.32 | |
Unifomity of dia.in longitudinal section (O.D/I.D) | um | 5 | 5/8 | |
Machine dimemsions (LxWxH) | mm | 2500 (3000) x1600x1500 | ||
Machine weight | kg | 2500 (3000) | 2500 (3000) | |
