G-500/UG-500 Cylindrical Grinding Machine The Ultimate Solution for Metal Processing
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $24,600.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Other | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Year: | 2024 |
| Dimension(L*W*H): | 5430/5830/7960/9960x2250x2100mm | Weight (KG): | 10000 |
| Power (kW): | 4 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | India, Romania, Viet Nam, Kenya, Australia, Japan, South Africa, Malaysia, Canada, Kyrgyzstan, Italy, Thailand, Philippines, Indonesia |
| Applicable Industries: | Construction Works , Energy & Mining, Machinery Repair Shops, Building Material Shops | Marketing Type: | Hot Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Engine |
| Product Name: | Grinding Machine | Name: | Cylindrical Grinder |
| Function: | Grinding Material | Machine Type: | Manual |
| Precision: | High Precision Machine | Application: | Metal Processing |
| Advantage: | High Efficiency Easy Operate | Color: | Customized Optional |
| Distance Between Centers: | 1500/2000/3000/4000mm | Center Height: | 270mm |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description

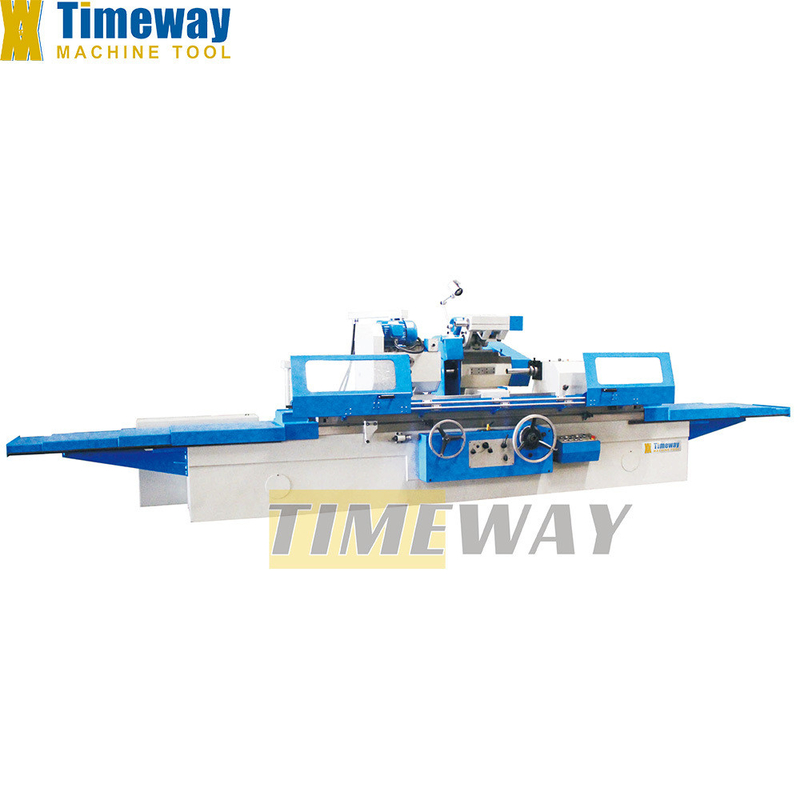

Cylindrical Grinder G-500, UG-500

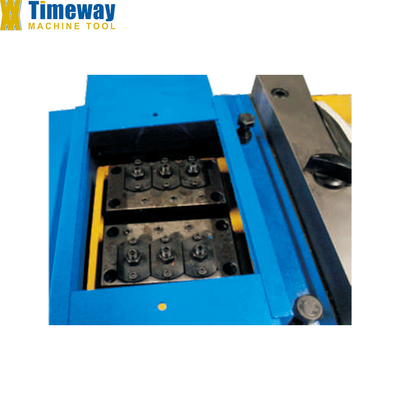

The worktable and wheelhead guideway adopt hydrostatic lubrication, its movement on low speed is smooth.

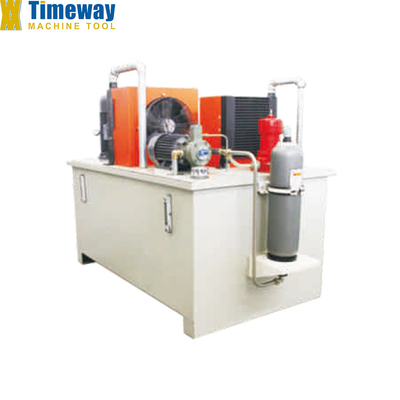

Wheel head spindle is supported by hydrostatic and hydrodynamic bearings of high rigidity, it makes the spindle have high rotary accuracy and perfect rigidity.

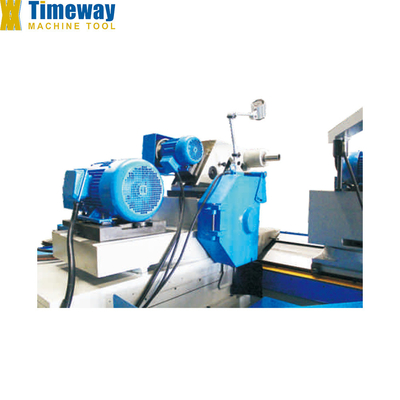

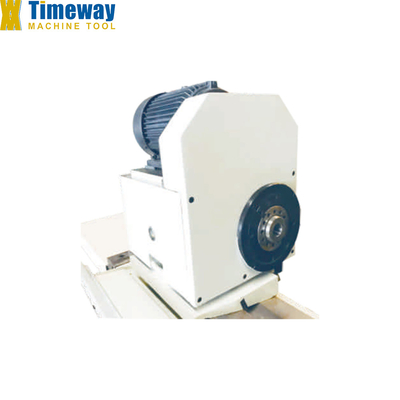

For UG-500, spindle of workhead adopts sliding bearing structure. the clearance of the front bearing can be adiusted to make it suitable for the grinding use center or chuck.
Wheel head spindle is supported by hydrostatic and hydrodynamic bearings of high rigidity, it makes the spindle have high rotary accuracy and perfect rigidity.
For UG-500, spindle of workhead adopts sliding bearing structure. the clearance of the front bearing can be adiusted to make it suitable for the grinding use center or chuck.
STANDARD ACCESSORIES:
Measuring bridge plate,
Open steady rest,
Wheel flange,
Wheel extractor,
Balancing arbor,
Grinding wheel,
Coolant tank,
Carbide tripped center,
Driving dog,
Driving dog,
Wheel dresser (Without diamond pen),
Work lamp,

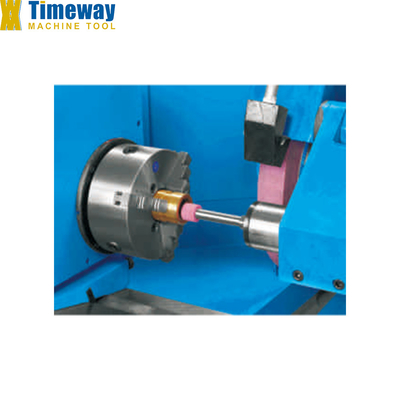

Internal grinding attachment (UG),
3-jaw chuck (UG),
Extension shaft(UG),
Internal grinding wheel (UG),
Full set tools,
Leveling wedge,
Operation manual (English edition).
OPTIONAL ACCESSORIES:
Balancing stand,
Digital readout,
Close steady rest,
End wheel dresser,
Radius wheel dresser,
Center grinding attachment (G),
Magnetic separator,
Paper filter.
Magnetic separator,
Paper filter.
Specification
SPECIFICATION | UNIT | G-500 | UG-500 | |
Distance between centers | mm | 1500/2000/3000/4000 | 1500/2000/3000/4000 | |
Center height | mm | 270 | 270 | |
Dia. ground (O.D) | mm | 25-500 | 25-500 | |
Dia. ground (I.D) | mm | - | 30-200 | |
Grinding length (O.D) | mm | 1500/2000/3000/4000 | 1500/2000/3000/4000 | |
Grinding length (I.D) | mm | - | 320 | |
Loading capacity | kg | 2000 | 1000 | |
Workhead swivel angle | ° | - | 90° | |
Workhead spindle taper | - | MT6 | MT6 | |
Workhead spindle speed | rpm | 10-100 (stepless) | 20-224 (stepless) | |
Wheelhead feed of handwheel per rev. (rough/fine) | mm | 4/0.5 | 4/0.5 | |
Wheelhead feed of handwheel per gra. (rough/fine) | mm | 0.02/0.0025 | 0.02/0.0025 | |
External grinding wheel size | mm | 750x75x305 | 500x75x305 | |
Max. peripheral speed of grinding wheel | m/s | 35 | 35 | |
Internal grinding spindle speed | rpm | - | 10000 | |
Internal grinding wheel size | mm | - | 175x32x32 | |
Table feed of handwheel per rev. | mm | 5 | 5 | |
Table swivel angle (CW) | ° | 3° /2°/2° /1° | 3° /2°/2° /1° | |
Table swivel angle (CCW) | ° | 6° /5° /3° /2° | 6° /5° /3° /2° | |
Table longitudinal feed speed | m/min | 0.1-3 | 0.1-3 | |
Tailstock quill taper | - | MT6 | MT6 | |
Tailstock quill travel | mm | 70 | 70 | |
External grinding motor power | kw | 15 | 5/7.5 | |
Internal grinding motor power | kw | - | 1.5 | |
Workhead motor power | kw | 4 | 4 | |
Roundness | um | 2.5/3/3/3 | 2.5/3/3/3 | |
Cylindricity | um | 8/8/8/12 | 8/8/8/12 | |
Roughness | um | Ra0.32 | Ra0.32 | |
Gross weight | kg | 10/11/13/17 | 10/11/13/17 | |
Packing size (LxWxH) | mm | 5430/5830/7960/9960x2250x2100 | ||
