10.825kw Total Power GK-200H and UGK-200H CNC Cylindrical Grinding Machine for Results
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $21,900.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Other | CNC Or Not: | CNC |
|---|---|---|---|
| Condition: | New | Year: | 2024 |
| Weight (KG): | 2500 | Power (kW): | 10.825 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Showroom Location: | Romania, Viet Nam, Kenya, Australia, Japan, South Africa, Spain, Malaysia, Canada, Kyrgyzstan, Italy, Thailand, Philippines, United Kingdom, Indonesia | Applicable Industries: | Construction Works , Energy & Mining, Machinery Repair Shops, Building Material Shops |
| Marketing Type: | Hot Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Engine | Product Name: | Grinding Machine |
| Name: | Cylindrical Grinder | Function: | Grinding Material |
| Machine Type: | Cnc Control | Precision: | High Precision Machine |
| Application: | Metal Processing | Advantage: | High Efficiency Easy Operate |
| Color: | Customized Optional | Total Power: | 10.825kw |
| Cross Servo Motor Power: | 1.6 (6N.m)kw | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description

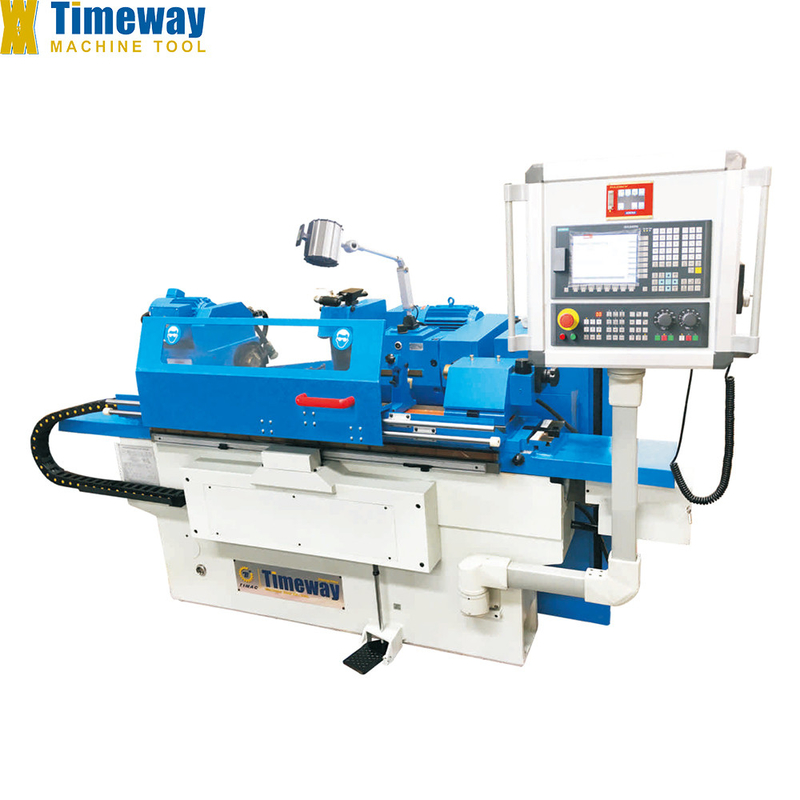

Cylindrical Grinder GK-200H, UGK-200H

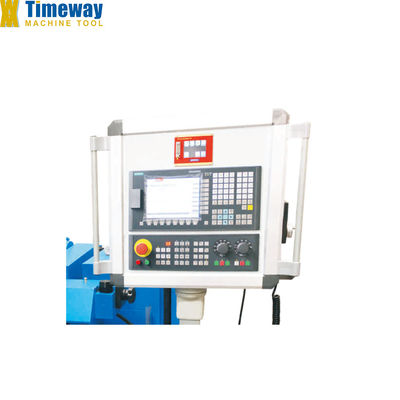

The machine tool standard adopts German SIEMENS CNC system, and the executive system is driven by the CNC servo driver and servo motor.
Worktable longitudinal travel (Z) and wheelhead cross travel (X) which with the high infeed accuracy are realized by the servo motors driven the ball screw transmission.
By setting the parameter of longitudinal grinding or plunge grinding by CNC control panel, an auto-grinding for the different workpiece is realized.
This machine can automatically grind multiple steps of a workpiece. The multi-step can be arbitrarily arranged for longitudinal grinding and cutting into grinding sequence and grinding process parameters.
CNC control system with the function of wheel dressing and compensation automatically.
Worktable longitudinal travel (Z) and wheelhead cross travel (X) which with the high infeed accuracy are realized by the servo motors driven the ball screw transmission.
By setting the parameter of longitudinal grinding or plunge grinding by CNC control panel, an auto-grinding for the different workpiece is realized.
This machine can automatically grind multiple steps of a workpiece. The multi-step can be arbitrarily arranged for longitudinal grinding and cutting into grinding sequence and grinding process parameters.
CNC control system with the function of wheel dressing and compensation automatically.
STANDARD ACCESSORIES:
Grinding wheel,
Grinding wheel flange,
Three jaw chuck (UG),
Driving dog,
Arbor for internal grinding (UG),
Grinding wheel dresser,
Wheel balancing arbor,
Open type steady rest,
Dead centers,
Frequency inverter,
Coolant system,
Work lamp,
Leveling wedge,
Operation manual (English edition).
OPTIONAL ACCESSORIES:
Wheel balancing stand,
Radius dresser,
Close type center rest,
Digital readout,
Paper filter,
Magnetic separator.
Specification
SPECIFICATION | UNIT | GK-200H | UGK-200H | |
Dia. ground (O.D) | mm | 8~200 | 8~200 | |
Grinding length (O.D) | mm | 500/800 | 500/800 | |
Center height | mm | 135 | 135 | |
Distance between centers | mm | 550/850 | 550/850 | |
Headstock center | - | MT4 | MT4 | |
Tailstock center | - | MT4 | MT4 | |
Loading capacity | kg | 50 | 50 | |
Grinding wheel size | mm | Ф400x50xФ203 | Ф400x50xФ203 | |
Max. peripheral speed of grinding wheel | m/s | 38 (hydrodynamic-hydrostatic 45m/s) | -5~+9° (-3~+7°) | |
Grinding spindle speed | rpm | 2130 | 2130 | |
Internal grinding spindle speed | rpm | - | 16000 | |
Dia. ground (I.D) | mm | - | 13-100 | |
X-axis min. feed unit | mm | 0.001 | 0.001 | |
Z-axis min. feed unit | mm | 0.001 | 0.001 | |
Total power | kw | 10.825 | 10.825 | |
Longitudinal servo motor power | kw | 1.6 (6N.m) | 1.6 (6N.m) | |
Cross servo motor power | kw | 1.6 (6N.m) | 1.6 (6N.m) | |
Roundness | um | 1.5 | 1.5 | |
Roundness | um | Ra0.32 | Ra0.32 | |
Unifomity of dia.in longitudinal section | um | 5 | 5 | |
