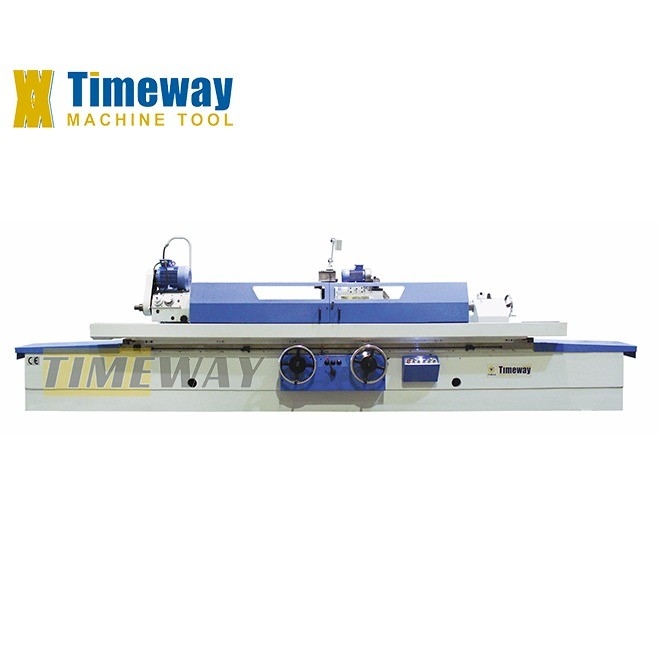

UG500 Cylindrical Grinder High Rigidity Grinding Machine for CNC or Normal Applications
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Grinding Diameter(Outer)(mm): | 500 | Grinding Diameter(Inner)(mm): | 200 |
|---|---|---|---|
| Weight (KG): | 10000 | Key Selling Points: | High Rigidity |
| Warranty: | 1 Year | Showroom Location: | Germany, France, Australia, South Africa, Spain, Russia, Canada, Italy, United Kingdom |
| Applicable Industries: | Manufacturing Plant, Energy & Mining, Construction Works , Machinery Repair Shops, Building Material Shops | Marketing Type: | New Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Other |
| Condition: | New | CNC Or Not: | Normal |
| Type: | Cylindrical Grinding Machine | Product Name: | Cylindrical Grinder Machine |
| Function: | Grinding | Precision: | High Precision |
| After-sales Service Provided: | Online Support | Dia. Ground (O.D): | 25-500mm |
| Dia. Ground (I.D): | 30-200mm | Grinding Length (O.D): | 1500mm |
| Grinding Length (I.D): | 320mm | CNC Or Not: | No |
Product Description
Product Description
Specification
Specification | UG500 |
Distance between centers | 1500mm |
Center height | 270mm |
Dia. ground (O.D) | 25-500mm |
Dia. ground (I.D) | 30-200mm |
Grinding length (O.D) | 1500mm |
Grinding length (I.D) | 320mm |
Loading capacity | 1000kg |
Workhead swivel angle | 90° |
Workhead spindle taper | MT6 |
Workhead spindle speed | 20-224 (stepless)rpm |
Wheelhead feed of handwheel per rev. (rough/fine) | 4mm/rev |
Wheelhead feed of handwheel per gra. (rough/fine) | 0.02mm/gra |
External grinding wheel size | 500x75x305mm |
Max. peripheral speed of grinding wheel | 35m/s |

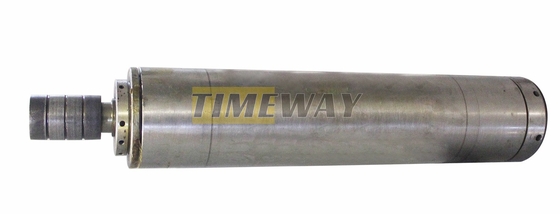

Internal grinding spindle speed | 10000rpm |
Internal grinding wheel size | 175x32x32mm |
Table feed of handwheel per rev. | 5mm |
Table swivel angle (CW) | 3° |
Table swivel angle (CCW) | 6° |
Table longitudinal feed speed | 0.1-3m/min |
Tailstock quill taper | MT6 |
Tailstock quill trave | 70mm |
External grinding motor power | 5/7.5kw |
Internal grinding motor power | 1.5kw |
Workhead motor power | 4kw |
Roundness | 2.5um |
Cylindricity | 8um |
Roughness | Ra0.32um |
Gross weight | 10tons |
Packing size (LxWxH) | 543x225x210mm |
STANDARD ACCESSORIES:
Measuring bridge plate,
Open steady rest,
Wheel flange,
Wheel extractor,
Balancing arbor,
Grinding wheel,
Coolant tank,
Carbide tripped center
OPTIONAL ACCESSORIES:
Balancing stand,
Digital readout,
Close steady rest,
End wheel dresser,
Radius wheel dresser
