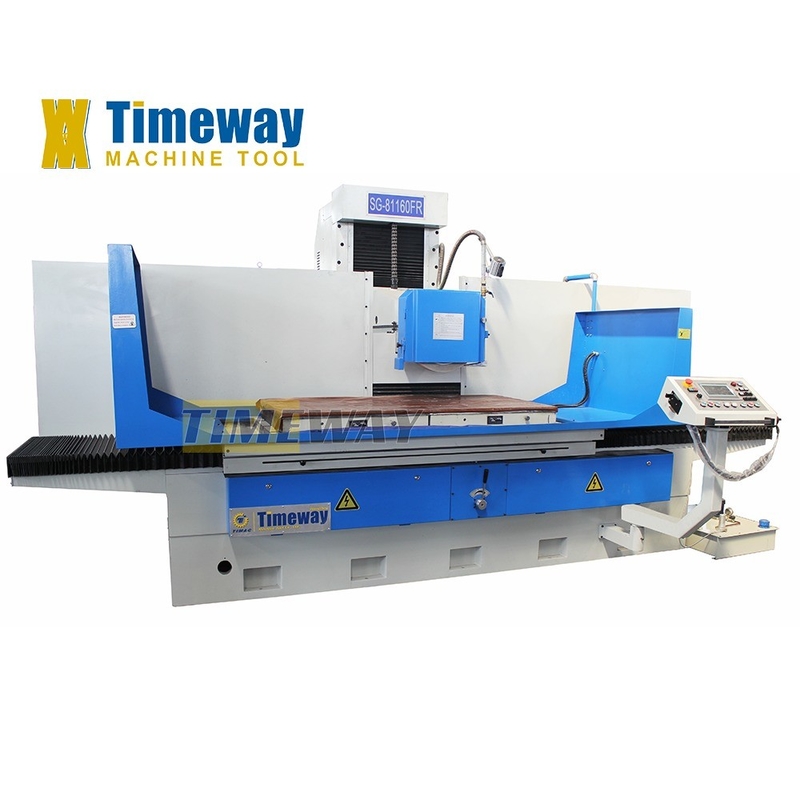

500 75 305mm Grinding Wheel Size Precision Surface Grinder SG-81160FR for Suface Grinding
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,000.00/sets 1-2 sets |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 670 | Surface Roughness(μm): | 0 μm |
| Weight (KG): | 10500 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Showroom Location: | Germany, France, Australia, South Africa, Spain, Canada, Russia, Italy, United Kingdom |
| Marketing Type: | New Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Other | Applicable Industries: | Manufacturing Plant, Energy & Mining, Construction Works , Machinery Repair Shops, Building Material Shops |
| Type: | Surface Grinding Machine | Application: | Suface Grinding |
| CNC Or Not: | No | Table Size: | 810 1600mm |
| Loading Capacity (include Chuck): | 2000kg | Spindle Speed (50/60HZ): | Spindle Speed (50/60HZ)rpm |
| Total Power: | 43kw | Grinding Wheel Size: | 500 75 305mm |
| Grinding Height: | 670mm | Function: | Grinding Material |
Product Description
Product Description
Specification
Specification | SG-81160FR |
Table size | 810x1600mm |
Grinding area | 810x1600mm |
Grinding height | 810x1600mm |
Electro magnetic chuck size (pcs.) | 800x800x2mm |
Loading capacity (include chuck) | 2000kg |
Table longitudinal feed speed | 5-25m/min |
Column cross intermittent feed rate | 1-50mm/str |
Column cross continuous feed speed | 50-2000mm/min |
Column cross feed rate (MPG) | 50-2000mm/gra |
Wheelhead vertical intermittent feed rate | 0.005-0.05mm/str |
Wheelhead vertical continuous feed speed | 50-2000mm/min |
Wheelhead vertical feed rate (MPG) | 0.005mm/gra |
Spindle speed (50/60HZ) | 960/1150rpm |
Spindle speed (50/60HZ) | Φ500x75xΦ305mm |
Main motor power | 18.5kw |

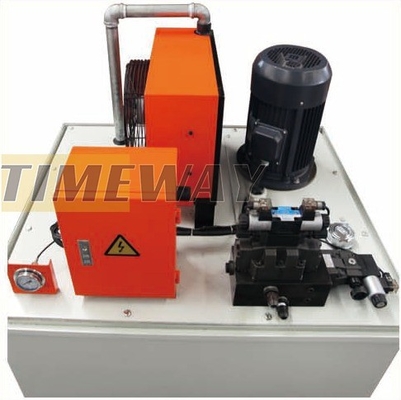

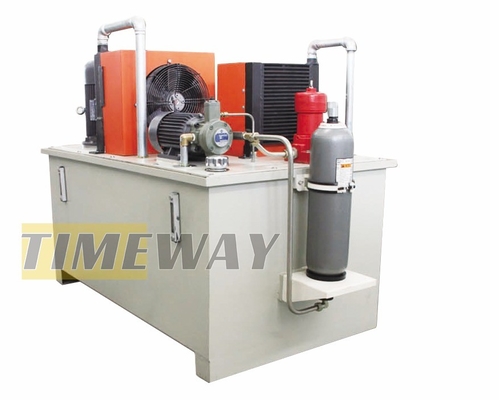

Hydraulic motor power | 7.5kw |
Y/Z-axis servo motor power | 3kw |
Total power | 43kw |
Machine dimensions (LxWxH) | 5300x4450x2500mm |
Machine weight | 10500kg |
STANDARD ACCESSORIES:

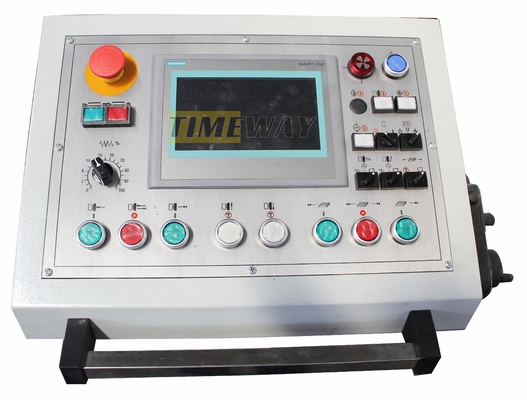

PLC+SMART auto. grinding controller,
Coolant tank,
Work lamp,
Balancing arbor,
Wheel flange and
extractor,
extractor,
Wheel dresser stand,
Y/Z axis electrical wheel(MPG),
etc.
OPTIONAL ACCESSORIES:
Balancing stand,
Magnetic separator,
Paper filter,
Oil tank guard,
Electrical magnetic chuck,
Built-in magnetic chuck controller,
Parallel wheel dresser,
etc.
