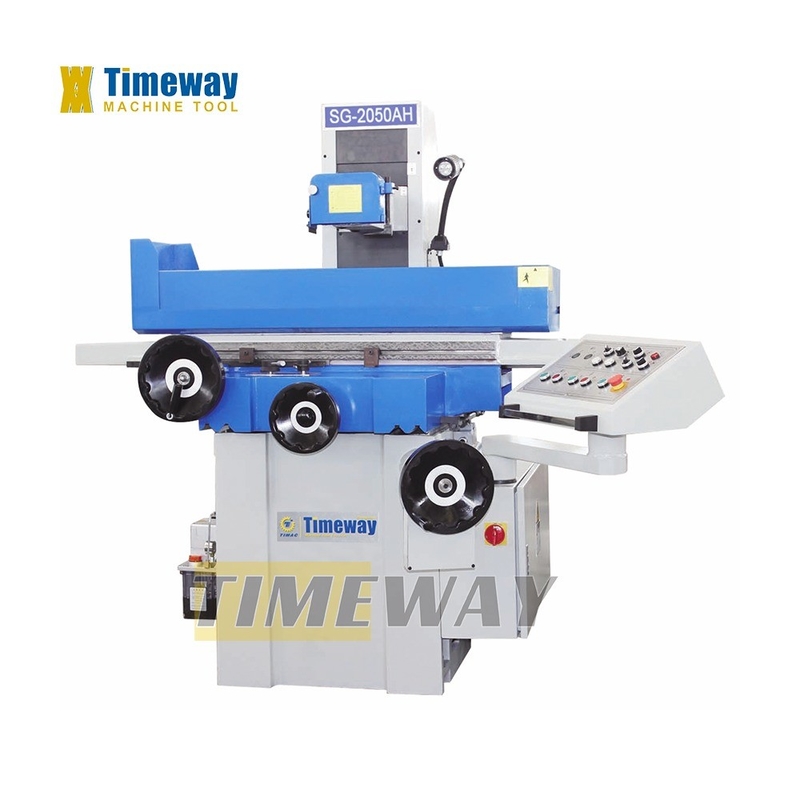

High Precision Saddle Moving Type Surface Grinder SG2050AH for Manufacturing Plant
Product Details:
| Place of Origin: | China |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,666.00/sets 1-2 sets |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 510 | Surface Roughness(μm): | 3.2 μm |
| Table Size(mm): | 200 508mm | Weight (KG): | 1650 |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Showroom Location: | Germany, France, Australia, South Africa, Spain, Canada, Russia, Italy, United Kingdom | Marketing Type: | New Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Other |
| Applicable Industries: | Manufacturing Plant, Energy & Mining, Construction Works , Machinery Repair Shops, Building Material Shops | Type: | Surface Grinder |
| Product Name: | Surface Grinder Grinding Machine | After-sales Service Provided: | Online Support |
| Keywords: | Precision Surface Grinder Machine | Usage: | Surface Grinding |
| Precision: | High Precision | Advantage: | High Precision |
| Table Size: | 200 508mm | Cnc Or Not: | No |
Product Description
Product Description
Specification
Specifications | Unit | SG-2050AH |
Table size | mm | 200x508 |
Magnetic chuck size | mm | 200x460 |
Distance from spindle center to table | mm | 450 |
Table cross travel | mm | 240 |
Table longitudinal travel | mm | 560 |
Max. loading capacity(include chuck) | kg | 180 |
Longitudinal feed speed | m/min | 5-25 |
Table cross intermittent feed rate | mm/str | 0.1-8 |
Table cross rapid feed speed | mm/min | 990 |
Table cross feed of handwheel | mm/gra | 0.02 |
Wheelhead vertical rapid feed speed | mm/min | - |
Feed of handwheel | mm/gra | 0.005 |
Spindle speed(50/60HZ) | rpm | 2850/3450 |
Grinding wheel size | mm | 200x20x31.75 |
Spindle motor power | kw | 2.2 |
Machine dimensions(LxWxH) | mm | 2300x1600x1675 |
Package dimensions(LxWxH) | mm | 2000x2100x2150 |
Machine weight | kg | 1650 |
STANDARD ACCESSORIES:
Working lamp, Balancing arbor, Standard grinding wheel, Magnetic chuck, etc
OPTIONAL ACCESSORIES:
Diamond pen, Balancing stand, 2 axis digital readout, Extra wheel flange, etc.
