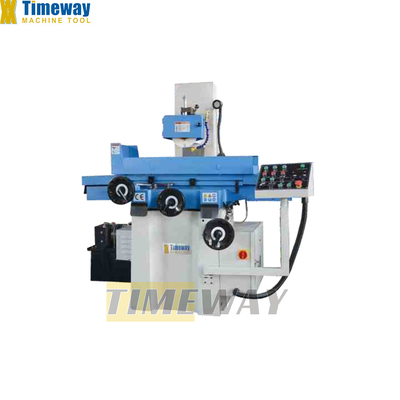

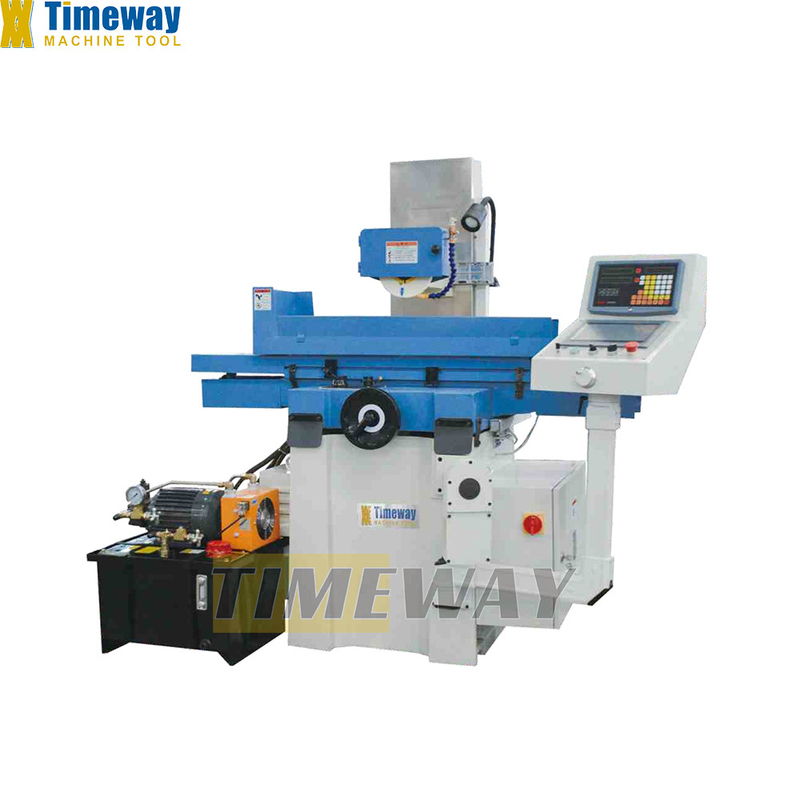

KGS-2050AH KGS-2050AHR KGS-2050AHD Saddle Moving Type Surface Grinder for Normal CNC
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,800.00/sets 1-2 sets |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 450 | Surface Roughness(μm): | 0.32 μm |
| Table Size(mm): | 480x200mm | Table Travel (X) (mm): | 520 |
| Table Travel (Y) (mm): | 220 | Year: | 2024 |
| Dimension(L*W*H): | 1680x1140x1720 | Weight (KG): | 1050 |
| Power (kW): | 1.5 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | India, Indonesia, Germany, Japan, Australia, Romania, Egypt, Russia, Thailand, Tajikistan, Italy, Algeria, United States |
| Marketing Type: | New Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Engine, Gear | Applicable Industries: | Energy & Mining, Construction Works , Machinery Repair Shops, Building Material Shops |
| Product Name: | Surface Grinder Grinding Machine | Application: | Metal Processing |
| Table Size: | 480x200mm | Table Travel (X/Y): | 520x220mm |
| Max. Grinding Area: | 520x200mm | Distance From Spindle To Table: | 450mm |
| Grinding Wheel Size: | 200x20x31.75mm | Main Motor Power: | 1.5kw |
| Spindle Speed: | 2800rpm | Surface Roughness: | Ra0.32um |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
Economical / AH / AHR / AHD
1. Saddle makes cross movement driven by AC motor, work table make reversing movement driven by hydraulic, and spindle make elevating movement and is driven by manual (AH series), AC motor (AHR
series), or AC servo motor (AHD series).
2. KGS-AH: auto feed on cross, hydraulic transmission on longitudinal, manual on vertical.
3. KGS-AHR: auto feed on cross, hydraulic transmission on longitudinal, rapid movement on vertical.
4. KGS-AHD: auto feed on cross, hydraulic transmission on longitudinal, auto feed on vertical.
series), or AC servo motor (AHD series).
2. KGS-AH: auto feed on cross, hydraulic transmission on longitudinal, manual on vertical.
3. KGS-AHR: auto feed on cross, hydraulic transmission on longitudinal, rapid movement on vertical.
4. KGS-AHD: auto feed on cross, hydraulic transmission on longitudinal, auto feed on vertical.
STANDARD ACCESSORIES:
Magnetic chuck
Balancing arbor
Wheel flange
Grinding wheel
Wheel extractor
Wheel dresser stand
Work lamp
Coolant tank
Tools & tool-box
Leveling wedges and bolts
Operation manual(Enalish)
Balancing arbor
Wheel flange
Grinding wheel
Wheel extractor
Wheel dresser stand
Work lamp
Coolant tank
Tools & tool-box
Leveling wedges and bolts
Operation manual(Enalish)
OPTIONAL ACCESSORIES:
Parallel wheel dresser
Digital readout
Wheel balancing stand
Dust absorption
Magnetic separator
Paper filter
Build in electro magnetic chuck controller
Digital readout
Wheel balancing stand
Dust absorption
Magnetic separator
Paper filter
Build in electro magnetic chuck controller
Inverter
Specification
SPECIFICATION | UNIT | KGS-2050AH KGS-2050AHR KGS-2050AHD |
Table size | mm | 480x200 |
Table travel (X/Y) | mm | 520x220 |
Max. grinding area | mm | 520x200 |
Distance from spindle center to table | mm | 450 |
T-slots (wide/number) | mm | 14x1 |
Permanent magnetic chuck size | mm | 400x200 |
Table longitudinal speed (stepless) | m/min | 3-20 |
Cross feed -Continuous | mm/min | 150 |
Cross feed -Intermittent | mm/time | 0-5 |
Cross feed handwheel-Revolution -Graduation | mm | 2.5/0.02 |
Vertical min. feed handwheel-Revolution -Graduation | mm | AH: 1.25/0.01; AHR: 1.25/0.01; AHD: 0.1/0.001; |
Grinding wheel size | mm | 200x20x31.75 |
Spindle speed | rpm | 2800 |
Main motor power | kw | 1.5 |
Cooling pump power | kw | 0.04 |
Hydraulic motor power | kw | 1.5 |
Cross feed motor power | kw | 0.04 |
Lifting motor power | kw | AH: -; AHR: 0.25; AHD: (servo) 0.75; |
Oil tank capacity | L | 60 |
Surface parallelism | mm | 0.005/300 |
Surface roughness | um | Ra0.32 |
Net weight/Gross weight | kg | 1050/1150 |
Packing size(LxWxH) | mm | 1680x1140x1720 |
