Saddle Surface Grinder Machine SG-2550AH/AHR/AHD with 0.32 μm Surface Roughness in 2024
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $19,000.00/sets 1-2 sets |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 450 | Surface Roughness(μm): | 0.32 μm |
| Table Size(mm): | 254x508 | Table Travel (X) (mm): | 275 |
| Table Travel (Y) (mm): | 560 | Year: | 2024 |
| Dimension(L*W*H): | 2300x1600x1680mm | Weight (KG): | 1800 |
| Power (kW): | 2.2 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | India, Indonesia, Germany, Japan, Australia, Egypt, South Africa, South Korea, Russia, Colombia, Italy, Chile, Algeria, United States |
| Marketing Type: | New Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Pump, PLC | Applicable Industries: | Manufacturing Plant, Energy & Mining, Construction Works , Machinery Repair Shops, Building Material Shops |
| Type: | Surface Grinding Machine | Product Name: | Saddle Moving Type Surface Grinder |
| Table Size: | 254x508mm | Electro Magnetic Chuck Size: | 250x500mm |
| Distance From Spindle To Table: | 450mm | Table Cross Travel: | 275mm |
| Table Longitudinal Travel: | 560mm | Grinding Wheel Size: | 200x20x31.75mm |
| Main Motor Power: | 2.2kw | Machine Weight: | 1800kg |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description

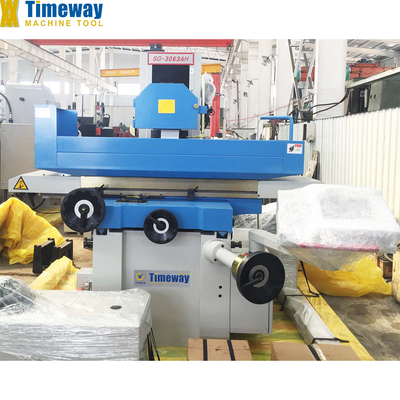

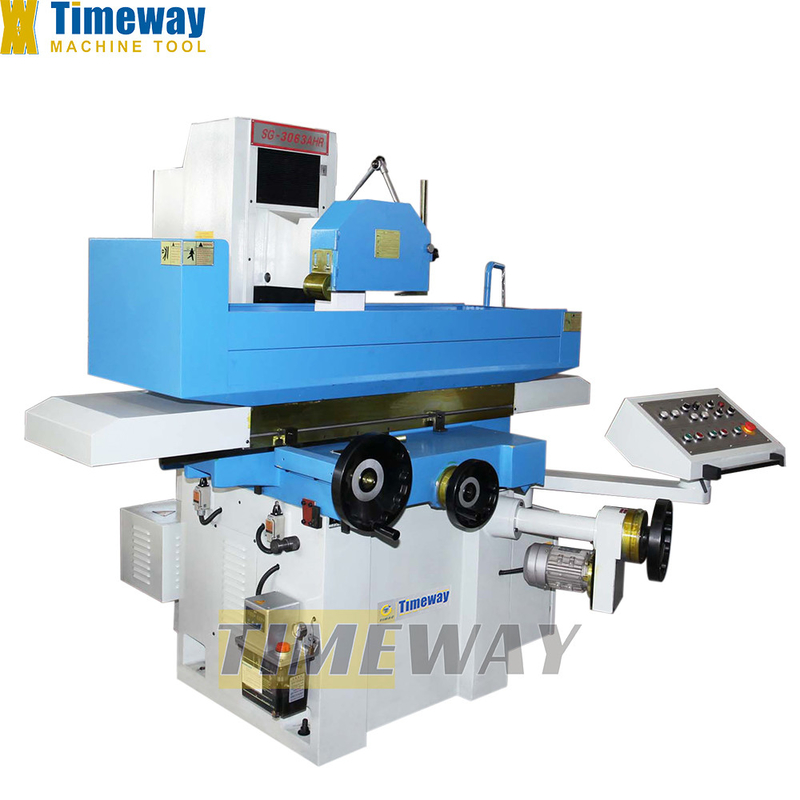

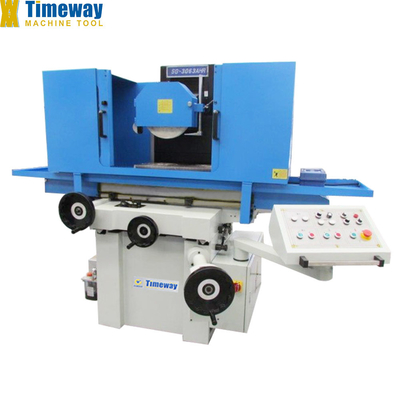

Saddle Moving Type Surface Grinder:
SG-AH: auto feed on cross, hydraulic transmission on longitudinal, manual on vertical.
SG-AHR: auto feed on cross, hydraulic transmission on longitudinal, rapid movement on vertical.
SG-AHD: auto feed on cross, hydraulic transmission on longitudinal, auto feed on vertical.
SG-AHR: auto feed on cross, hydraulic transmission on longitudinal, rapid movement on vertical.
SG-AHD: auto feed on cross, hydraulic transmission on longitudinal, auto feed on vertical.
STANDARD ACCESSORIES:
Working lamp,
Balancing arbor,
Standard grinding wheel,
Magnetic chuck,
Built-in magnetic chuck controller,
Coolant tank,
Wheel flange and extractor,
Wheel dresser stand,
Lubrication system,
Tool box & tools,
Leveling wedge and screw,
Operation manual (English edition).
OPTIONAL ACCESSORIES:
Diamond pen,
Balancing stand,
2 axis digital readout,
Extra wheel flange,
Rear splashing guard,
Closed safe guard,
Oil tank guard,
Dust exhaust,
Dust exhaust,
Parallel wheel dresser,
Radius dresser,
Angle dresser,
Side dresser,
Sinusoidal magnetic table,
Electronic handwheel,
Magnetic separator,
Magnetic separator,
Paper filter.
Specification
SPECIFICATION | UNIT | SG-2550AH SG-2550AHR SG-2550AHD |
Table size | mm | 254x508 |
Electro magnetic chuck size | mm | 250x500 |
Distance from spindle to table | mm | 450 |
Table cross travel | mm | 275 |
Table longitudinal travel | mm | 560 |
Loading capacity (include chuck) | kg | 180 |
Longitudinal feed speed | m/min | 5-25 |
Table cross intermittent feed rate | mm/str | 0.1-8 |
Table cross rapid feed speed | mm/min | 990 |
Table cross feed of handwheel | mm/gra | 0.02 |
Wheelhead vertical intermittent feed rate | mm/str | AH: -; AHR: -; AHD: 0.005-0.5; |
Wheelhead vertical rapid feed speed | mm/min | AH: -; AHR: 650; AHD: 480; |
Wheelhead vertical feed of handwheel | mm/gra | 0.005 |
Spindle speed (50/60HZ) | rpm | 2850/3450 |
Grinding wheel size | mm | 200x20x31.75 |
Main motor power | kw | 2.2 |
Machine dimensions (LxWxH) | cm | 230x160x168 |
Package dimensions (LxWxH) | cm | 200x210x215 |
Machine weight | kg | 1800 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
