Cylindrical Grinding Machine G-630 with 2000/3000/4000/5000mm Distance between Centers
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $26,600.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Other | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Year: | 2024 |
| Dimension(L*W*H): | 720/876/1100/1270x240x226mm | Weight (KG): | 18000 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Showroom Location: | India, Romania, Viet Nam, Kenya, Australia, Japan, South Africa, Malaysia, Canada, Kyrgyzstan, Italy, Thailand, Philippines, Indonesia | Applicable Industries: | Construction Works , Energy & Mining, Machinery Repair Shops, Building Material Shops |
| Marketing Type: | Hot Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Engine | Product Name: | Grinding Machine |
| Name: | Cylindrical Grinder | Function: | Grinding Material |
| Machine Type: | Manual | Precision: | High Precision Machine |
| Application: | Metal Processing | Advantage: | High Efficiency Easy Operate |
| Color: | Customized Optional | Distance Between Centers: | 2000/3000/4000/5000mm |
| Center Height: | 370mm | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description

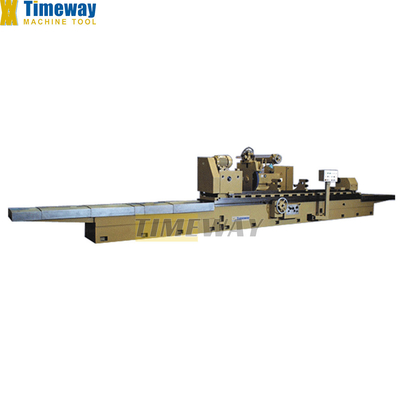

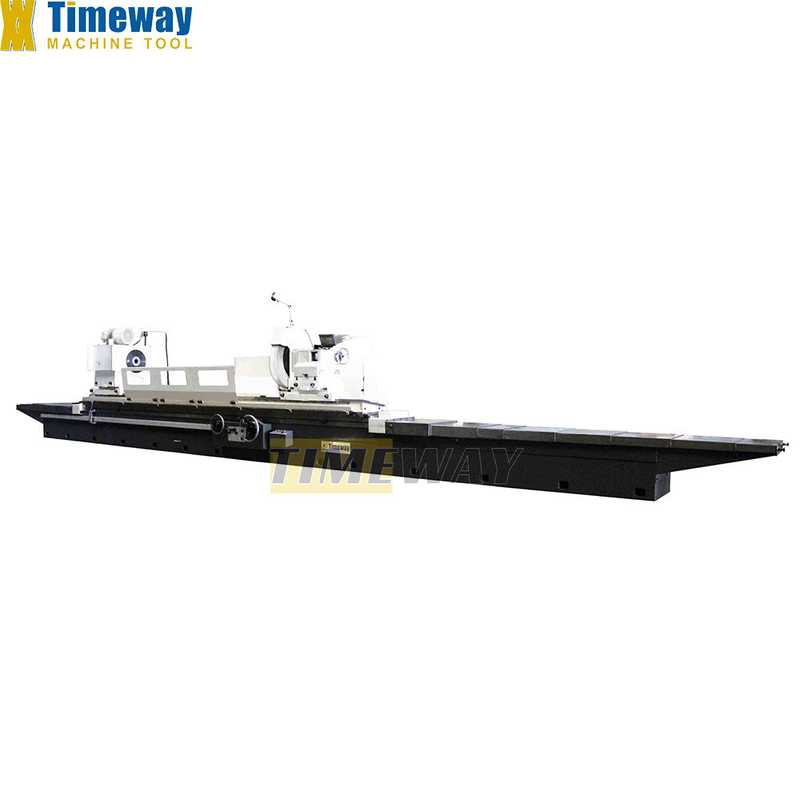

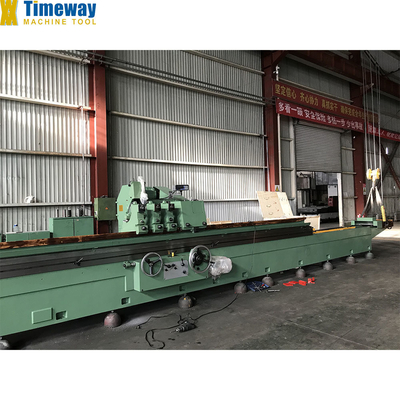

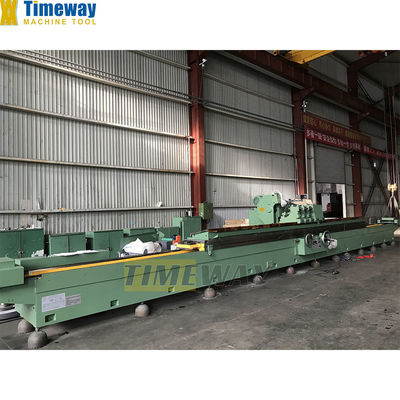

Cylindrical Grinder G-630
1. G-630 cylindrical grinder is suitable for grinding outer cylindrical and conical surface.

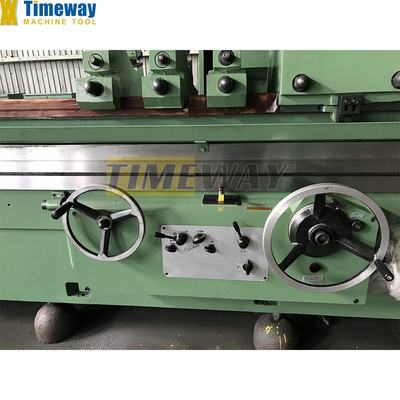

2. The longitudinal movement of the worktable is driven by hydraulic or by handwheel. The worktable can rotate to a certain degree so as to be suitable for grinding taper.

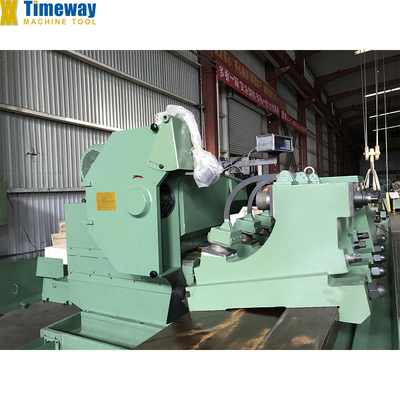

3. The wheelhead cross feed is driven by hydraulic, which realizes automatic periodical feed and rapid feed. It can also do rough and fine feed through handwheel.
STANDARD ACCESSORIES:
Measuring bridge plate,
Open steady rest,
Wheel flange,
Wheel extractor,
Balancing arbor,
Grinding wheel,
Coolant tank,
Carbide tripped center,
Driving dog,
Driving dog,
Wheel dresser (Without diamond pen),
Work lamp,
Internal grinding attachment (UG),
3-jaw chuck (UG),
Extension shaft(UG),
Internal grinding wheel (UG),
Full set tools,
Leveling wedge,
Operation manual (English edition).
OPTIONAL ACCESSORIES:
Balancing stand,
Digital readout,
Close steady rest,
End wheel dresser,
Radius wheel dresser,
Center grinding attachment (G),
Magnetic separator,
Paper filter.
Magnetic separator,
Paper filter.
Specification
SPECIFICATION | UNIT | G-630 | ||
Distance between centers | mm | 2000/3000/4000/5000 | ||
Center height | mm | 370 | ||
Dia. ground (O.D) | mm | 30-630 | ||
Grinding length (O.D) | mm | 2000/3000/4000/500 | ||
Loading capacity | kg | 3000 | ||
Workhead spindle taper | - | Metric 80 | ||
Workhead spindle speed | rpm | 6-60 (stepless) | ||
Wheelhead feed of handwheel per rev. (rough/fine) | mm | 4/0.5 | ||
Wheelhead feed of handwheel per gra. (rough/fine) | mm | 0.02/0.0025 | ||
External grinding wheel size | mm | 750x75x305 | ||
Max. peripheral speed of grinding wheel | m/s | 35 | ||
Table feed of handwheel per rev. | mm | 5 | ||
Table swivel angle (CW) | ° | 2°/1° /1°/1° | ||
Table swivel angle (CCW) | ° | 4°/3° /2° /1.5° | ||
Table longitudinal feed speed | m/min | 0.1-2.5 | ||
Tailstock quill taper | - | Metric 80 | ||
Tailstock quill travel | mm | 70 | ||
External grinding motor power | kw | 22 | ||
Workhead motor power | kw | 15 | ||
Roundness | um | 3 | ||
Cylindricity | um | 8/8/8/12 | ||
Roughness | um | Ra0.32 | ||
Gross weight | kg | 18/22/23/26 | ||
Packing size (LxWxH) | mm | 720/876/1100/1270x240x226 | ||
