G-320 G-320A Cylindrical Grinder Normal CNC Grinding Machine for and Easy Operation
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $23,900.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Other | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Year: | 2024 |
| Dimension(L*W*H): | 3260/4260x1900x2050mm | Weight (KG): | 4600 |
| Power (kW): | 1.5/3 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | India, Romania, Viet Nam, Kenya, Australia, Japan, South Africa, Spain, Malaysia, Canada, Kyrgyzstan, Italy, Thailand, Philippines, United Kingdom, Indonesia |
| Applicable Industries: | Manufacturing Plant, Construction Works , Energy & Mining, Machinery Repair Shops, Building Material Shops, Hotels | Marketing Type: | Hot Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Engine |
| Product Name: | Grinding Machine | Name: | Cylindrical Grinder |
| Function: | Grinding Material | Machine Type: | Manual |
| Precision: | High Precision Machine | Application: | Metal Processing |
| Advantage: | High Efficiency Easy Operate | Color: | Customized Optional |
| Dia. Ground (O.D): | 8-320mm | Machine Motor Power: | 1.1/3 Kw |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description

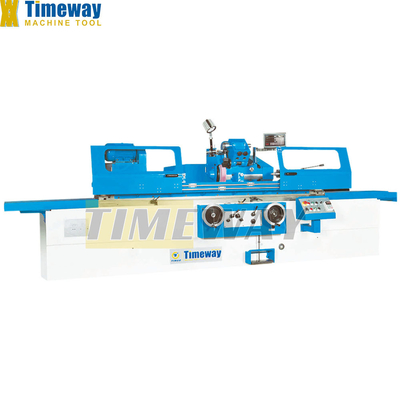

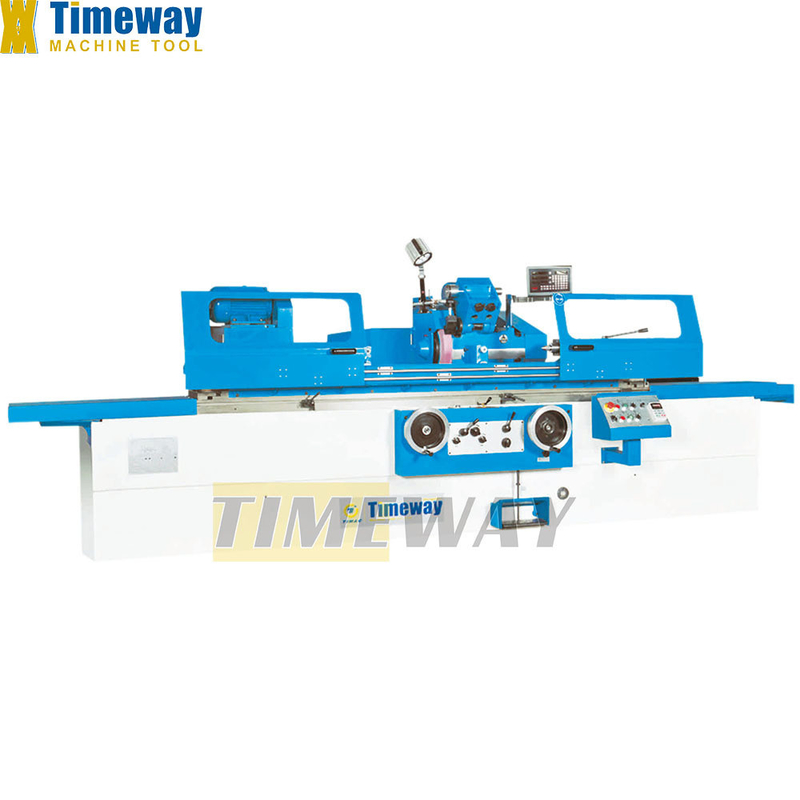

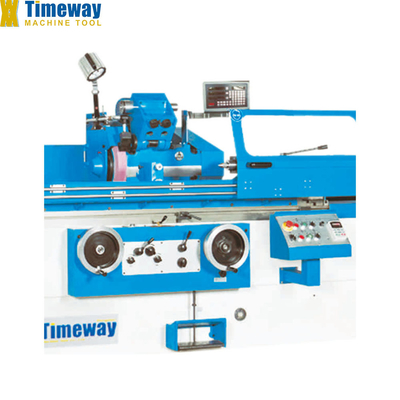

Cylindrical Grinder G-320, G-320A
G-series cylindrical grinder is suitable for grinding outer cylindrical and conical surface;
Each moving parts of the machine has electric, hydraulic and mechanic interlock structure the machine is well designed with pleasing appearance, all control lever are centralized in panel make operating easy.
The wheel dresser can be mounted on the tailstock.
The workhead spindle, wheelhead spindle, internal grinding spindle, coolant pump, hydrodynamic and hydrostatic oil pump are driven by separate motors.
Each moving parts of the machine has electric, hydraulic and mechanic interlock structure the machine is well designed with pleasing appearance, all control lever are centralized in panel make operating easy.
The wheel dresser can be mounted on the tailstock.
STANDARD ACCESSORIES:
Measuring bridge plate,
Open steady rest,
Wheel flange,
Wheel extractor,
Balancing arbor,
Balancing arbor,
Grinding wheel,
Coolant tank,
Carbide tripped center,
Driving dog,
Wheel dresser (Without diamond pen),
Work lamp,
Full set tools,
Leveling wedge,
Operation manual (English edition).
OPTIONAL ACCESSORIES:
Balancing stand,
Digital readout,
Close steady rest,
End wheel dresser,
Radius wheel dresser,
Center grinding attachment
Magnetic separator,
Paper filter.
Specification
SPECIFICATION | UNIT | G-320 | G-320A |
Distance between centers | mm | 1000/1500 | 2000/3000 |
Center height | mm | 180 | 180 |
Dia. ground (O.D) | mm | 8-320 | 8-320 |
Grinding length (O.D) | mm | 1000/1500 | 2000/3000 |
Loading capacity | kg | 150 | 500 |
Workhead spindle taper | - | MT5 | MT5 |
Workhead spindle speed | rpm | 19-190 (stepless) | 10-100 (stepless) |
Wheelhead feed of handwheel per rev. (rough/fine) | mm | 2/0.5 | 2/0.5 |
Wheelhead feed of handwheel per gra. (rough/fine) | mm | 0.01/0.0025 | 0.01/0.0025 |
External grinding wheel size | mm | 600x75x305 | 600x75x305 |
Max. peripheral speed of grinding wheel | m/s | 35 | 35 |
Table feed of handwheel per rev. | mm | 6 | 6 |
Table swivel angle (CW) | ° | 3°/3° | 3°/3° |
Table swivel angle (CCW) | ° | 7°/6° | 5°/3° |
Table longitudinal feed speed | m/min | 0.1-4 | 0.1-3 |
Tailstock quill taper | - | MT4 | MT5 |
Tailstock quill travel | mm | 30 | 30 |
External grinding motor power | kw | 11 | 11 |
Workhead motor power | kw | 1.5 | 3 |
Roundness | um | 2.5 | 3 |
Cylindricity | um | 8 | 8 |
Roughness | um | Ra0.2 | Ra0.32 |
Gross weight | kg | 4600/5100 | 6200/7600 |
Packing size (LxWxH) | mm | 3260/4260x1900x2050 | 5800/7800x1900x2050 |
