1000mm Cross Travel Surface Grinding Machines with Advanced Column Moving Design
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $56,480.00/sets 1-2 sets |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 670 | Wheel Size(mm): | 500 |
| Surface Roughness(μm): | 0.63 μm | Table Size(mm): | 1000*2200 |
| Table Travel (X) (mm): | 1000 | Table Travel (Y) (mm): | 2200 |
| Year: | 2023 | Voltage: | Optional |
| Dimension(L*W*H): | 7200*5200*2500 | Weight (KG): | 14000 |
| Power (kW): | 18.5 | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Showroom Location: | France, Japan, Australia, United States |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC | Applicable Industries: | Manufacturing Plant, Advertising Company, Machinery Repair Shops |
| Product Name: | Surface Grinder Grinding Machine | Name: | Surface Grinder |
| Usage: | Surface Grinding | Machine Type: | Suface Grinding Machine |
| Grinding Wheel: | Taiwan Grinding Wheel | Color: | Cutomized |
| Key Word: | Universal Grinding Machine | Grinding Height: | 670 |
| Cross Travel: | 1000 | Longitudinal Travel: | 2200 |
Product Description
Product Description

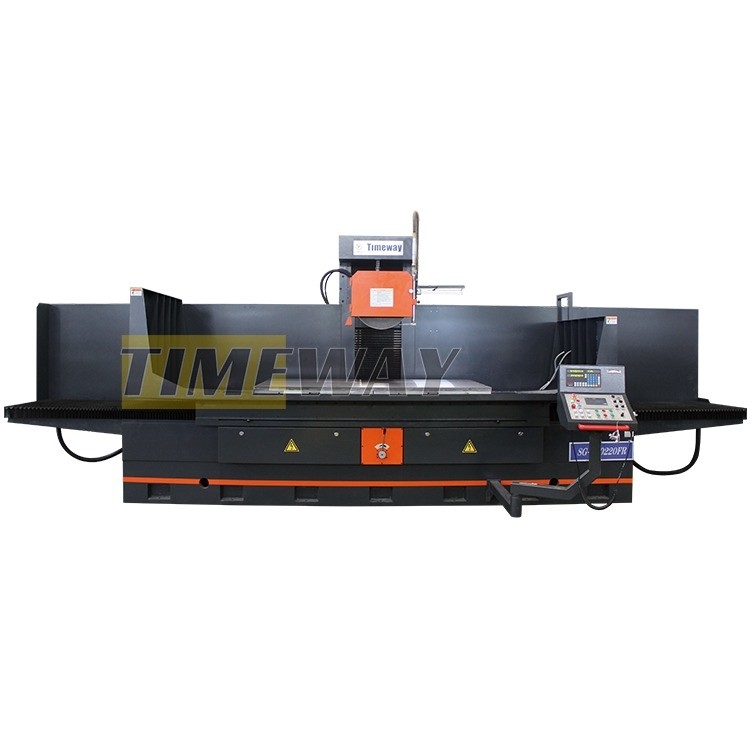

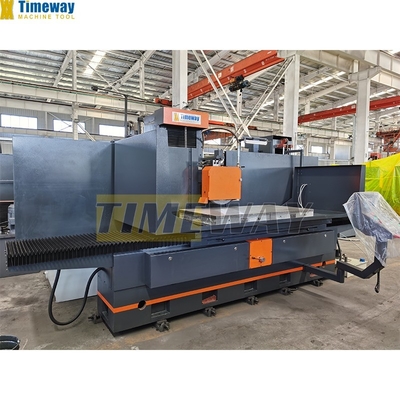

Column Moving Type Surface Grinder
* Double walled column construction, providing high rigid support. Adopt counterweight balance, making the machine moving stably, and reducing the load of the ball screw, keeping the accuracy for long time.
* High rigidity rectangular guideway is designed on vertical motion, and coat with Turcite-B belt, to get low fricion coefficien.
* Adopt the Flat-V type guideway on longitudinal and transverse to set good guidance quality, precision scraping to keep stable work accuracy by hand.
* The transverse and vertical movement are driven by AC servo motor, and the electronic hand wheel(MPG) instead of the tradition mechanical hand wheel, to get high accuracy and easy operation.

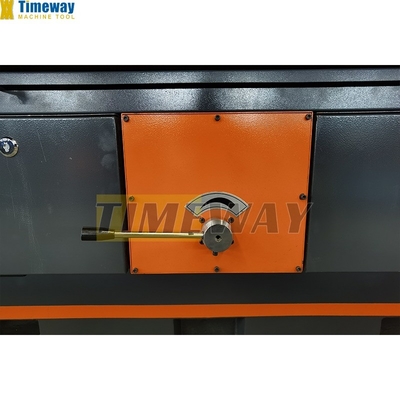

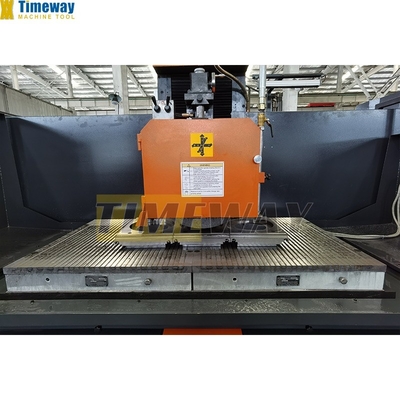

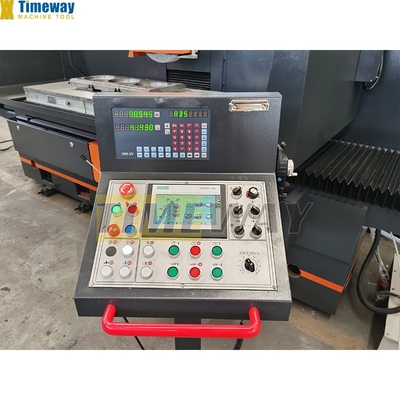

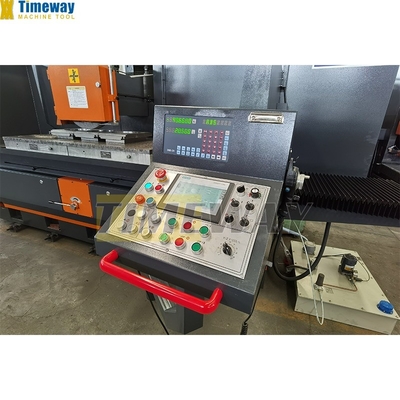

* Adopt SIEMENS 7 inch LCD-TFT colourful touch screen, built in program of our engineer's genius designation to make the operation very simple and convenient for the opeator.
* Well designed machine bed is one high grade casting iron, which ensure heavy duty cutting.
* Strengthen ribs are set inside of the rear slide base, make sure great stability support for spindle.
* Super great power spindle unit is most important to the machine. It is really an elaboration under well designed, and our
ultimate goal is to balance high rigidity and great accuracy.
* Adopt the Flat-V type guideway on longitudinal and transverse to set good guidance quality, precision scraping to keep stable work accuracy by hand.
* The transverse and vertical movement are driven by AC servo motor, and the electronic hand wheel(MPG) instead of the tradition mechanical hand wheel, to get high accuracy and easy operation.
* Adopt SIEMENS 7 inch LCD-TFT colourful touch screen, built in program of our engineer's genius designation to make the operation very simple and convenient for the opeator.
* Well designed machine bed is one high grade casting iron, which ensure heavy duty cutting.
* Strengthen ribs are set inside of the rear slide base, make sure great stability support for spindle.
* Super great power spindle unit is most important to the machine. It is really an elaboration under well designed, and our
ultimate goal is to balance high rigidity and great accuracy.
Specification
Specification | Unit | SG-100220FR | SG-100300FR | SG-100400FR |
Table size | mm | 1000x2200 | 1000x3000 | 1000x4000 |
Grinding area | mm | 1000x2200 | 1000x3000 | 1000x4000 |
Grinding height | mm | 670(830/1000) | 670(830/1000) | 670(830/1000) |
Electro magnetic chuck size (pcs.) | mm | 1000x1000x2 | 1000x1000x3 | 1000x1000x4 |
Loading capacity (include chuck) | kg | 4000 | 5000 | 5000 |
Table longitudinal feed speed | m/min | 5-25 | 5-25 | 5-25 |
Column cross intermittent feed rate | mm/str | 1-30 | 1-30 | 1-30 |
Column cross continuous feed speed | mm/min | 50-2000 | 50-2000 | 50-2000 |
Column cross feed rate (MPG) | mm/gra | 0.005 | 0.005 | 0.005 |
Wheelhead vertical intermittent feed rate | mm/str | 0.005-0.05 | 0.005-0.05 | 0.005-0.05 |
Wheelhead vertical continuous feed speed | mm/min | 50-2000 | 50-2000 | 50-2000 |
Wheelhead vertical feed rate (MPG) | mm/gra | 0.005 | 0.005 | 0.005 |
Spindle speed (50/60HZ) | rpm | 960/1150 (OP: 1450) | 960/1150 (OP: 1450) | 960/1150 (OP: 1450) |
Grinding wheel size | mm | Φ500x75xΦ305 (Φ500x100xΦ203) | Φ500x75xΦ305 (Φ500x100xΦ203) | Φ500x75xΦ305 (Φ500x100xΦ203) |
Main motor power | kw | 18.5/22 | 18.5/22 | 18.5/22 |
Hydraulic motor power | kw | 7.5 | 11 | 15 |
Y/Z-axis servo motor power | kw | 3 | 3 | 3 |
Total power | kw | 37 | 41 | 41 |
Machine dimensions (LxWxH) | mm | 6000x4300x2600 | 8200x4300x2600 | 10000x4300x2600 |
Machine weight | kg | 14000 | 15500 | 19500 |
