Saddle Moving Surface Grinding Machine with Table Cross Intermittent Feed Rate 0.1-8
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $38,600.00/sets 1-1 sets |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 1000 | Surface Roughness(μm): | 0.05 μm |
| Table Size(mm): | 406*1020 | Voltage: | 220v/380v |
| Dimension(L*W*H): | 2950*2270*2210 | Weight (KG): | 5500 |
| Power (kW): | 4 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Showroom Location: | Viet Nam, Morocco, South Africa, South Korea, Canada, Uzbekistan, Italy |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Pump | Applicable Industries: | Manufacturing Plant |
| Table Size: | 406*1020 | Electro Magnetic Chuck Size: | 400*1000 |
| Distance From Spindle To Table: | 580 | Loading Capacity (include Chuck): | 600 |
| Longitudinal Feed Speed: | 5-25 | Table Cross Intermittent Feed Rate: | 0.1-8 |
| Vertical Feed Rate (MPG): | 0.005-0.5 | Grinding Wheel Size: | 350*40*127mm |
| Main Motor Power: | 4 | Machine Weight: | 3700 |
Product Description
Products Description

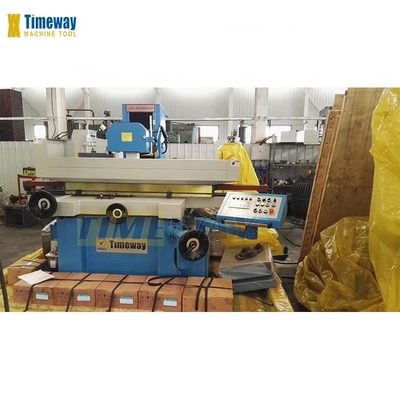

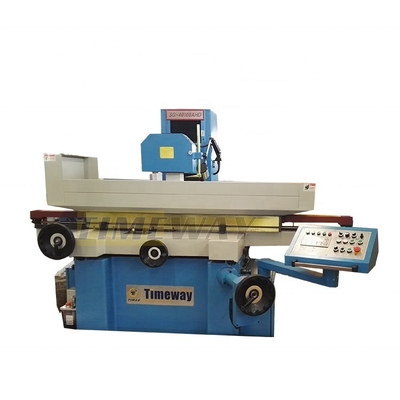

Saddle Moving Surface Grinding Machine
AH AHR AHDFeatures:
SG series saddle moving surface grinder, the table size covers 200x500,
250x500, 300x630, 300x1000, 400x800, 400x1000.
250x500, 300x630, 300x1000, 400x800, 400x1000.
Well designed perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes cross movement driven by AC motor, work table make reversing movement driven by hydraulic, and spindle make elevating movement and is driven by manual (AH series), AC motor (AHR series), or AC servo motor (AHD series).
SG-AH:auto feed on cross, hydraulic transmission on longitudinal, manual on vertical.
SG-AHR: auto feed on cross, hydraulic transmission on longitudinal, rapid movement on vertical.
SG-AHD: auto feed on cross, hydraulic transmission on longitudinal, auto feed on vertical.High rigidity one-piece stand adopts high quality casting iron for ensuring stability and performance of whole machine.
Well designed control panel with two-way rotate structure, make the operator getting suitable working position very easy, improve work efficiency.Safe and reliable electrical control, safety interlocking protection system, be designed according to CE tension electric requirement.Independent hydraulic station assembles with air cooling, running stably with small temperature rise, provide enough power for precision grinding.
Well designed control panel with two-way rotate structure, make the operator getting suitable working position very easy, improve work efficiency.Safe and reliable electrical control, safety interlocking protection system, be designed according to CE tension electric requirement.Independent hydraulic station assembles with air cooling, running stably with small temperature rise, provide enough power for precision grinding.
Double walled column construction, provide high rigid support to the grinding spindle.
Closed steel guard is equipped for protecting spindle motor and guideway, which make the column safe and beautiful.The worktable is driven by imported hydraulic valve unit, realize smoothly motion without shocking.
The guideway is coated with Turcite and precision hand scraped, move smoothly and keep the accuracy long life.
The AHD series grinder is standard equipped with auto down feed servo motor, and controlled by PLC and HMI with built-in program. It is so easy to realize auto grinding.
Specification | Unit | SG-40100AH SG-40100AHR SG-40100AHD |
Table size | mm | 406x1020 |
Electro magnetic chuck size | mm | 400x1000 |
Distance from spindle to table | mm | 580 |
Table cross travel | mm | 450 |
Table longitudinal travel | mm | 1130 |
Loading capacity (include chuck) | kg | 600 |
Longitudinal feed speed | m/min | 5-25 |
Table cross intermittent feed rate | mm/str | 0.1-8 |
Table cross rapid feed speed | mm/min | 990 |
Table cross feed of handwheel | mm/gra | 0.02 |
Wheelhead vertical intermittent feed rate | mm/str | AH: -; AHR: -; AHD: 0.005-0.5; |
Wheelhead vertical rapid feed speed | mm/min | AH: -; AHR: 650; AHD: 480; |
Wheelhead vertical feed of handwheel | mm/gra | 0.005 |
Spindle speed (50/60HZ) | rpm | 1450/1750 |
Grinding wheel size | mm | 350x40x127 |
Main motor power | kw | 4 |
Machine dimensions (LxWxH) | cm | 440x240x190 |
Package dimensions (LxWxH) | cm | 295x227x221 |
Machine weight | kg | 3700 |
Machine weight | kg | 19500 |
Operation manual (English edition) | Balancing stand |
Working lamp | Magnetic separator |
Balancing arbor | Paper filter |
Standard grinding wheel | Oil tank guard |
Magnetic chuck | Dust exhaust |
Built-in magnetic chuck controller | Parallel wheel dresser |
Coolant tank | 2 axis digital readout |
Wheel flange and extractor | Extra wheel flange |
Wheel dresser stand | |
Leveling wedge and screw | |
Lubrication system | |
Tool box & tools |
The guideway is coated with
Turcite and precision hand
scraped, move smoothly and
keep the accuracy long life.
Turcite and precision hand
scraped, move smoothly and
keep the accuracy long life.
The worktable is driven by
imported hydraulic valve unit,
realize smoothly motion without
shocking.
imported hydraulic valve unit,
realize smoothly motion without
shocking.

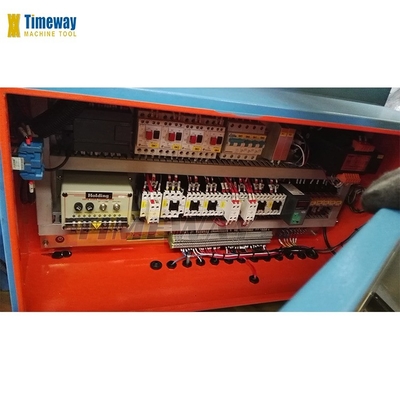

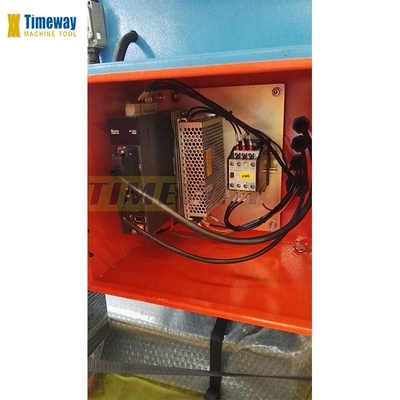

Safe and reliable electrical control, safety interlocking protection system, be designed according to CE tension electric requirement.
