CNC Cylindrical Grinder with Ra0.04um Roughness and 35 m/s Wheel Peripheral Velocity
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $90,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Grinding Diameter(Outer)(mm): | 25 | Max. Length Of Workpiece (mm): | 1500 |
|---|---|---|---|
| Max. Weight Of Workpiece(kg): | 50 | Center Height (mm): | 270 |
| Wheel Size(mm): | 750x75x305 | Wheel Speed (rpm): | 35 |
| Roundness(mm): | 3 | Cylindricity (mm): | 8 |
| Surface Roughness(μm): | 0.32 | Year: | 2024 |
| Dimension(L*W*H): | 5430x2250x2100 | Weight (KG): | 10000 |
| Key Selling Points: | Automatic | Warranty: | 1 Year |
| Showroom Location: | Peru, Italy, Ukraine, Sri Lanka | Applicable Industries: | Energy & Mining, Retail, Machinery Repair Shops |
| Marketing Type: | Hot Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Engine | Condition: | New |
| CNC Or Not: | CNC | Distance Between Centers: | 1500 Mm |
| Center Height: | 270 Mm | Dia. Ground (O.D): | 25-500 Mm |
| Max. Weight Of Workpiece: | 1000 Kg | Workhead Spindle Taper: | MT6 |
| Workhead Spindle Speed (stepless): | 10-1000 R/min | Max. Dimension Of Wheel (O.DxWxI.D): | 750x75x305 Mm |
| Wheel Peripheral Velocity: | 35 M/s | Min. Set Unit: | 0.0001 Mm |
| CNC System: | SIMENS 828D | ||
Product Description
Product Description

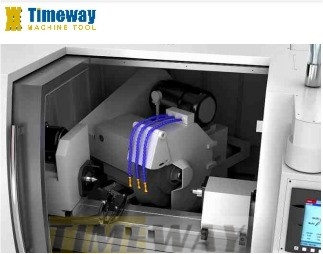

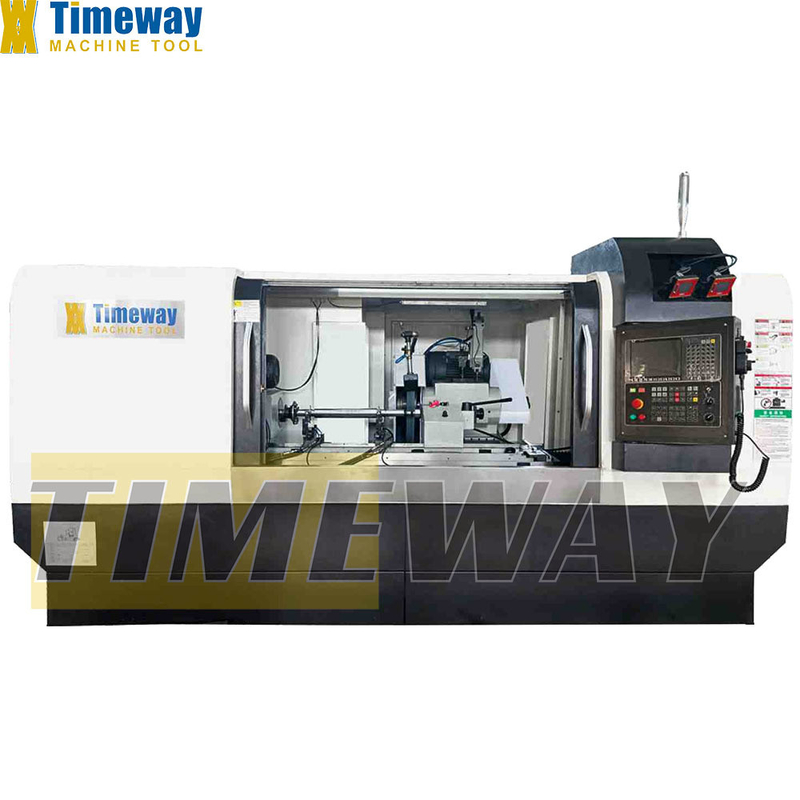

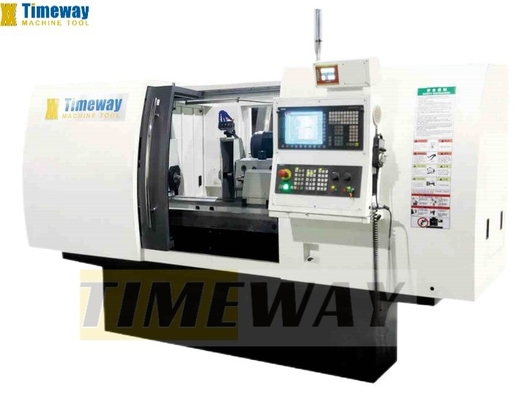

This machine is a two-axis linkage CNC numerical control cylindrical grinder.
The movement of the worktable and the wheel carrier is completed by the AC servo motors on the Z-axis and X-axis to drive the ball screw. X, Z axis linkage realizes linear and circular interpolation, and completes the grinding of inclined surface and circular arc.
Specification
Specification | GK-500/1500 |
Distance between centers | 1500 mm |
Center height | 270 mm |
Dia. ground (O.D) | 25-500 mm |
Max. weight of workpiece | 1000 kg |
Workhead spindle taper | MT6 |
Workhead spindle speed (stepless) | 10-1000 r/min |
Max. dimension of wheel (O.DxWxI.D) | 750x75x305 mm |
Wheel peripheral velocity | 35 m/s |
Min. set unit | 0.0001 mm |
Max. swiveling angle of table (Clockwise) | 3° |
Max. swiveling angle of table (Anticlockwise) | 6° |
Tailstock quill taper | MT6 |
Tailstock quill travel | 70 mm |
CNC system | SIMENS 828D |
Wheelhead motor power | 15 kw |
Workhead motor power | 4 kw |
Roundness | 3/5 μm |
Cylindricity | 8 μm |
Roughness | Ra0.32 μm |
Gross weight | 10000 kg |
Packing size (LxWxH) | 543x225x210 cm |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
One-Stop Shopping
You can click on the picture to view the products you are interested in
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
