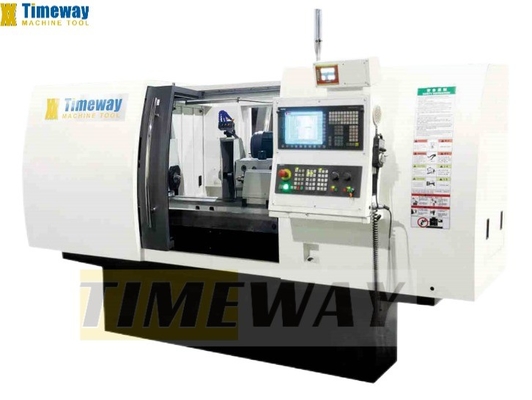

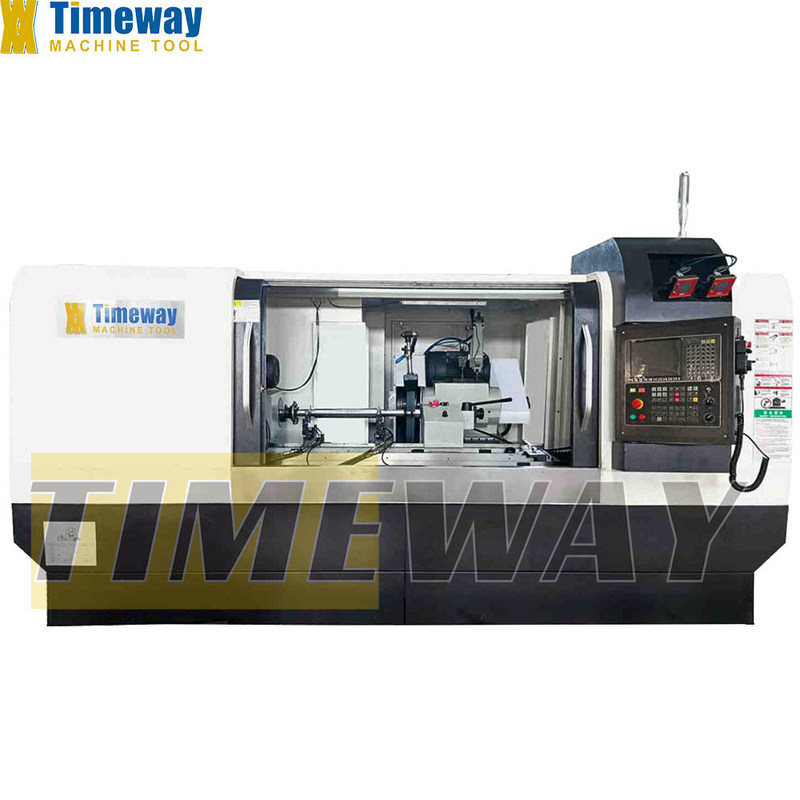

Timeway Machine Automatic CNC Cylindrical Grinding Machine with Stepless Spindle Speed
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $104,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Grinding Diameter(Outer)(mm): | 500 | Grinding Length(mm): | 3000 |
|---|---|---|---|
| Max. Weight Of Workpiece(kg): | 1000 | Center Height (mm): | 270 |
| Wheel Size(mm): | 750x75x305 Mm | Roundness(mm): | 3/5 |
| Cylindricity (mm): | 10 | Surface Roughness(μm): | 0.32 |
| Year: | 2024 | Dimension(L*W*H): | 7960x2250x2100 Mm |
| Weight (KG): | 13000 | Key Selling Points: | Automatic |
| Warranty: | 1 Year | Showroom Location: | Russia, Peru, Italy |
| Applicable Industries: | Retail, Machinery Repair Shops, Building Material Shops | Marketing Type: | Hot Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Engine |
| Condition: | New | CNC Or Not: | CNC |
| Distance Between Centers: | 3000 Mm | Center Height: | 270 Mm |
| Dia. Ground (O.D): | 25-500 Mm | Max. Weight Of Workpiece: | 1000 Kg |
| Workhead Spindle Taper: | MT6 | Workhead Spindle Speed (stepless): | 10-100 R/min |
| Max. Dimension Of Wheel (O.DxWxI.D): | 750x75x305 Mm | Wheel Peripheral Velocity: | 35 M/s |
| Min. Set Unit: | 0.0001 Mm | CNC System: | HNC-808DG |
Product Description
Product Description

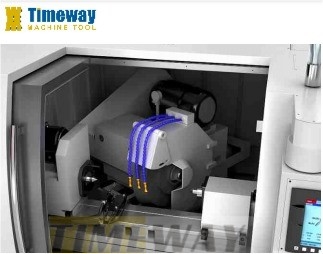

This machine tool is a two-axis linkage CNC numerical control cylindrical grinder. The movement of the worktable and the wheel carrier is completed by the AC servo motors on the Z-axis and X-axis to drive the ball screw. X, Z axis linkage realizes linear and circular interpolation, and completes the grinding of inclined surface and circular arc.
Specification
Specifications | GK-500/3000 |
Distance between centers | 3000 mm |
Center height | 270 mm |
Dia. ground (O.D) | 25-500 mm |
Max. weight of workpiece | 1000 kg |
Workhead spindle taper | MT6 |
Workhead spindle speed (stepless) | 10-100 r/min |
Max. dimension of wheel (O.DxWxI.D) | 750x75x305 mm |
Wheel peripheral velocity | 35 m/s |
Min. set unit | 0.0001 mm |
Max. swiveling angle of table (Clockwise) | 2° |
Max. swiveling angle of table (Anticlockwise) | 3° |
Tailstock quill taper | MT6 |
Tailstock quill travel | 70 mm |
CNC system | HNC-808DG |
Wheelhead motor power | 15 kw |
Workhead motor power | 4 kw |
Roundness | 3/5 μm |
Cylindricity | 10 μm |
Roughness | Ra0.32 μm |
Gross weight | 13000 kg |
Packing size (LxWxH) | 7960x2250x2100 mm |
