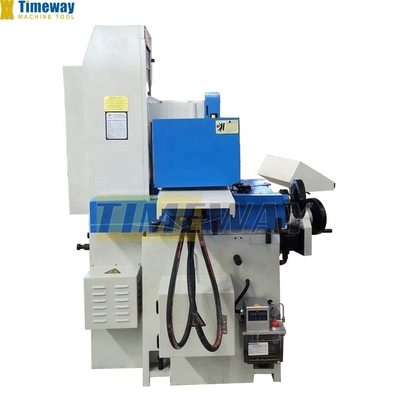

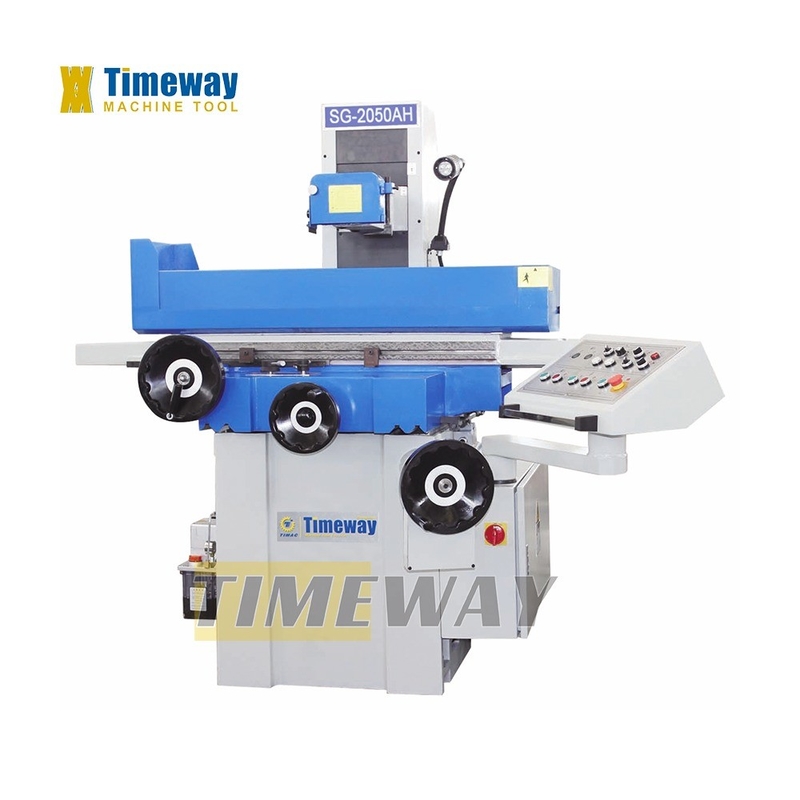

560mm Table Longitudinal Feed Surface Grinder SG-2050AH for Customer Requirements
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $16,666.00/sets 1-2 sets |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 510 | Surface Roughness(μm): | 3.2 μm |
| Table Size(mm): | 200x508 | Table Travel (X) (mm): | 240 |
| Table Travel (Y) (mm): | 560 | Year: | 2024 |
| Dimension(L*W*H): | 2300x1600x1680 Mm | Weight (KG): | 1650 |
| Power (kW): | 2.2 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Showroom Location: | Philippines, Italy, Peru, Kazakhstan |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Engine | Applicable Industries: | Home Use, Energy & Mining, Retail |
| Table Size: | 200x508 Mm | Electro Magnetic Chuck Size: | 200x460 Mm |
| Distance From Spindle To Table: | 450 Mm | Table Cross Travel: | 240 Mm |
| Table Longitudinal Travel: | 560 Mm | Loading Capacity (include Chuck): | 180 Mm |
| Longitudinal Feed Speed: | 25 M/min | Table Cross Intermittent Feed Rate: | 8 Mm/str |
| Table Cross Rapid Feed Speed: | 990 Mm/min | Table Cross Feed Of Handwheel: | 0.02 Mm/gra |
Product Description
Product Description
SG-AH: auto feed on cross, hydraulic transmission on longitudinal, manual on vertical.
Specification
Specification | SG-2050AH |
Table size | 200x508 mm |
Electro magnetic chuck size | 200x460 mm |
Distance from spindle to table | 450 mm |
Table cross travel | 240 mm |
Table longitudinal travel | 560 mm |
Loading capacity (include chuck) | 180 mm |
Longitudinal feed speed | 5-25 m/min |
Table cross intermittent feed rate | 0.1-8 mm/str |
Table cross rapid feed speed | 990 mm/min |
Table cross feed of handwheel | 0.02 mm/gra |
Wheelhead vertical feed of handwheel | 0.005 mm/gra |
Spindle speed (50/60HZ) | 2850/3450 rpm |
Grinding wheel size | 200x20x31.75 mm |
Main motor power | 2.2 kw |
Machine dimensions (LxWxH) | 230x160x168 cm |
Package dimensions (LxWxH) | 200x210x215 cm |
Machine weight | 1650 kg |

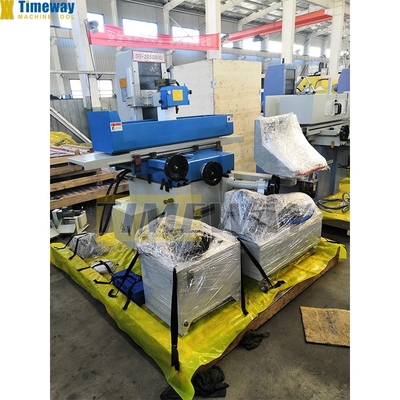

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
One-Stop Shopping
You can click on the picture to view the products you are interested in
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
