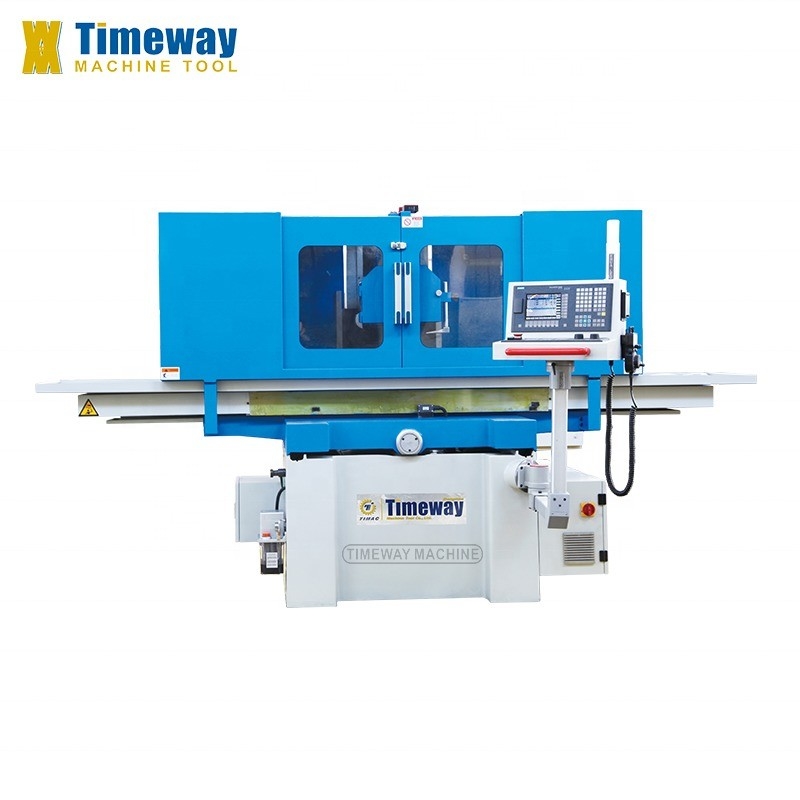

1.5kW CNC Saddle Moving Surface Grinder SG-2050CNC2 for Precision Machining Work
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $17,900.00/sets 1-2 sets |
|
Detail Information |
|||
| CNC Or Not: | CNC | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 460 | Surface Roughness(μm): | 0.02 μm |
| Table Size(mm): | 200x460 | Table Travel (X) (mm): | 510 |
| Table Travel (Y) (mm): | 238 | Year: | 2024 |
| Dimension(L*W*H): | 2000x1800x2150 Mm | Weight (KG): | 1600 |
| Power (kW): | 1.5 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | Australia, Malaysia, Uzbekistan, Kyrgyzstan |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Engine | Applicable Industries: | Farms, Garment Shops, Building Material Shops |
| Table Size: | 200x460 Mm | Electro Magnetic Chuck Size: | 200x460 Mm |
| Table Longitudinal Travel: | 510 Mm | Table Cross Travel: | 238 Mm |
| Distance From Spindle To Table: | 450 Mm | Loading Capacity (include Chuck): | 120 Kg |
| Table Longitudinal Feed Speed: | 25 M/min | Table Longitudinal Micro Feed Rate: | 1000 Mm/min |
| Table Cross Rapid Feed Speed: | 0.005 Mm/gra | Table Cross Micro Feed Rate: | 2850 Rpm |
Product Description
Product Description
Well designed perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes cross movement driven by AC servo motor (Y-axis), worktable make reversing movement driven by hydraulic or servo motor (X-axis), and spindle make elevating movement (X-axis) and is driven by AC servo motor.
SG-CNC2 model: Y/Z-axis numberical control and linkage, drove by AC servo motor and ball screw; X-axis drove by hydraulic.
SG-CNC2 model: Y/Z-axis numberical control and linkage, drove by AC servo motor and ball screw; X-axis drove by hydraulic.
Specification
Specification | SG-2050CNC2 |
Table size | 200x460 mm |
Electro magnetic chuck size | 200x460 mm |
Electro magnetic chuck size | 510 mmm |
Table cross travel | 238 mm |
Distance from spindle to table | 450 mm |
Loading capacity (include chuck) | 120 kg |
Table longitudinal feed speed | 5-25 m/min |
Table cross rapid feed speed | 0.1-1000 mm/min |
Table cross micro feed rate | 0.005 mm/gra |
Wheelhead vertical rapid feed speed | 0.1-1000 mm/min |
Wheelhead vertical micro feed rate | 0.005 mm/gra |
Spindle speed (50/60HZ) | 2850/3450 rpm |
Grinding wheel size | 200x20x31.75 mm |
Main motor power | 1.5 kw |
Floor space (LxW) | 2600x1800 mm |
Gross weight | 1600 kg |
Packing size (LxWxH) | 2000x1800x2150 mm |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
One-Stop Shopping
You can click on the picture to view the products you are interested in
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
