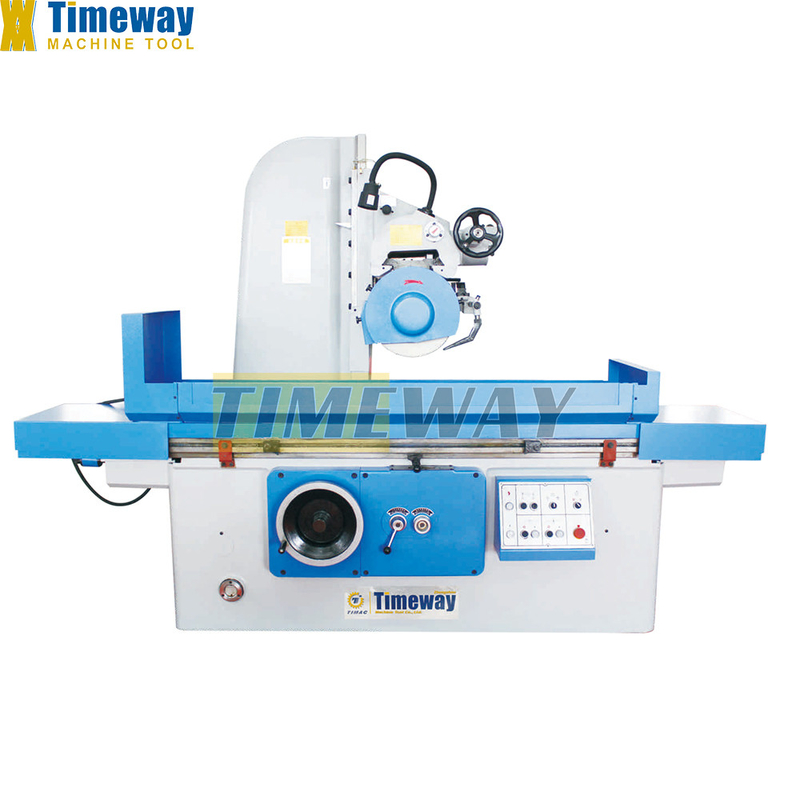

Metal Grinding Machine GS300A Cantilever Moving Type Surface Grinder with High Precision
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $29,800.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Grinding Length(mm): | 1100 |
|---|---|---|---|
| Surface Roughness(μm): | 0.32 μm | Table Size(mm): | 1000x300 |
| Table Travel (X) (mm): | 600 | Table Travel (Y) (mm): | 1000 |
| Year: | 2024 | Dimension(L*W*H): | 2860x1540x2030mm |
| Weight (KG): | 3500 | Power (kW): | 11 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Showroom Location: | India, Indonesia, Germany, Mexico, Japan, Australia, Spain, Canada, Malaysia, Philippines, Brazil, Chile, Algeria, United States | Marketing Type: | New Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Engine, Gear |
| Applicable Industries: | Farms, Manufacturing Plant, Energy & Mining, Construction Works , Machinery Repair Shops, Building Material Shops | Product Name: | Cantilever Moving Type Surface Grinder |
| Application: | Metal Processing | Table Width: | 300mm |
| Table Length: | 1000mm | Max. Grinding Width: | 300mm |
| Max. Grinding Length: | 1100mm | Max. Grinding Height: | 400mm |
| Distance From Spindle To Table: | 600mm | Machine Type: | Suface Grinding Machine |
| Color: | Cutomized | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:
Grinding wheel,
Wheel balancing arbor,
Wheel extractor,
Coolant system,
Work lamp,
Wheel flange,
Wheel dresser,
Leveling wedge and bolt,
Tools and tool box,
Tools and tool box,
Operation manual (English edition).
OPTIONAL ACCESSORIES:
Diamond pen,
Electrical magnetic chuck,
Wheel balancing stand,
Paper fliter,
Magnetic separator,
Demagnetizer
Specification
SPECIFICATION | UNIT | GS-300A |
Table width | mm | 300 |
Table length | mm | 1000 |
Max. grinding width | mm | 300 |
Max. grinding length | mm | 1100 |
Max. grinding height | mm | 400 |
Distance from spindle to table | mm | 600 |
Longitudinal feed speed | m/min | 3-27 |
T-slot (No./width) | mm | 3/18 |
Cross continuous feed speed | m/min | 0.5-4.5 |
Cross intermittent feed rate | mm/str | 3-30 |
Vertical rapid feed speed | mm/min | 400 |
Vertical feed of handwheel per gra. | mm/gra | 0.005 |
Vertical feed of handwheel per rev. | mm/rev | 0.645 |
Main motor power | kw | 7.5 |
Spindle speed | rpm | 1440 |
Total power | kw | 11 |
Loading capacity (include chuck) | kg | 470 |
Grinding wheel size | mm | 400x40x127 |
Overall dimensions (LxWxH) | mm | 2860x1540x2030 |
Machine weight | kg | 3500 |
