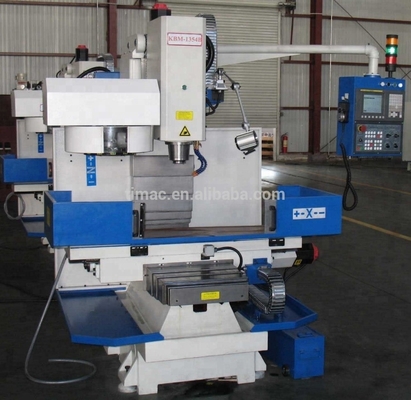

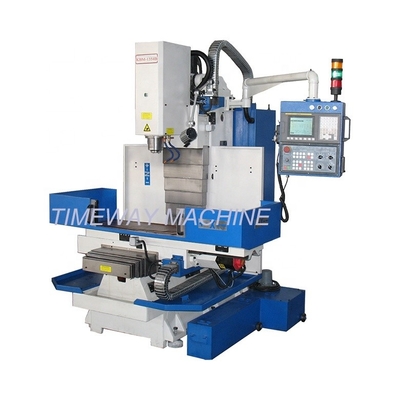

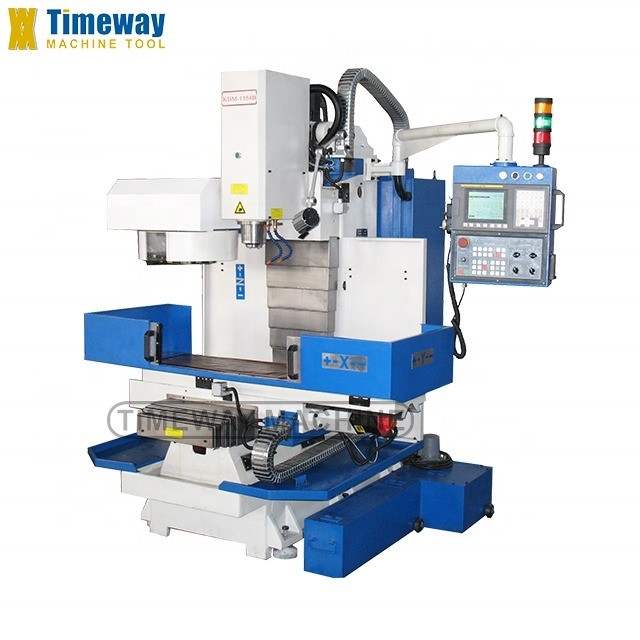

High Capacity Machining Capacity Heavy Duty 2600kg CNC Milling Machine KBM-1354B
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE, ISO9001 |
| Model Number: | KBM-1354B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,000.00/sets 1-4 sets |
| Packaging Details: | Wood case (fumigated) |
| Supply Ability: | 65 Set/Sets per Month |
|
Detail Information |
|||
| Type: | VERTICAL | Range Of Spindle Speed(r.p.m): | 40 - 6000 |
|---|---|---|---|
| Number Of Axes: | 3 | No. Of Spindles: | Single |
| Machining Capacity: | Heavy Duty | Spindle Taper: | BT40 |
| Table Travel (X) (mm): | 800 | Table Travel (Y) (mm): | 450 |
| Table Travel (Z) (mm): | 480 | Positioning Accuracy (mm): | 0.015 |
| Repeatability (X/Y/Z) (mm): | 0.008 | Voltage: | As Clients' Request |

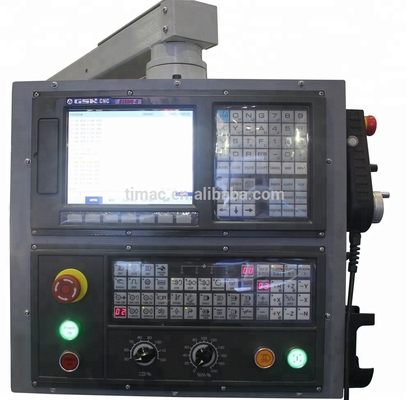

| Dimension(L*W*H): | 2250x2280x2450mm | CNC Control System: | FANUC |
| Key Selling Points: | High-accuracy | Weight (KG): | 3400 |
| Spindle Motor Power(kW): | 5.5 KW | Warranty: | 1 Year |
| Max. Table Load(kg): | 700 Kg | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | CNC |
| After-sales Service Provided: | Online Support | Milling Machine: | Machine Tools |
| Machinery: | Mill Drill | Weight: | 2600kg |
| Power: | 5.5kw | X-axis Travel: | 800 Mm |
| Y-axis Travel: | 450 Mm | Z-axis Travel: | 480 Mm |
| Condition: | New | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Other |
| Showroom Location: | Italy, Peru, Indonesia, India, Mexico, Russia, Thailand, South Africa | Core Components: | Motor |
| Table Travel (mm): | 800x450x480 | Port: | Qingdao Port |
Product Description
Products Description
1. The spindle system features strong rigidity, it's suitable for rough machining and force cutting; hence improve machining efficiency, features long travel, heavy loading. It's mainly used for boring and milling big surface and big case parts.
2. The machine can be used for drilling, boring, lathing, and milling. The machine is adopt rectangular guide ways, features strong rigidity and high accuracy.
3. Radial tool holder of facing head on the
headstock head for radial machining
4. Optional digital readout device, reading
accuracy 0.01 mm, positioning accuracy 0.05mm
2. The machine can be used for drilling, boring, lathing, and milling. The machine is adopt rectangular guide ways, features strong rigidity and high accuracy.
3. Radial tool holder of facing head on the
headstock head for radial machining
4. Optional digital readout device, reading
accuracy 0.01 mm, positioning accuracy 0.05mm
Specification | KBM-1354B | KBM-1654 | KBM-2063 | KBM-2473 | |||||
Table size (LxW/mm) | 1370x330 | 1370x406 | 1600x510 | 1854x610 | |||||
Table loading capacity(kg) | 400 | 800 | 1200 | 1500 | |||||
T-slots(W/mmxNO) | 16x3 | 16x5 | 18x5 | 18x5 | |||||
X-axis(mm) | 800 | 1000 | 1200 | 1500 | |||||
Y-axis(mm) | 450 | 480 | 700 | 700 | |||||
Z-axis(mm) | 480 | 600 | 600 | 700 | |||||
Max.move speed(mm/min) | 8000 | 8000 | 10000 | 10000 | |||||
Max.feed speed(mm/min) | 3000 | 3000 | 4000 | 4000 | |||||
Spindle speed(rpm/min) | RANGE:40~6000 | ||||||||
Spindle nose | BT40 | BT40 | BT40/ BT50 | BT40 / BT50 | |||||
Spindle motor(kw) | 5.5 | 7.5 | 7.5 | 7.5 | |||||
Servo motor(kw) | X/Y:1.0,Z:1.5 | X/Y/Z:1.5 | X/Y/Z:2.0 | X/Y/Z:2.0 | |||||
Spindle quill diameter(mm) | 120 | 150 | 150/160 | 150/160 | |||||
Spindle to column surface(mm) | 450 | 520 | 640 | 695 | |||||
X-axis(mm) | 32x5p4Double nuts | 32x5p4Double nuts | 40x10p4Double nuts | ||||||
Y-axis(mm) | 32x5p4Double nuts | 40x5p4Double nuts | 40x10p4Double nuts | ||||||
Z-axis(mm) | 32x5p4Double nuts | 40x5p4Double nuts | 40x10p4Double nuts | ||||||
Positioning accuracy(mm) | ±0.015 | ±0.015 | ±0.015 | ±0.015 | |||||
Repeatability (mm) | ±0.008 | ±0.008 | ±0.008 | ±0.008 | |||||
Packing dimension (mm) | Semi-close cover | 2250x2280x2450 | 2500x2280x2650 | 2900x2950x2800 | 2900x3150x2900 | ||||

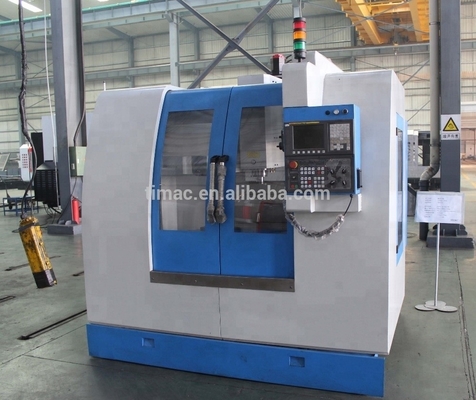

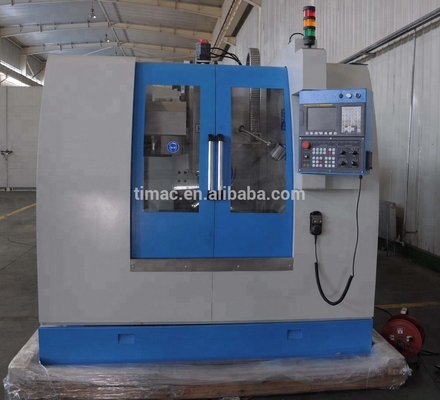

Full-close cover | 2950x2280x2450 | 3200x2280x2650 | 4500x2750x2800 | / | |||||
Machine weight (kg) | Semi-close cover | 2600 | 3800 | 5000 | 6000 | ||||
Full-close cover | 3400 | 4720 | 6400 | / | |||||
* Semi-isolated table shield; * Auto. Lubrication system; * Spindle air flow; * Working light; * Level adjusting screw and block; * Clamping appratus | * The Forth axis revolving table; * Vertical arm type ATC; * Full closed safety cover; * Cutter length measuring unit; * Edge finder; * Shank |
