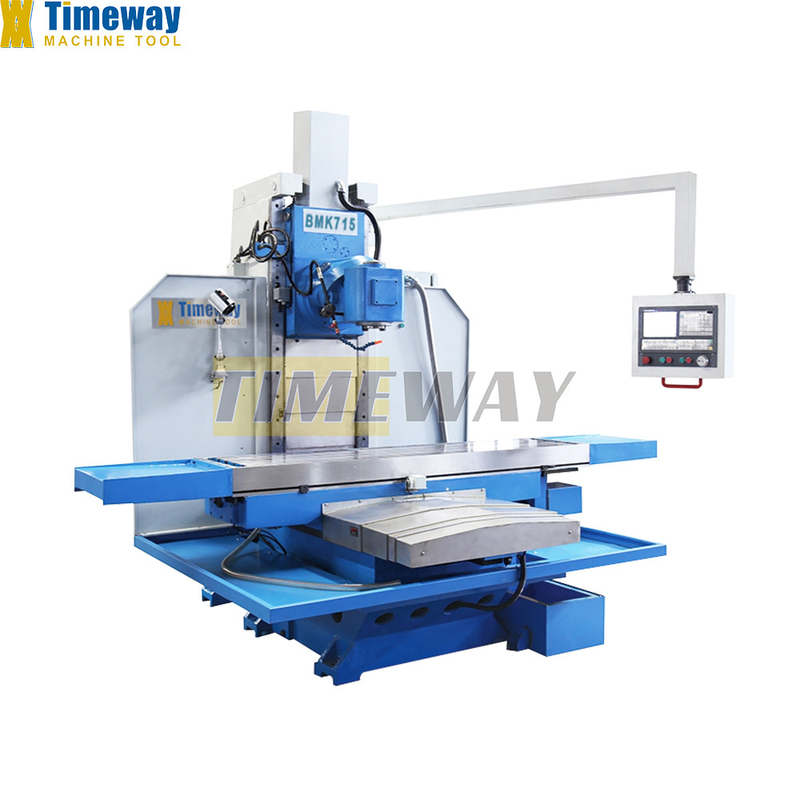

11kw Main Motor Power Siemens CNC Control System BMK715 CNC Bed Type Milling Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | BMK715 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,800.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | VERTICAL | Range Of Spindle Speed(r.p.m): | 6 - 1500 |
|---|---|---|---|
| Number Of Axes: | 3 | No. Of Spindles: | Single |
| Machining Capacity: | Medium Duty | Spindle Taper: | ISO50 |
| Table Travel (X) (mm): | 1500 | Table Travel (Y) (mm): | 650 |
| Table Travel (Z) (mm): | Other | Positioning Accuracy (mm): | ±0.002 |
| Repeatability (X/Y/Z) (mm): | ±0.003 | Dimension(L*W*H): | 3220x2420x2800mm |

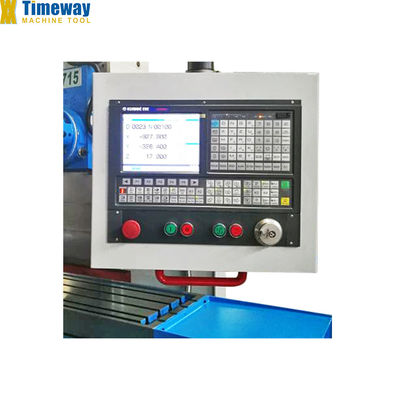

| CNC Control System: | Siemens | Key Selling Points: | Competitive Price |
| Weight (KG): | 7300 | Spindle Motor Power(kW): | 11 |
| Warranty: | 1 Year | Max. Table Load(kg): | 600 Kg |
| Marketing Type: | New Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC | Product Name: | Cnc Milling Machine |
| Application: | Metal Mill | Machine Type: | Cnc Milling Machine Vertical |
| Precision: | High Precision CNC Milling Machine | Model: | BMK715 |
| Table Size: | 500x2100mm | Longitudinal Travel (X): | 1500mm |
| Cross Travel (Y): | 650mm | Main Motor Power: | 11kw |
| Condition: | New | Applicable Industries: | Hotels, Building Material Shops, Manufacturing Plant, Farms, Printing Shops, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Turkey, United States, Viet Nam, Philippines, Peru, Saudi Arabia, Spain, Argentina, Romania, South Africa, Ukraine, Japan, Australia | Core Components: | Motor |
| Year: | 2024 | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:
SIEMENS 808D
Draw bar
Milling chuck (ISO50)
Taper shell end mill holder (ISO50)
Middle cover
Work lamp
Oil gun
General tools
Foundation bolt
Operation manual(English)
Draw bar
Milling chuck (ISO50)
Taper shell end mill holder (ISO50)
Middle cover
Work lamp
Oil gun
General tools
Foundation bolt
Operation manual(English)
STANDARD ACCESSORIES:
FANUC or others
The fourth axis CNC rotary table
CNC dividing head
The fourth axis CNC rotary table
CNC dividing head
Specification
SPECIFICATION | UNIT | BMK715 |
Table size | mm | 500x2100 |
Longitudinal travel (X) | mm | 1500 |
Cross travel (Y) | mm | 650 |
T slot (No./width/distance) | mm | 4/20/100 |
Spindle taper | - | ISO50 |
Verical spindle speed | rpm | 6-1500 (2steps) |
Distance from horizontal spindle axis to table | mm | 8-660 |
Distance from vertical spindle axis to column | mm | 610 |
Distance from vertical spindle nose to table | mm | 0-650 |
X/Y-axis feed speed | mm/min | 2.5-3000 |
X/Y-axis rapid feed speed | mm/min | 6000 |
Z-axis feed speed | mm/min | 2.5-2500 |
Z-axis rapid feed speed | mm/min | 3000 |
Main motor power | kw | 11 |
X/Y/Z-axis feed motor torque | NM | 18/23/18 |
Coolant pump power | kw | 0.09 |
Machine dimensions (L×W×H) | mm | 3220x2420x2800 |
Machine weight | kg | 7300 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
