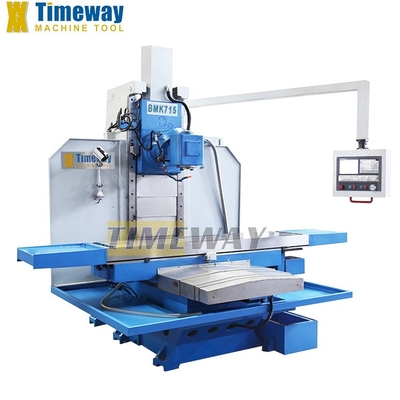

High Precision Bed Type Milling Machine with FANUC CNC Control System
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
| Model Number: | BMK715 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Range Of Spindle Speed(r.p.m): | 6 - 1500 |
|---|---|---|---|
| Number Of Axes: | 3 | Machining Capacity: | Medium Duty |
| Spindle Taper: | ISO50 | Table Travel (X) (mm): | 1500 |
| Table Travel (Y) (mm): | 650 | Table Travel (Z) (mm): | 500 |
| Positioning Accuracy (mm): | Other | Repeatability (X/Y/Z) (mm): | Other |
| Dimension(L*W*H): | 3220*2420*2800mm | CNC Control System: | FANUC |
| Key Selling Points: | High-accuracy | Weight (KG): | 7300 |
| Spindle Motor Power(kW): | 11 | Warranty: | 1 YEAR |
| Max. Table Load(kg): | 1500 Kg | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | Bed Type Milling Machine |
| Machine Type: | CNC Mill Machine | CNC Or Not: | CNC Milling Machine |
| CNC Controller: | Fanuc Siemens Syntec KND GSK | Color: | Customers' Request |
| Model: | BMK715 | After-sales Service Provided: | 1 YEAR |
| Table Size: | 500*2100mm | Spindle Speed: | 6-1500rpm |
| Machine Weight: | 7300kg | Condition: | New |
| Applicable Industries: | Manufacturing Plant, Home Use, Construction Works , Energy & Mining | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Russia, Thailand, Morocco, Kenya, Argentina, South Korea, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox | Port: | China Port |
Product Description
Product Description

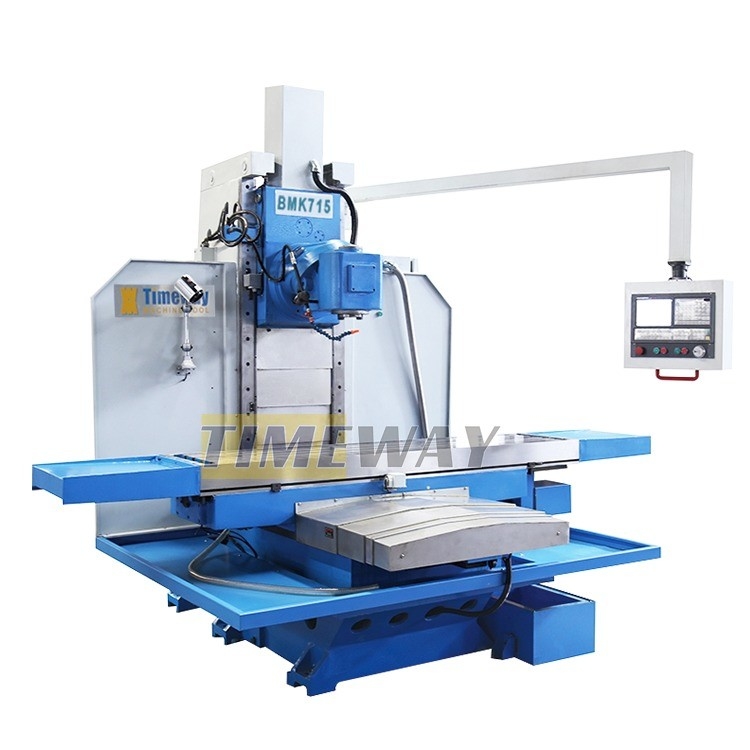

CNC Bed Type Milling Machine BMK715
Specification
Specification | Unit | BMK715 | BMK716 |
Table size | mm | 500x2100 | 600x2500 |
Longitudinal travel (X) | mm | 1500 | 1800 |
Cross travel (Y) | mm | 650 | 700 |
T slot (No./width/distance) | mm | 4/20/100 | 5/20/100 |
Spindle taper | - | ISO50 | ISO50 |
Verical spindle speed | rpm | 6-1500 (2steps) | 6-1500 (2steps) |
Distance from horizontal spindle axis to table | mm | 8-660 | 8-660 |
Distance from vertical spindle axis to column | mm | 610 | 610 |
Distance from vertical spindle nose to table | mm | 0-650 | 0-700 |
X/Y-axis feed speed | mm/min | 2.5-3000 | 2.5-3000 |
X/Y-axis rapid feed speed | mm/min | 6000 | 6000 |
Z-axis feed speed | mm/min | 2.5-2500 | 2.5-2500 |
Z-axis rapid feed speed | mm/min | 3000 | 3000 |
Main motor power | kw | 11 | 11 |
X/Y/Z-axis feed motor torque | NM | 18/23/18 | 18/23/18 |
Coolant pump power | kw | 0.09 | 0.09 |
Machine dimensions (L×W×H) | mm | 3220x2420x2800 | 4380x2520x2800 |
Machine weight | kg | 7300 | 9000 |
Accessories
Standard accessories:
SIEMENS 808D
Draw bar
Milling chuck (ISO50)
Taper shell end mill holder (ISO50)
Middle cover
Work lamp
Oil gun
General tools
Foundation bolt
Operation manual
Draw bar
Milling chuck (ISO50)
Taper shell end mill holder (ISO50)
Middle cover
Work lamp
Oil gun
General tools
Foundation bolt
Operation manual
Optional accessories:
FANUC or others
The fourth axis CNC rotary table
CNC dividing head
The fourth axis CNC rotary table
CNC dividing head
