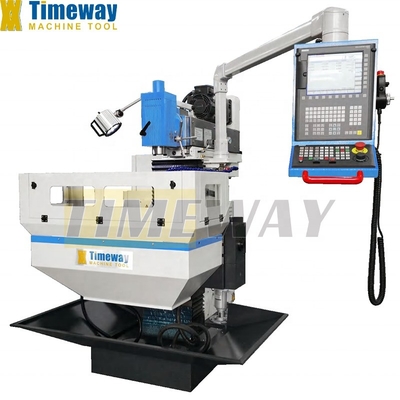

UTMK320 CNC Tool Milling Machine Professional Precise Table Travel 750x320mm
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | UTMK320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | VERTICAL | Range Of Spindle Speed(r.p.m): | 40 - 2000 |
|---|---|---|---|
| Number Of Axes: | 3 | No. Of Spindles: | Single |
| Machining Capacity: | Medium Duty | Spindle Taper: | NT40 |
| Table Travel (X) (mm): | 405 | Table Travel (Y) (mm): | 305 |
| Table Travel (Z) (mm): | 400 | Positioning Accuracy (mm): | ±0.002 |
| Repeatability (X/Y/Z) (mm): | ±0.001 | Voltage: | 220V/330 |
| Dimension(L*W*H): | 1500x1700x1800 | CNC Control System: | Siemens |
| Key Selling Points: | Multifunctional | Weight (KG): | 1450 |
| Warranty: | 1 Year | Max. Table Load(kg): | 160 Kg |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Spindle Speed: | 40-2000 (2) | Product Name: | Cnc Milling Machine |
| CNC Or Not: | CNC Systemn | Machine Type: | CNC Mill Machine |
| Keyword: | Cnc 3 Axis Milling Machine | Application: | Metal Machining |
| Usage: | Processing Machine | Function: | Vertical Milling Machining |
| CNC Controller: | Fanuc Siemens Syntec KND GSK | Precision: | High Precision |
| Condition: | New | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Restaurant |
| Showroom Location: | Egypt, United Kingdom, Italy, France, Germany, Viet Nam, Philippines, Peru, Indonesia, Pakistan, Russia, Thailand, South Korea, Chile, Romania | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Other, Gearbox |
| Table Travel (mm): | 750x320 | Year: | 2023 |
| Port: | China Port | ||
Product Description
Products Description
UTMK320
Tool Milling Machine(CNC):
|
Specification
|
|
Unit
|
UTM320
|
UTM400
|
UTM450
|
|
|
Work space dimensions
|
|
mm
|
750x320
|
800x400
|
850x450
|
|
|
Vertical table dimensions
|
|
mm
|
890x225
|
1020x225
|
1190x250
|
|
|
T-slots,work table
|
|
mm
|
(5)14x63
|
(6)14x63
|
(7)14x63
|
|
|
T-slots,vertical table
|
|
mm
|
(3)14x63
|
(3)14x63
|
(3)14x63
|
|
|
Table load capacity
|
|
kg
|
160
|
200
|
300
|
|
|
Travel
Longitudinal(X) |
|
mm
|
405
|
500
|
600
|
|
|
Travel
Transverse(Y) |
|
mm
|
305
|
400
|
450
|
|
|
Travel
Vertical(Z) |
|
mm
|
400
|
400
|
450
|
|
|
Speed range
|
|
rpm
|
(2)40-2000
|
(2)40-2000
|
(2)40-2000
|
|
|
Spindle mount
|
|
|
NT40
|
NT40
|
NT40
|
|
|
|
|
|
|
|
|
|
|
Feeds X Y Z axis
|
|
mm/min
|
10-1000
|
10-1000
|
10-1000
|
|
|
Rapid feed
|
|
mm/min
|
1200
|
1200
|
1200
|
|
|
Quill stroke
|
|
mm
|
60
|
60
|
60
|
|
|
Main motor rating
|
|
kw
|
3.7
|
3.7
|
5.5
|
|
|
Feed motor rating
|
|
N.M
|
X:7.7
|
X:7.7
|
X:10
|
|
|
|
|
|
Y:7.7
|
Y:7.7
|
Y:10
|
|
|
|
|
|
Z:10
|
Z:10
|
Z:15
|
|
|
Dimensions (LxWxH)
|
|
mm
|
1500x1700x1800
|
1500x1700x1800
|
1600x1800x2000
|
|
|
Weight
|
|
Kg
|
1450
|
1550
|
1750
|
|
