CNC Systemn KTM250 Vertical Universal Turret Milling Machine for Industry Production
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | KTM250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,060.00/sets 1-2 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 750/850 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 400 | Table Travel (Z) (mm): | 103 |
| Spindle Taper: | R8 | Range Of Spindle Speed(r.p.m): | 65 - 4500 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 2.2 |
| Weight (KG): | 1400 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | New Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | CNC Turret Milling Machine |
| After-sales Service Provided: | Provided | Table Size: | 254x1270/254x1370mm |
| Longitudinal Travel (X): | 750/850mm | Cross Travel (Y): | 400mm |
| Vertical Travel (Z): | 103mm | Machine Type: | CNC Milling Machine |
| CNC Or Not: | CNC Systemn | Function: | Machining Metal |
| Color: | Opitional | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Construction Works , Energy & Mining |
| Showroom Location: | Kenya, South Korea, Chile, Colombia, Japan, Australia, Canada, United Kingdom, Italy, Germany, Indonesia, India, Russia, Thailand | Core Components: | Motor, Engine |
| Year: | 2024 | ||
Product Description
You can click on the picture to view the products you are interested in
One-Stop Shopping
Product Description

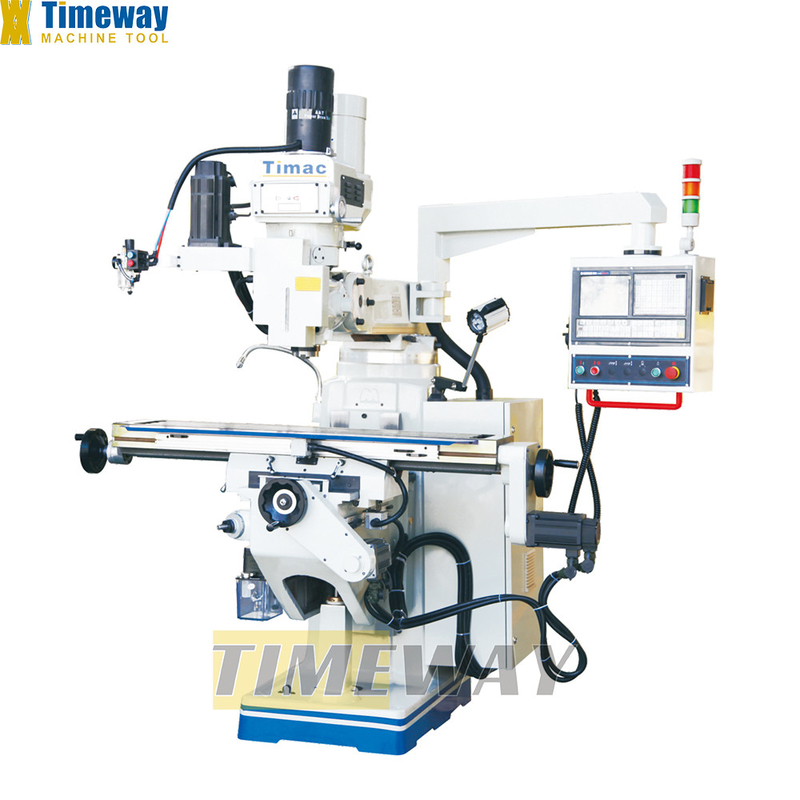

Turret Milling Machine KTM250
Complete with GSK CNC system, FANUC or SIEMENS for choice.

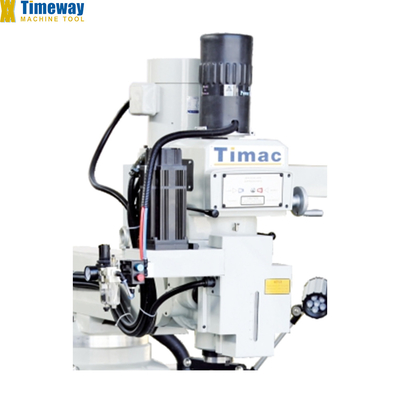

Mill head can be turned, tilted and swivelled making it extremely versatile.
Central lubrication system comes standard.

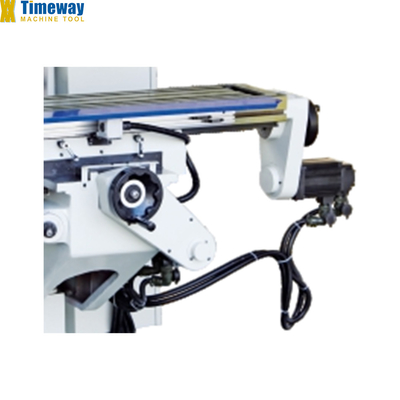

Feed and rapid feed in X, Y and Z-axis by driven servo motor.
Standard Accessories:
Setp Pulley Mill Head
Draw Bar
Working Lamp
Oil Pump
Coolant Pump
Chip Collecting Tray
Electric Cabinet
Toolbox And Tools
Optional Accessories:
Variable Speed Mill Head
Inverter Mill Head
Air Draw Bar
Slotting Head
DRO
Gear Box Power Feed
Power Feed
Vise
8pcs/set Collet Chuck
15pcs/set Collet Chuck
58pcs/set Clamping Kit
Universal Dividing Head
H/V rotary table
Tilting Rotary Table
Spindle Guard
Hung Up Panel Bracket
Luxury Panel Bracket
Luxury Al-alloy Panel Bracket
Table Guard
Luxury Table Guard
Quill Feed Ruler
Table Up-down Motor
Auto. Oil Pump
Plastic Splash Guard
Specification
SPECIFICATION | UNIT | KTM250 |
Table size | mm | 254x1270/254x1370 |
T-slot (No./width) | - | 3/16 |
Loading capacity | kg | 280 |
Longitudinal travel (X) | mm | 750/850 |
Cross travel (Y) | mm | 400 |
Spindle quill travel (Z) | mm | 103 |
X/Y/Z-axis rapid feed speed | mm/min | 5000 |
X/Y/Z-axis servo motor power | kw | 1 |
Knee vertical travel | mm | 400 |
Ram travel | mm | 470 |
Distance from spindle to table | mm | 0-400 |
Spindle speed | rpm | 16steps, 50HZ: 65-4500/60HZ: 80-5440 |
Spindle taper | - | R8 (Optional: ISO40) |
Main motor power | kw | 2.2 |
Mill head swivel angle | ° | ±90° |
Mill head tilting angle | ° | ±45° |
CNC controller | - | FANUC or SIEMENS or GSK |
Package size (LxWxH) | cm | 190x200x223 |
Gross weight | kg | 1400 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
