Economic Type 8mm Max. Module Gear Hobbing Machine with 40-250 9steps Spindle Speed
Product Details:
| Place of Origin: | China |
| Brand Name: | Timac |
| Certification: | ISO9001 CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,000.00/sets 1-2 sets |
| Packaging Details: | Wooden pallet or Wood case |
| Supply Ability: | 200 Set/Sets per Year |
|
Detail Information |
|||
| CNC Or Not: | CNC | Condition: | New |
|---|---|---|---|
| Type: | Gear Hobbing Machine | Voltage: | 380V/50HZ |
| Dimension(L*W*H): | 2640*1970*2160mm | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Color: | According To Customers' Require | Processing Types: | Gear Hobbing Metal |
| Max. Module Of Gears: | 8mm | Max. Worktable Speed: | 10rpm |
| Hobbing Spindle Speed: | 40-250(9steps) | Max.swivel Angle Of Hobbing Head: | ±45deg |
| Control System: | FANUC Or SIEMENS CNC System | Max. Dia. And Length Of Hobber: | 140*140mm |
| Worktable Dia.* Bore Dia.: | 510*80mm | Max. Diameter Of Workpiece: | 500mm |
| Weight: | 4600kg/5600kg | Power: | Power Capacity 17Kva |
| Port: | China Port | ||
Product Description

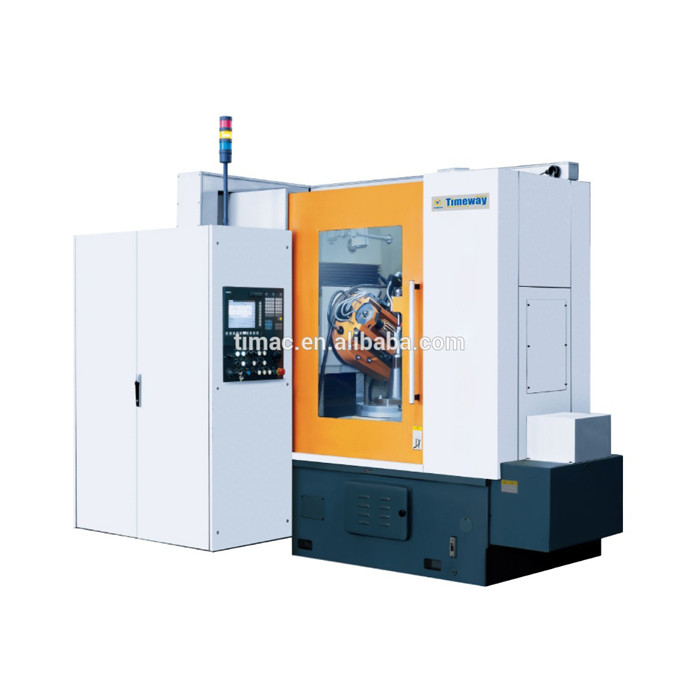

Economical Type High Precision CNC Gear Hobbing Machine

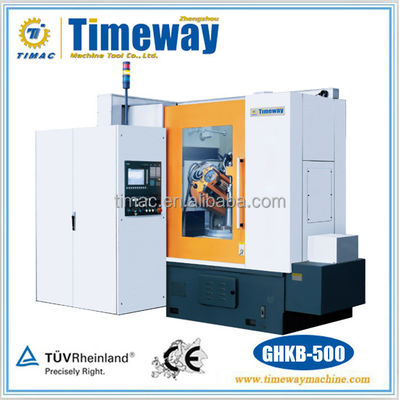

GHKB-500 GHKMB-500 GHKB-800 GHKMB-800
Machine Summary
The model GHKB-500/GHKB-800 is a 2-axis CNC gear hobbing machine. GHKMB-800/GHKMB-800 is a 2-axis precision CNC one. The CNC axes are: X-axis--radial feed motion, Z-axis--axial feed motion. On the principle of generating method, the machine is capable of cutting cylindrical spur and helical gears, crowning and slightly tapered gears, as well as sprockets and worm wheels. The machine is best suited for heavy-truck, mining machinery, ship and motorcar industries in jobbing or batch production.
Performance and Feature
1. With vertical design, the worktable moves to realize radial feed motion.
2. CNC axes are driven through preloaded ball screws, It can cut crowning and slightly tapered gears by axial and radial coordinated control.
3. The function of automatic hob shifting reduces tool's wear and increases tool's service life.
4. The key hydraulic components are available from the reputed suppliers.
5. The guideways are covered by teflon and adopt automatic lubrication.
6. Equipped with SIEMENS or FANUC system according to the customers' requirements.
7. The electrical cabinet is equipped with a air conditioner, which helps the electrical system work steady and reliable.
8. Several kinds of square cycles, climb or conventional cutting method, as well as the setting of feed rate can all be realized by programming.
9. According to customers' requirements, automatic chip conveyor may be supplied.
Remarks
Standard attachments: main machine, hob arbor assemblies Φ27,Φ32 and Φ40 one for each, a complete set of change gears, tool for installation and setup.
Technical Parameters
| Specifications | Units | GHKB-500 GHKMB-500 | GHKB-800 GHKMB-800 |
| Max. workpiece dia.(with/without workstay) | mm | 500 | 550/800 |
| Max. module | mm | 8/6 | 10/8 |
| Max. worktable speed | rpm | 10/8 | 8/6 |
| Spindle speed/steps | rpm | 40-250/9 | 40-250/9 |
| Distance between cutter axis and worktable surface | mm | 235-535 | 235-585 |
| Center distance between hob and worktable | mm | 30-330 | 50-530 |
Distance between bearing end surface of workstay and worktable surface | mm | 380-630 | 400-600 |
| Max. hob head swivel angle | deg | ±45 | ±45 |
| Max. hob axial travel | mm | 70 | 90 |
| Max. hob dimensions(diameter*length) | mm | 140*140 | 180*180 |
| Worktable dia.*bore dia. | mm | 510*80 | 650*80 |
| T-slot of worktable | mm | 6*M12 | 6*M16 |
| Total power/Main motor power | Kva/kw | 17/4 | 19/5.5 |
| Machine size | cm | 264*197*216 | 319*223*235 |
| N.W/G.W | kg | 4600/5600 | 6000/7000 |
| No. of cases | 2 cases in total | 2 cases in total |

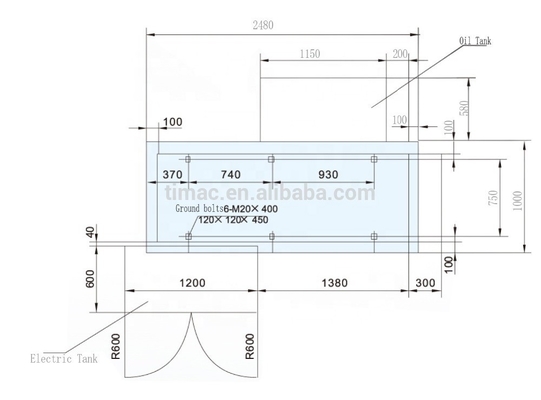

Foundation Plan
