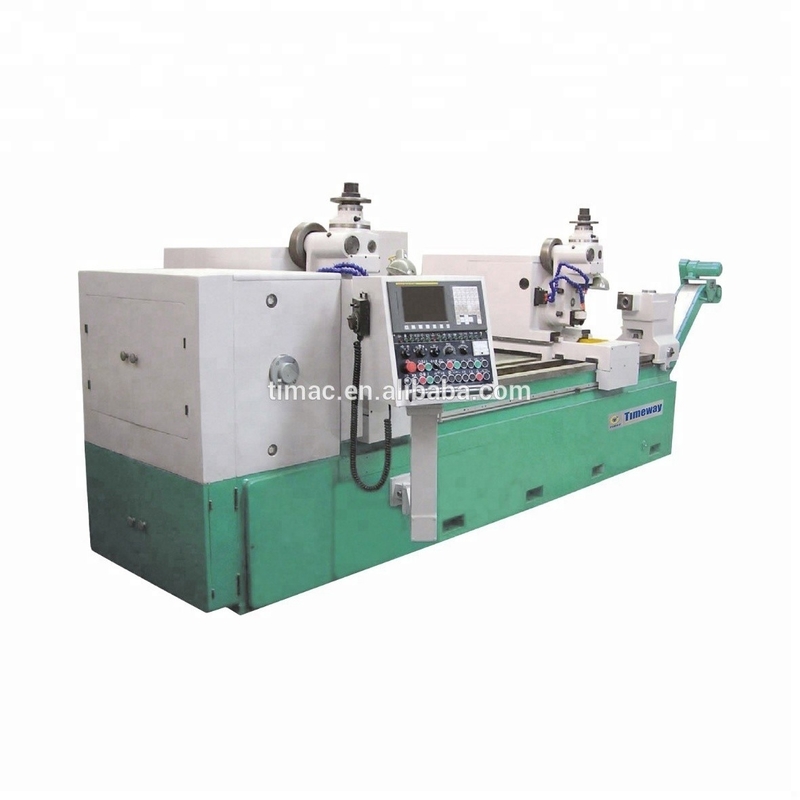

±0.015mm Positioning Accuracy Twin Spindle CNC Horizontal Spline Shaft Milling Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $100,000.00/sets >=1 sets |
| Packaging Details: | Standard package |
| Supply Ability: | 500 Set/Sets per Year |
|
Detail Information |
|||
| Type: | Horizontal | Range Of Spindle Speed(r.p.m): | 60 - 600 |
|---|---|---|---|
| Number Of Axes: | 2 | No. Of Spindles: | Twin |
| Machining Capacity: | Heavy Duty | Spindle Taper: | Other |
| Table Travel (X) (mm): | 200 | Table Travel (Y) (mm): | 160 |
| Table Travel (Z) (mm): | 130 | Positioning Accuracy (mm): | ±0.015 |
| Repeatability (X/Y/Z) (mm): | ±0.008 | Voltage: | 380V 50Hz |
| Dimension(L*W*H): | 5100*2135*1990mm | Key Selling Points: | Automatic |
| Weight (KG): | 13000 | Spindle Motor Power(kW): | 11 |
| Warranty: | One Year | Max. Table Load(kg): | 300 Kg |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| X-axis Travel: | 200mm | Y-axis Travel: | 160mm |
| Z-axis Travel: | 130mm | Product Name: | Horizontal Milling Machine |
| Name: | Spline Milling Machine | Keyword: | Spline Shaft Milling Machine |
| Max. Travel Of Tailstock Sleeve: | 50mm | Adjusting Angle Of Milling Head: | 15deg. |
| Function: | Straight Teeth | Weight: | 13000kg |
| Condition: | New | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Construction Works , Energy & Mining |
| Showroom Location: | Canada, Turkey, Germany, Brazil, Saudi Arabia, Indonesia, Romania, Ukraine, Australia | Core Components: | Bearing, Motor, Pump, Gear, Gearbox |
| Port: | China Port | ||
Product Description
Product Description
CNC High Efficient Horizontal Spline Shaft Milling Machine
Summary：
The machine is used for cutting straight tooth spline with all kind of tooth shape by using hobbing method.It is also used for cutting straightteeth collecting shaft gears as well as cutting taper splines and stepped gears.
Feature：
1.All machanical system and parts with high rigidity compact constructions and fine protection functions
2.The hob speed is adjusttable from 60 to 600 r/min steplessly,but it can reach from 200 to 600r/min
3.The maximum speed of workpiece is 100 rotor, and the cutting efficiency is rather high.
4.The dry cutting can be come true in the condition of wind cooling.
Specification

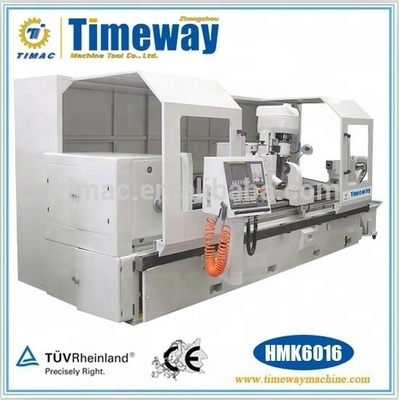

Specification | HMK6012 | HMK6012/1 | HMK6016 |
Max.diameter to be machined | Φ125mm | Φ125mm | Φ160mm |
Max.module to be machined | 4mm | 4mm | 5mm |
Max.length of the workpiece | 750mm | 1500mm | 3000mm |
Max.length of the machined | 600mm | 1350mm | 2750mm |
Range of teeth to be machined | 4~60(teeth) | 4~60(teeth) | 4~60(teeth) |
Center high of machine | 370mm | 370mm | 370mm |
Max.size of milling cutter to be mounted | Φ130x200mm | Φ130x200mm | Φ130x200mm |
Oveall dimensions (LxWxH) | 2530x1835x2100mm | 3175x1835x2100mm | 5100x2135x1990mm |
Weight of the machine | 8500kg | 9000kg | 13000kg |
