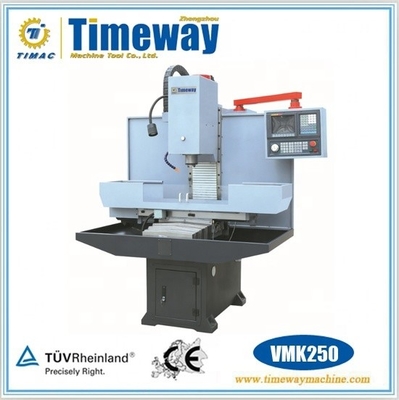

1000 kg Max. Table Load Vertical Bed-type CNC Miller with ±0.01 Repeatability X/Y/Z
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | VMK250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,000.00/sets 1-2 sets |
| Packaging Details: | Wooden box |
| Supply Ability: | 500 Set/Sets per Year |
|
Detail Information |
|||
| Type: | VERTICAL | Range Of Spindle Speed(r.p.m): | 3000 - 6000 |
|---|---|---|---|
| Number Of Axes: | 3 | No. Of Spindles: | Single |
| Machining Capacity: | Light Duty | Spindle Taper: | BT30 |
| Table Travel (X) (mm): | 450 | Table Travel (Y) (mm): | 260 |
| Table Travel (Z) (mm): | 380 | Positioning Accuracy (mm): | ±0.02 |
| Repeatability (X/Y/Z) (mm): | ±0.01 | Voltage: | 380V 50Hz |
| Dimension(L*W*H): | 1200*1500*2100mm | Key Selling Points: | Competitive Price |
| Weight (KG): | 1400 | Spindle Motor Power(kW): | 2.2 |
| Warranty: | 1 Year | Max. Table Load(kg): | 1000 Kg |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | CNC Or Not: | CNC |
| Color: | According To Your Need | Table Size: | 900*250mm |
| Travel: | 450*260*380mm | Spindle Speed: | 6000rpm |
| Tool Magazine: | 10 Tools | Control System: | GSK CNC System |
| Condition: | New | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops |
| Showroom Location: | Italy, France, Brazil, Peru | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox |
| Port: | China Port | ||
Product Description

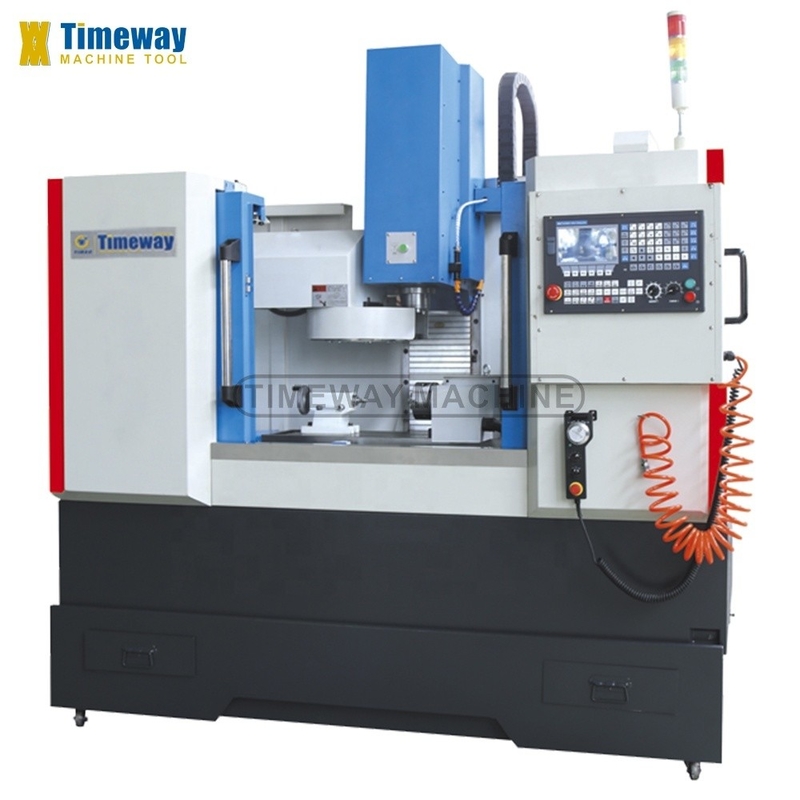

Economic Type CNC Vertical Bed-type Miller

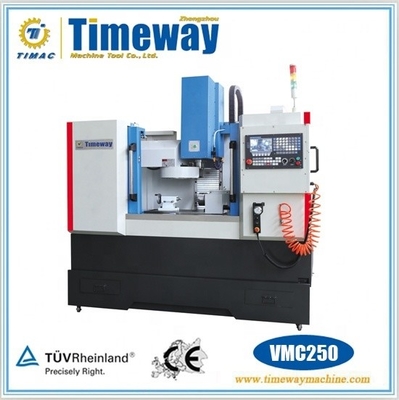

VMK250 VMC250
Technical Parameters
| Specification | Unit | VMC250 | VMK250 |
| Main motor power | kw | 2.2 | 2.2 |
| Highest spindle speed | rpm | 6000 | 6000(optional 3000) |
| Z-axis motor torque | N.m | 7.7 | 7.7 |
| X-axis motor torque | N.m | 6 | 6 |
| Y-axis motor torque | N.m | 6 | 6 |
| The spindle taper hole |
| BT30 | BT30 |
| Worktable size | mm | 900x250 | 900*250 |
| Tool storage capacity | T | 10 | - |
| Stroke (X/Y/Z-axis) | mm | 450x260x380 | 450x260x380 |
| The spindle axis to guide the distance the post | mm | 330 | 330 |
| The distance of spindle end face to the worktable | mm | 50-430 | 50-430 |
| Rapid movement(X/Y/Z-axis) | m/min | 6/5/4 | 6/5/4 |
| The spindle axis to the vertical tolerance of worktable face | mm | ≤0.02 | ≤0.02 |
| Positioning accuracy | mm | 0.02 | 0.02 |
| Repeat positioning accuracy | mm | 0.01 | 0.02 |
| Machine dimension(L*W*H) | mm | 2200x1650x2200 | 1200*1500*2100 |
| Machine weight | kg | 1800 | 1400 |
Standard Configuration
GSK 150im CNC system
Optional Configuration
HNC-18i/21 MD
GSK-983M CNC system
KND 100M CNC system
