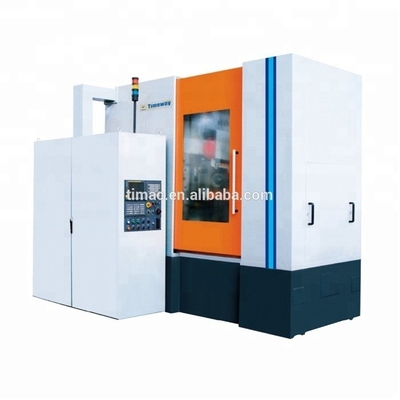

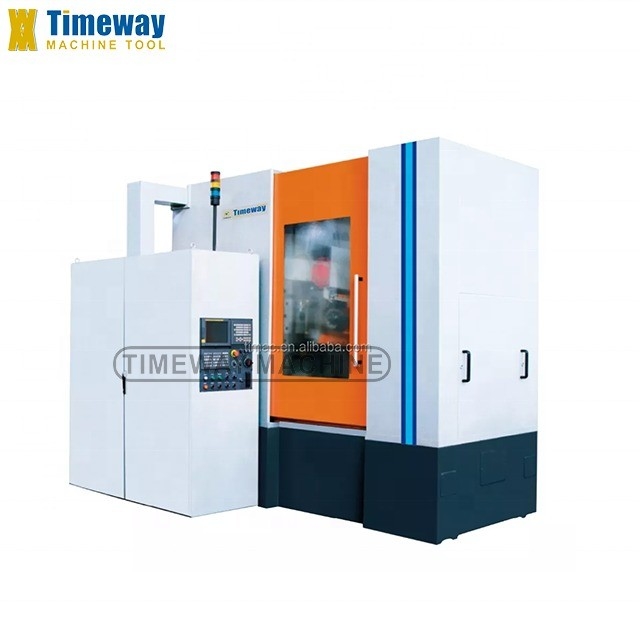

17500kg CNC High Speed Gear Hobbing Machine with 700rpm Hobbing Spindle Speed
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Certification: | ISO9001 CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $150,000.00/sets 1-2 sets |
| Packaging Details: | Wooden pallet or Wood case |
| Supply Ability: | 200 Set/Sets per Year |
|
Detail Information |
|||
| CNC Or Not: | CNC | Condition: | New |
|---|---|---|---|
| Type: | Gear Hobbing Machine | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Voltage: | 380V/50HZ | Dimension(L*W*H): | As Actual Situation |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Weight (KG): | 17500 | Power (kW): | 18 |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Other | Showroom Location: | Egypt, Italy, India, Russia, Chile, Colombia, South Africa, Malaysia |
| Processing Types: | Gear Hobbing Metal | Max. Module Of Gears: | 12mm |
| Max. Worktable Speed: | 35rpm | Hobbing Spindle Speed: | 700rpm |
| Number Of Teeth: | 6-600 | Max. Dia. And Length Of Hobber: | 170*230mm |
| Control System: | FANUC 18i CNC System | Max. Diameter Of Workpiece: | 400mm |
| Weight: | 17500kg | Port: | China Port |
Product Description
Products Description
Performance and Feature:
1. the machine is of 6 axes with 4 axis coordinated. Its CNC axis are:
A-axis--hob head swivel motion;
B-axis--hob spindle rotary motion;
C-axis--worktable rotary motion;
X-axis--radial feed motion;
Y-axis--tangential feed motion;
Z-axis--axial feed motion;
Four coordinated control axes: B, C, X and Z axis.
1. the machine is of 6 axes with 4 axis coordinated. Its CNC axis are:
A-axis--hob head swivel motion;
B-axis--hob spindle rotary motion;
C-axis--worktable rotary motion;
X-axis--radial feed motion;
Y-axis--tangential feed motion;
Z-axis--axial feed motion;
Four coordinated control axes: B, C, X and Z axis.
2. Carry out index and differential compensation motions by electronic gear box(EGB).
3. High speed heavy-duty hobbing with multi-start high speed hob can be carried out.
4. Fault diagnostics function is available.
5. Quickly retraction protection; in case of power off or fault occurred, synchronously and quickly retract the hob to avoid collision.
6. Compact construction design to save floor space; reasonable arrangement so as to operate easily.
7. Double-wall, rib-reinforced and symmetric construction design for bed and column ensure stable thermal distribution of the machine.
8. Large power AC spindle motor is used for the spindle; high precision helical gearing is adopted for transmission; one-tooth difference clearance eliminating mechanism is arranged at the end of transmission chain.
9. Special spindle bearing are used for supporting the hob spindle, steel inserted guideway and ample rectangle guideway are used for slide, thus ensure the machine has high rigidity, good anti-vibration ability and stable accuracy.
10. Equipped with hob quick change-over & hob arbor auto. clamping device, and spindle overload auto monitoring and alarm device.
11. Super precision bearings are used for supporting worktable spindle, super precision Chinese patent double worm gearings system are used for worktable to carry out clearance-free transmission, a clamping cylinder is arranged at the bottom of the worktable.
12. Bulky components are of double-wall, rib-reinforced and symmetric construction design, thus greatly increase the rigidity of the machine so as to meet the requirements of high speed and heavy-duty hobbing.
13. Chips are quickly evacuated from the machine bed by an auto chip flushing device, coolant is cooled by oil chiller and symmetrically circulating between the machine bed and the outside arranged coolant tank.
14. Reasonable arrangement of popelines and cables ensure the reliability of the CNC system.
15. Separated hydraulic, lubrication and cooling systems with oil chillers.
16. Parameter programming.
3. High speed heavy-duty hobbing with multi-start high speed hob can be carried out.
4. Fault diagnostics function is available.
5. Quickly retraction protection; in case of power off or fault occurred, synchronously and quickly retract the hob to avoid collision.
6. Compact construction design to save floor space; reasonable arrangement so as to operate easily.
7. Double-wall, rib-reinforced and symmetric construction design for bed and column ensure stable thermal distribution of the machine.
8. Large power AC spindle motor is used for the spindle; high precision helical gearing is adopted for transmission; one-tooth difference clearance eliminating mechanism is arranged at the end of transmission chain.
9. Special spindle bearing are used for supporting the hob spindle, steel inserted guideway and ample rectangle guideway are used for slide, thus ensure the machine has high rigidity, good anti-vibration ability and stable accuracy.
10. Equipped with hob quick change-over & hob arbor auto. clamping device, and spindle overload auto monitoring and alarm device.
11. Super precision bearings are used for supporting worktable spindle, super precision Chinese patent double worm gearings system are used for worktable to carry out clearance-free transmission, a clamping cylinder is arranged at the bottom of the worktable.
12. Bulky components are of double-wall, rib-reinforced and symmetric construction design, thus greatly increase the rigidity of the machine so as to meet the requirements of high speed and heavy-duty hobbing.
13. Chips are quickly evacuated from the machine bed by an auto chip flushing device, coolant is cooled by oil chiller and symmetrically circulating between the machine bed and the outside arranged coolant tank.
14. Reasonable arrangement of popelines and cables ensure the reliability of the CNC system.
15. Separated hydraulic, lubrication and cooling systems with oil chillers.
16. Parameter programming.

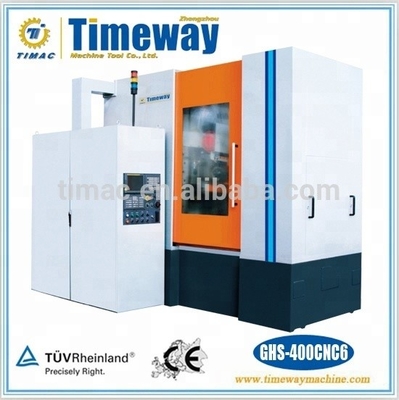

Specifications | Units | GHS-400CNC6 | GHS-500CNC6 |
Max. workpiece dia. | mm | 400 | 500 |
Max. workpiece module | mm | 12 | 12 |
Max. axial travel | mm | 400 | 400 |
No. of teeth | 6-600 | 6-600 | |
Max. hob dimension(dia.*length) | mm | Φ170*230 | Φ170*230 |
Hob spindle taper bore | ISO50 | ISO50 | |
Worktable dia. | mm | Φ500 | Φ500 |
Max. hob head swivel angle | deg | ±45 | ±45 |
Center distance between hob and worktable | mm | 45-315 | 45-345 |
Distance between hob axis and worktable surface | mm | 200-600 | 200-600 |
Distance between center end face and worktable surface | mm | 360-860 | 360-860 |
Max. tangential travel(Y-axis) | mm | 200 | 200 |
Max. spindle speed(B-axis) | rpm | 700 | 700 |
Max. worktable speed(C-axis) | rpm | 35 | 35 |
Radial rapid travel(X-axis) | mm/min | 3000 | 3000 |
Tangential rapid travel(Y-axis) | mm/min | 1500 | 1500 |
Axial rapid travel(Z-axis) | mm/min | 3000 | 3000 |
Linear coordinate resolution of CNC axis | deg. | 0.001 | 0.001 |
Rotary coordinate resolution of CNC axis | deg. | 0.001 | 0.001 |
Main motor power | kw | 18 | 18 |
Total power | Kva | 55/50HZ | 55/50HZ |
Main machine weight | kg | 17500 | 17500 |
Φ40 hob arbor assembly Auto hob clamping device Workpiece fixture Hydraulic system Cooling system Lubrication system Metered lubrication system Oil chiller for coolant Oil chiller for hydraulic and lubrication oil FANUC 18i CNC system 10.4" color display RS232 interface Machine data storage disc Electrical cabinet with air conditioner Indicating cabinet with air conditioner Indicating lamp for machine status Dual-hand control function Safety switch Fully-enclosed safe guard Oil mist collector Chip conveyor Chip cart Manual chip flushing oil gun Isolating vibration pads Special tools for installation and adjustment | SIEMENS 840D CNC system Man-machine conversation grogramming Machining wormwheel in tangential method Workpiece fixture Auto tooth alignment function Deburring device Function for cutting cone root spline Workpiece auxiliary support Optional hob arbor assembly Commercial Components Japan FANUC 18i or Germany SIEMENS 840D CNC system Germany or Japan spindle bearing and other key bearings Taiwan HIWIN ball screw Germany or USA hydraulic component Germany sealing component South Korea locking nut Germany P+F encoder England oil mist collector Taiwan oil chiller Nanjing metered lubrication system · |
