Large Module Gears CNC Gear Hobbing Machine with Max. Workpiece Diameter of 1000mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Timac TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $150,000.00/sets >=1 sets |
| Packaging Details: | Wooden pallet or Wood case |
| Supply Ability: | 150 Set/Sets per Year |
|
Detail Information |
|||
| CNC Or Not: | CNC | Condition: | New |
|---|---|---|---|
| Type: | Gear Hobbing Machine | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Motor |
| Voltage: | 380V/50HZ | Dimension(L*W*H): | 4430*2700*2600mm |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Weight (KG): | 15400 | Applicable Industries: | Manufacturing Plant, Other |
| Showroom Location: | Morocco, Kenya, Chile, Algeria, Sri Lanka, Bangladesh, Kazakhstan, Ukraine, Nigeria, Tajikistan | Color: | According To Customers' Require |
| Processing Types: | Gear Hobbing Metal | Max. Module Of Gears: | 20mm |
| Max. Worktable Speed: | 5rpm | Hobbing Spindle Speed: | 24-187(7steps) |
| Max.swivel Angle Of Hobbing Head: | ±60deg | Control System: | SIEMENS 802D CNC System |
| Max. Dia. And Length Of Hobber: | 260*220mm | Torque Of X And Z Axis Motor: | 27N.m |
| Max. Diameter Of Workpiece: | 1000mm | Port: | China Port |
Product Description
Product Description

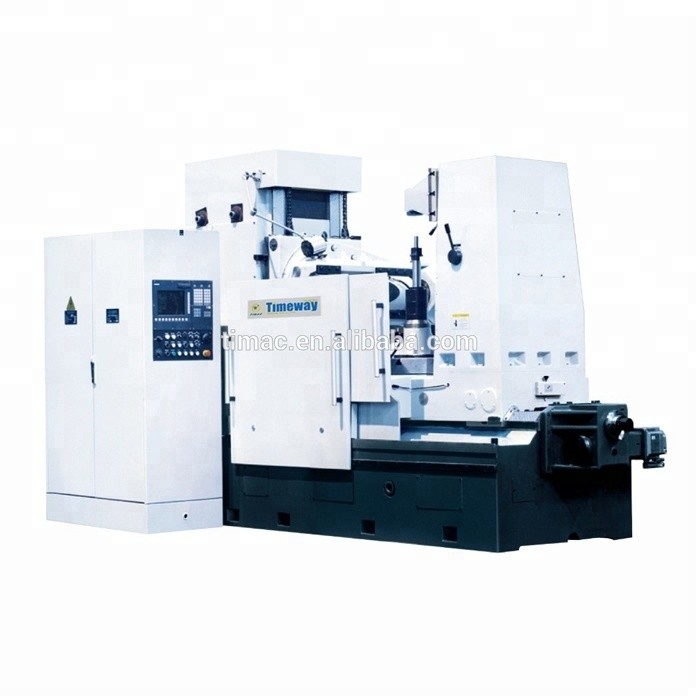

CNC Gear Hobbing Machine

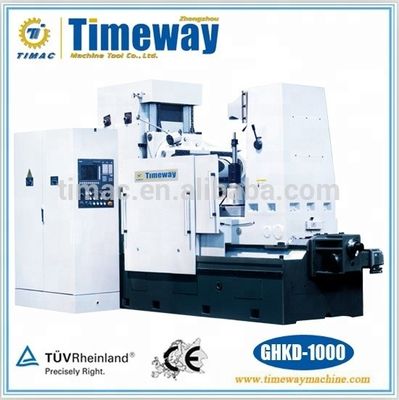

The model GHKD-1000 large-module CNC gear hobbing machine, which is developed on the basis of the model GHKA-1250 CNC gear hobbing machine, is capable of cutting large-module workpiece, even up to 20mm module.
The machine is best suited for mine, oil, marine, engineering machinery industries for hobbing large gears.
Feature：
1.It is 2-axis CNC machine: X-axis radial feed motion and Z-axis axial feed motion, which are all driven by AC servo-motors.
2. The CNC system adopts German SIEMENS-802D.

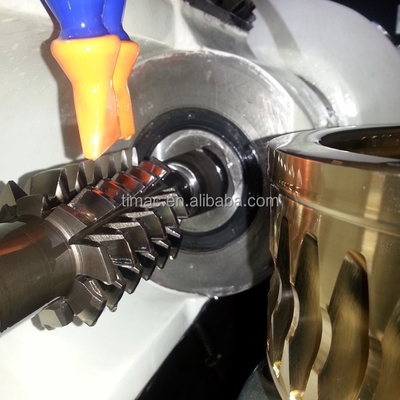

3. On the principle of continious indexing, the machine is capable of cutting cylindrical spur and helical gears, crowning and slightly tapered gears as well as worm wheels by radial cutting nethod.
4. Axial and radial feed axes are driven by AC servo-motors through preloaded ball screws.
Specification
Specifications | Units | GHKD-1000 |
Max. workpiece dia. with workstay | mm | 1000 |
Max. module | mm | 20 |
Min. tooth number | 12 | |
Max. worktable speed | rpm | 5 |
Worktable dia. *hole dia. | mm | 950*200 |
Hob speed/steps | rpm | 24-187/7 |
Distance between hob axis and worktable surface | mm | 200-730 |
Max. center distance between hob axis and worktable | mm | 100-740 |
Distance between tailstock end face and worktable surface | mm | 580-1000 |
Max. hob diameter*length | mm | Φ260*220 |
Max. hob head swivel angle | deg | ±60 |
X and Z motors torque | N.m | 27 |
Total power | kw | 32.75 |
Main motor power | kw | 15 |
T-slot of worktable | mm | 6*M20 |
Overall dimension(L*W*H) | cm | 443*270*260 |
N.W/G.W | kg | 15400/16600 |
No. of cases | 2 cases in total |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile

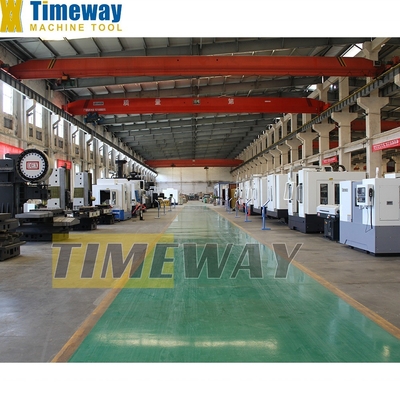

Factory Display：
