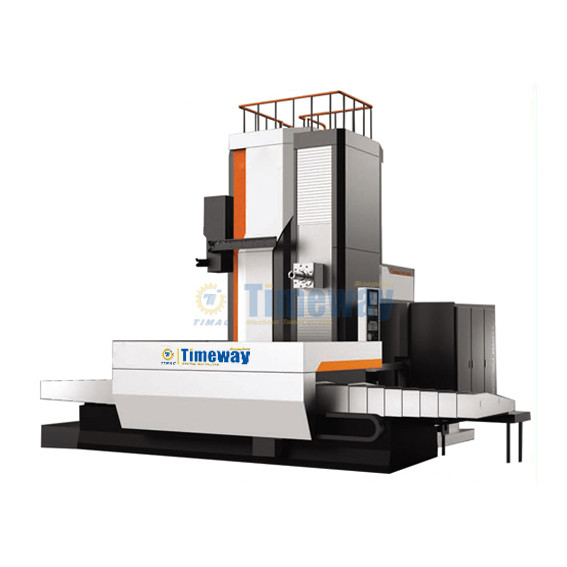

Table Travel Z 2-6000mm Horizontal Boring and Milling Machine Tools for Your Workshop
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $70,000.00/sets 1-2 sets |
| Packaging Details: | Iron Frame or according practical situation |
| Supply Ability: | 100 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | 4 | Type: | Horizontal |
| Dimension(L*W*H): | 5900*6850*5250mm | Weight (T): | 35 T |
| Table Size (mm): | 1400x1600 | CNC Control System: | GSK, FANUC, MITSUBISHI, Siemens |
| Number Of Axes: | 4 | Table Travel (X) (mm): | 2-6000 |
| Table Travel (Y) (mm): | 2-6000 | Table Travel (Z) (mm): | 2-6000 |
| Positioning Accuracy (mm): | ±4 | Repeatability (X/Y/Z) (mm): | 2 |
| Range Of Spindle Speed(r.p.m): | 0 - 3000 R.p.m | Spindle Motor Power(kW): | 18/22.5 |
| Max. Table Load(kg): | 8000 Kg | Feed Speed(mm/min): | 0 - 3000 Mm/min |
| Min. Time Of Tool Change(s): | 6 | Tool Magazine Capacity: | Other, 16, 20, 12 |
| Key Selling Points: | High-accuracy | Warranty: | One Year |
| Voltage: | According To Customers' Need | Marketing Type: | New Product 2023 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC System: | FANUC Or SIEMENS Or Others |
| Control Type: | Automatic | Accuracy: | High Precision |
| Table Size: | 1400*1600mm | Max. Capacity: | 8t |
| Color: | According To Customers' Requirement | Boring Spindle Diameter: | 110mm |
| Weight: | 35000kg | Power: | 18/22.5kw |
| Applicable Industries: | Manufacturing Plant, Other, Advertising Company | Showroom Location: | Egypt, Turkey, Viet Nam, Brazil, Indonesia, Spain, Kenya, Colombia |
| Core Components: | Motor | Rapid Feed Speed(m/min): | 2-3000 |
| Port: | China Port | ||
Product Description
Products Description
Specifications | Units | PBM-1120 | PBM-1120E | PBM-1330 | PBM-1330E |
Diameter | mm | 110 | 110 | 130 | 130 |
Tapered bore | ISO 7:24 BT50 | ISO 7:24 BT50 | ISO 7:24 BT50 | ISO 7:24 BT50 | |
Spindle motor | kw | 18.5/22.5 | 18.5/22.5 | 22/30 | 22/30 |
Maximal torque | Nm | 2000 | 2000 | 3000 | 3000 |
Maximal speed | rpm | 3000 | 1500 | 2500 | 1200 |
Working table | m | 1.4*1.6 | 1.4*1.6 | 1.8*2.0 | 1.8*2.0 |
Positioning precision | ″ | ±4 | ±5 | ±6 | ±6 |
Repeated positioning precision | ″ | ±2 | ±3 | ±3.5 | ±4 |
Load bearing | kg | 8000 | 5000 | 25000 | 12000 |
Travel of X/Y/Z axis | mm | 2000/1600/1200 | 2000/1600/1200 | 3000/2000/1600 | 3000/2000/1600 |
Travel of W-axis | mm | 600 | 600 | 800 | 800 |
Working table transverse(X) | mm/min | 2-6000 | 2-6000 | 2-6000 | 2-6000 |
Gear box vertical(Y) | mm/min | 2-6000 | 2-6000 | 2-6000 | 2-6000 |
Column longitudinal(Z) | mm/min | 2-6000 | 2-6000 | 2-6000 | 2-6000 |
Boring spindle axial(W) | mm/min | 2-2000 | 2-2000 | 2-2000 | 2-2000 |
Working table transverse(X) | mm/min | 10000 | 10000 | 10000 | 10000 |
Gear box vertical(Y) | mm/min | 10000 | 10000 | 10000 | 10000 |
Column longitudinal(Z) | mm/min | 10000 | 10000 | 10000 | 10000 |
Boring spindle axial(W) | mm/min | 3000 | 3000 | 3000 | 3000 |
Total weight of machine tool | kg | 35000 | 33500 | 55000 | 52000 |
Floor area of machine tool | mm | 5900*6850*5200 | 5900*6850*5200 | 7900*7950*5350 | 7900*7950*5350 |
GSK 25iMC CNC system Manual rotary table with four positions indexing Protection covers for guideways Manual pulse (MPG) Work lamp Pilot lamp USB I/O interface Hydraulic system Auto. Cooling system Auto.lubricating system Air conditioner for electric cabinet General tools Operation manual | Flat right-angle milling head Universal milling head Right-angle milling head Extended milling head |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
