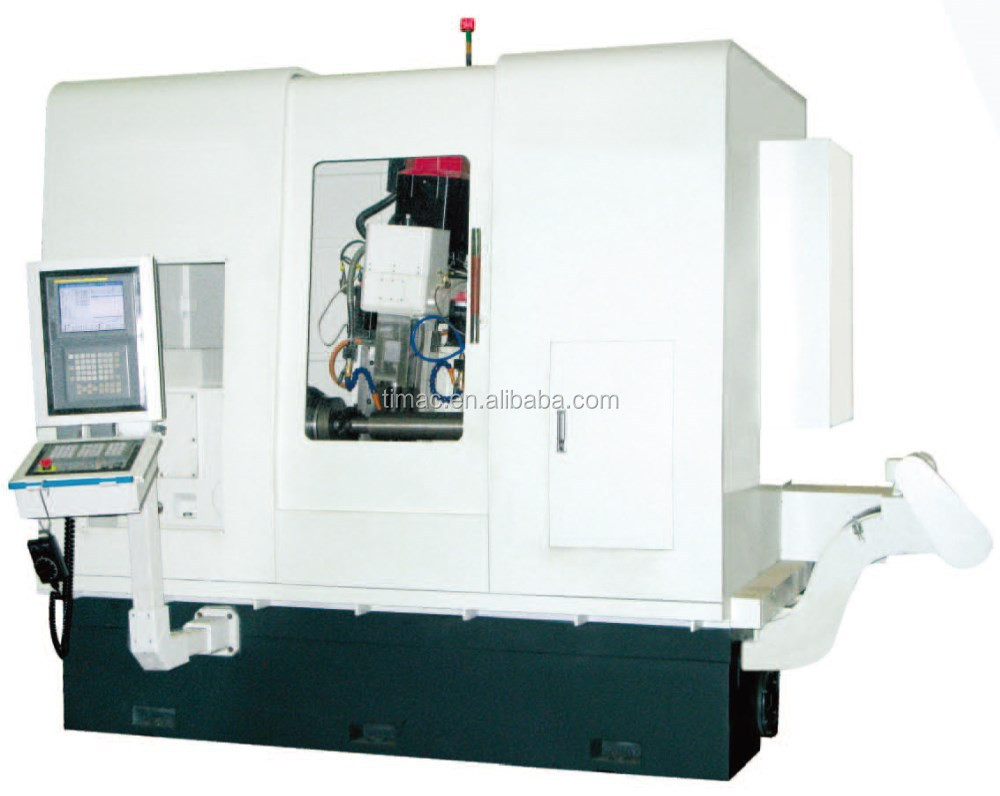

370mm Center High CNC Spline Shaft Milling Machine Horizontal Gear Hobbing for Milling
Product Details:
| Place of Origin: | China |
| Brand Name: | Tiamc, Timeway |
| Certification: | ISO9001:2008, CE, TUV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10,000.00/sets 1-2 sets |
| Packaging Details: | Wooden case (fumigated) |
| Supply Ability: | 100 Set/Sets per Year |
|
Detail Information |
|||
| CNC Or Not: | CNC | Condition: | New |
|---|---|---|---|
| Type: | Gear Hobbing Machine | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Voltage: | As Require | Dimension(L*W*H): | 2500~3250x2470x2450mm |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Weight (KG): | 9000 | Power (kW): | 15 |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Energy & Mining | Showroom Location: | Italy, France, Brazil, Peru, India, Mexico |
| After-sales Service Provided: | Online Support | Max.diameter To Be Machined: | 200mm |
| Max.module To Be Machined: | 5mm | Max.length Of The Workpiece: | 750-1500mm |
| Max.length Of The Machined: | 650-1350mm | Range Of Teeth To Be Machined: | 4~200(teeth) |
| Center High Of Machine: | 370mm | Max.travel Of Tailstock Sleeve: | 70mm |
| Port: | China Port | ||
Product Description
Features:
1. The machine is used for cutting straight-tooth and helicaitooth spline shaft,and straight-tooth,helical-tooth cylindrical geal workpiece with all kinds of tooth shape by using hobbing method.It can also hob straight-tooth and helical-tooth connecting shaft gear,and cutting taper spline,cone bottom spline as well as stepped gear.
2. The machine controls index by using electrical gear cabinet,the action of adjustment drive and shift of hob is finished automatically by CNC.And the precision is very high,it has wider range of speed of hobbing cutter .The hobbing speed is adjustable from 200r/min to 1200r/min steplessly.The maximum speed of workpiece is 200 rotors,and the cutting efficiency is rather high,as well as the cry cutting can be come ture in the condition of wind colling.
3. The machine can finish automatically single index and it can single index and it can single cut by using palte cutter.
4. Two different specification hobbing cutters can be mounted on the machine at the same time.It can cut different specification spline shaft and gear by installing the workpiece only once.
5. It is suitable for cutting all kinds of teeth shape spline shaft and gear in machine building industries.
| Specification | HMK6020 |
| Max.diameter to be machined | Φ200mm |
| Max.module to be machined | 5mm |
| Max.length of the workpiece | 750~1500mm |
| Max.length of the machined | 650~1350mm |
| Range of teeth to be machined | 4~200(teeth) |
| Center high of machine | 370mm |
| Max.size of milling cutter to be mounted | Φ130x200mm |
| Max.travel of tailstock sleeve | 70mm |
| Adjusting angle of milling head | ±45(degree) |
| No.of axes to be countrolled | 6 axis |
| No.of axes to be followed | 4 axis |
| Gears to be machined | straight teeth/helical teeth |
| Oveall dimensions (LxWxH) | 2500~3250x2470x2450mm |
| Weight of the machine | 9000~12000kg |
