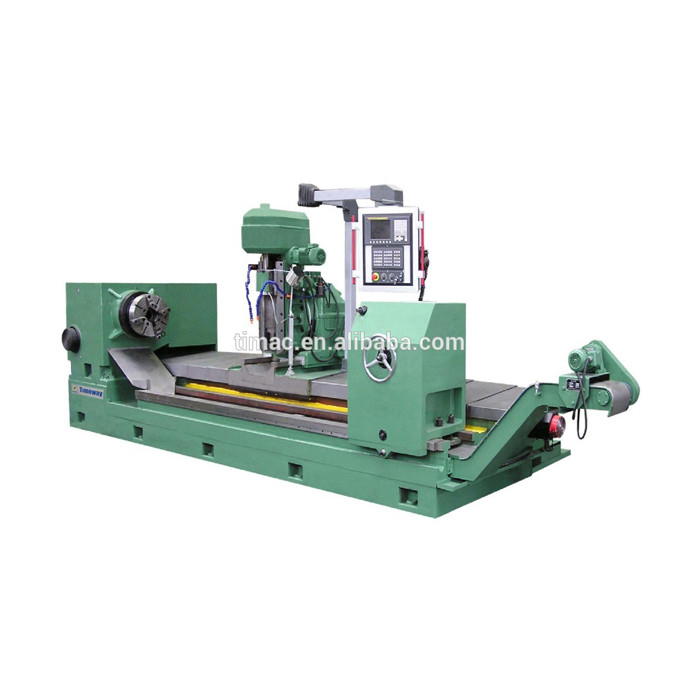

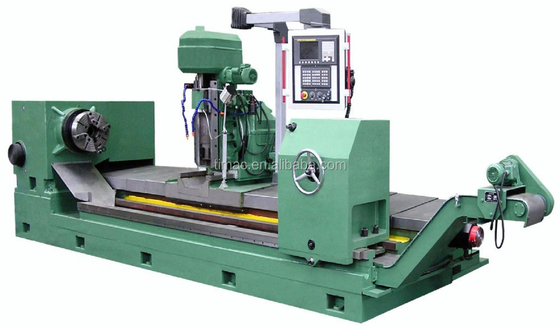

CNC Spline Shaft Milling Machine Horizontal Gear Hobbing Machine for CNC Machining
Product Details:
| Place of Origin: | China |
| Brand Name: | Tiamc, Timeway |
| Certification: | ISO9001:2008, CE, TUV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $65,000.00/sets 1-2 sets |
| Packaging Details: | Wooden case (fumigated) |
| Supply Ability: | 100 Set/Sets per Year |
|
Detail Information |
|||
| CNC Or Not: | CNC | Condition: | New |
|---|---|---|---|
| Type: | Gear Hobbing Machine | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, Gearbox |
| Voltage: | As Require | Dimension(L*W*H): | 5100x2135x1990mm |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Weight (KG): | 13000 | Power (kW): | 30 |
| Applicable Industries: | Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | United States, Italy, Peru, Pakistan, Russia, Thailand, South Korea, Uzbekistan, Australia |
| After-sales Service Provided: | Online Support | CNC Gear Hobbing Machine: | Dia. 160x3000mm |
| CNC Spline Shaft Milling Machine: | Dia. 160x3000mm | Weight: | 13000kg |
| Port: | China Port | ||
Product Description
Product Description
Features:
1. The machine is used for cutting straight tooth spline with all kind of tooth shape by using hobbing method.It is also used for cutting straightteeth collecting shaft gears as well as cutting taper splines and stepped gears.
2. All machanical system and parts with high rigidity compact constructions and fine protection functions,the hob speed is adjusttable from 60 to 600 r/min steplessly,but it can reach from 200 to 600r/min,the maximum speed of workpiece is 100 rotor, and the cutting efficiency is rather high.
3. In addition,the dry cutting can be come true in the condition of wind cooling.
| Specification | HMK6016 |
| Max.diameter to be machined | Φ160mm |
| Max.module to be machined | 5mm |
| Max.length of the workpiece | 3000mm |
| Max.length of the machined | 2750mm |
| Range of teeth to be machined | 4~60(teeth) |
| Center high of machine | 370mm |
| Max.size of milling cutter to be mounted | Φ130x200mm |
| Max.travel of tailstock sleeve | 50mm |
| Adjusting angle of milling head | ±15(degree) |
| No.of axes to be countrolled | 2 axis |
| No.of axes to be followed | 2 axis |
| Gears to be machined | straight teeth |
| Oveall dimensions (LxWxH) | 5100x2135x1990mm |
| Weight of the machine | 13000kg |
