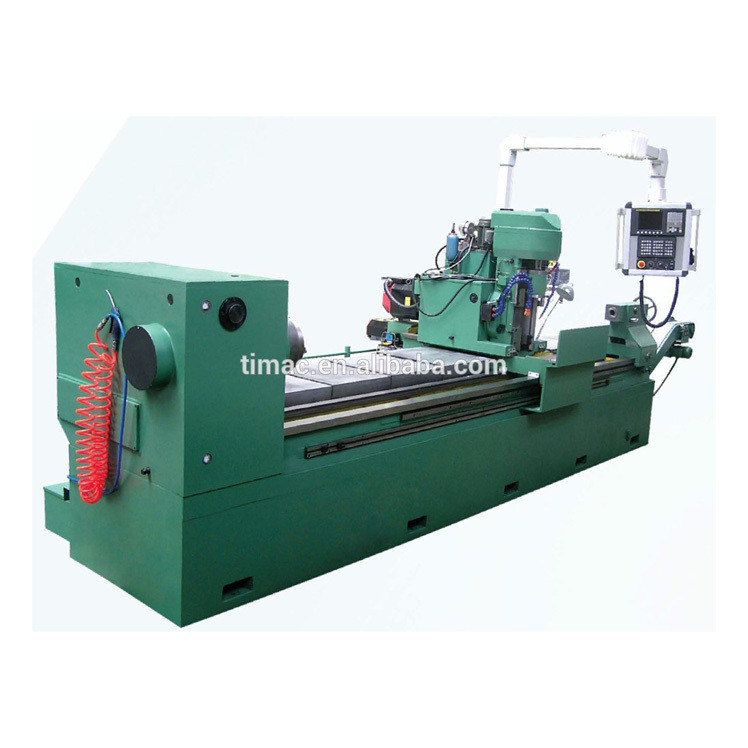

Upgrade Your Manufacturing with Timeway's CNC Spline Shaft Milling Gear Hobbing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Tiamc, Timeway |
| Certification: | ISO9001:2008, CE, TUV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $125,900.00/sets 1-1 sets |
| Packaging Details: | Wooden case (fumigated) |
| Supply Ability: | 100 Set/Sets per Year |
|
Detail Information |
|||
| CNC Or Not: | CNC | Condition: | New |
|---|---|---|---|
| Type: | Gear Hobbing Machine | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Voltage: | As Require | Dimension(L*W*H): | 6600~8800x2200x2220mm |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Weight (KG): | 15000 | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Construction Works |
| Showroom Location: | Viet Nam, Peru, Thailand, Argentina, Romania, Malaysia | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| CNC Gear Hobbing Machine: | Dia. 300x3000-6000mm | CNC Spline Shaft Milling Machine: | Dia. 400x3000-6000mm |
| Weight: | 16000-23500kg | Warranty Period: | 1 Year |
| Port: | China Port | ||
Product Description
Features:
1. The machine is used for cutting straight-tooth and helicaitooth spline shaft,and straight-tooth,helical-tooth cylindrical geal workpiece with all kinds of tooth shape by using hobbing method.It can also hob straight-tooth and helical-tooth connecting shaft gear,and cutting taper spline,cone bottom spline as well as stepped gear.
2. The machine controls index by using electrical gear cabinet,the action of adjustment drive and shift of hob is finished automatically by CNC. As well as the cutting efficiency is rather high, the cry cutting can be come ture in the condition of wind colling.
3. The machine can finish automatically single index and it can single index and it can single cut by using palte cutter.
4. It is suitable for cutting all kinds of teeth shape spline shaft and gear in machine building industries.
| Specification | HMK6030 | HMK6040A |
| Max.diameter to be machined | Φ300mm | Φ400mm |
| Max.module to be machined | 10mm | 12mm |
| Max.length of the workpiece | 3000~6000mm | 3000~6000mm |
| Max.length of the machined | 2500~5500mm | 2500~5500mm |
| Range of teeth to be machined | Arbitraty | Arbitraty |
| Center high of machine | 470mm | 470mm |
| Max.size of milling cutter to be mounted | Φ180x230mm | Φ200x240mm |
| Max.travel of tailstock sleeve | 70mm | 70mm |
| Adjusting angle of milling head | ±45(degree) | ±45(degree) |
| No.of axes to be countrolled | 4~6 axis | 4~6 axis |
| No.of axes to be followed | 4 axis | 4 axis |
| Gears to be machined | straight teeth/helical teeth | straight teeth/helical teeth |
| Oveall dimensions (LxWxH) | 6600~8800xx2200x2220mm | 6600~8800x2200x2220mm |
| Weight of the machine | 16000~23000kg | 16500~23500kg |
