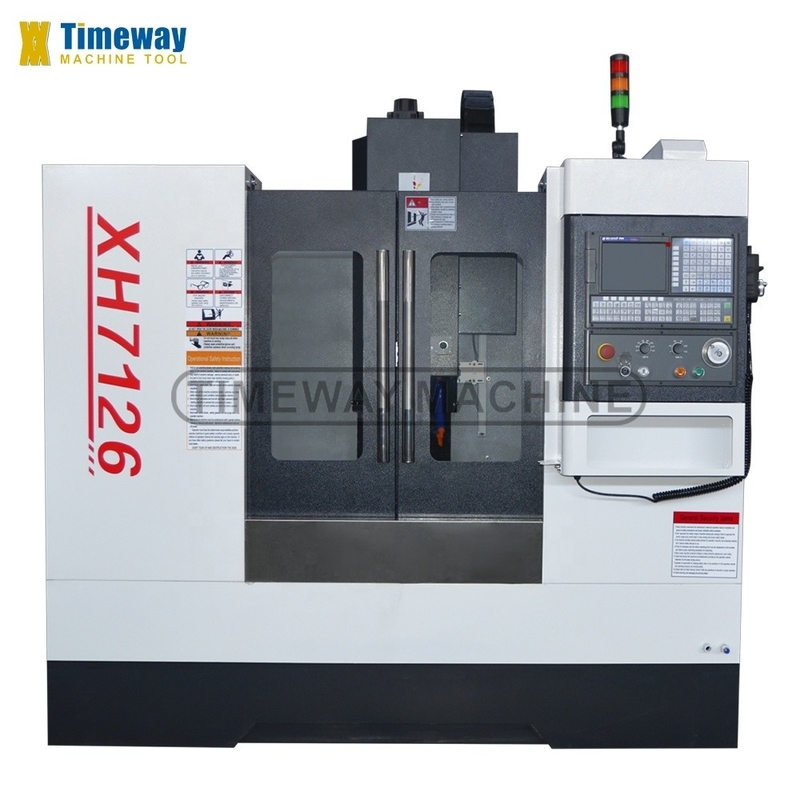

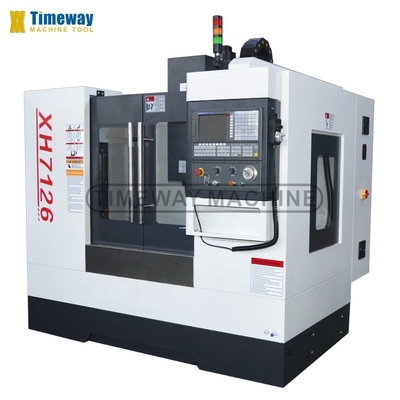

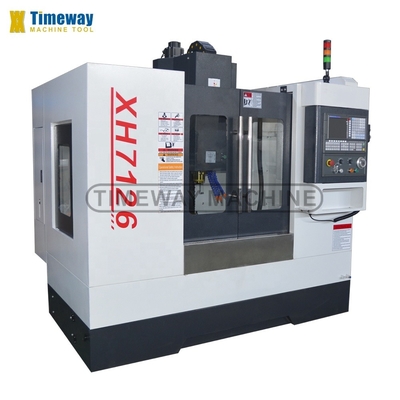

2400KG Weight Bed Type Vertical Milling Machine Tool XH7126 with 12 ATC Capacity
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway TIMAC |
| Model Number: | XH7126 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $23,000.00/sets >=1 sets |
| Packaging Details: | In plywood cases. |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Type: | VERTICAL | Range Of Spindle Speed(r.p.m): | 1 - 8000 |
|---|---|---|---|
| Number Of Axes: | 3 | No. Of Spindles: | Single |
| Machining Capacity: | Medium Duty | Spindle Taper: | BT40 |
| Table Travel (X) (mm): | 450 | Table Travel (Y) (mm): | 320 |
| Table Travel (Z) (mm): | 450 | Positioning Accuracy (mm): | 0.02 |
| Repeatability (X/Y/Z) (mm): | 0.01 | Voltage: | Customer Requirement |
| Dimension(L*W*H): | 2600x1950x2400mm | CNC Control System: | Siemens |
| Key Selling Points: | Competitive Price | Weight (KG): | 2400 |
| Spindle Motor Power(kW): | 3.7 | Warranty: | 1 Year |
| Max. Table Load(kg): | 200 Kg | Marketing Type: | Hot Product 2021 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Milling Machine Color: | Blue-white |
| Machine Type: | CNC Vertical Milling Machine | Application: | Metal Working |
| X/Y/Z-axis Travel: | 450/320/450mm | ATC Style: | Carousel Type |
| ATC Capacity: | 12tools | Tool To Tool Time: | 8sec |
| Max. Tool Weight: | 8kg | Control System: | SIEMENS 808D |
| X/Y/Z-axis Rapid Feed Speed: | 10/10/8m/min | Condition: | New |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Retail, Energy & Mining | Showroom Location: | Canada, United States, Italy, France, Germany, Brazil, Peru, Mexico, Russia, Spain, Chile, Colombia, Romania, Australia |
| Table Travel (mm): | 450/320/450mm | Year: | Latest Day |
| Core Components: | SIEMENS CNC System | Port: | China Port. |
Product Description
Vertical Milling Machine
Products Description
Applications of the vertical machining center:
The XH series vertical milling machine is a vertical machining center controlled by CNC (computer numerical control device) and performing cutting processing. It can perform drilling, tapping and milling; it can solve the processing of complex, precise, small batch, and multi-variety parts.
Specification | Unit | XH7126 | XH7136 |
Worktable size | mm | 800x260 | 1250x360 |
Worktable travel (X/Y-axis) | mm | 450/320 | 900/350 |
Spindle vertical travel (Z-axis) | mm | 450 | 500 |
T-slots (No./ width/ pitch) | mm | 3/16/75 | 3/18/80 |
Loading capacity | kg | 200 | 400 |
Spindle taper | / | BT40 | BT40 |
Spindle speed | rpm | 8000 | 8000 |
Distance from spindle nose to worktable | mm | 90-510 | 100-600 |
Distance from spindle center to column | mm | 360 | 460 |
Changing time of tool to tool | sec | 8 | 8 |
Main motor power | kw | 3.7 | 5.5 (frequency) |
Machine weight | kg | 2400 | 3800 |
Standard Accessories： | Optional Accessories： |
√ SIEMENS 808D CNC system √ X/Y/Z: Sliding guide rail √ Taiwan BT40 spindle, 8000rpm √ Taiwan ATC with 12tools √ Full enclosure √ Manual pulse generator (MPG) √ USB & LAN interface √ Work lamp √ Pilot lamp √ Cooling system √ Centralized automatic lubrication system √ Spindle air blast √ Air gun √ Milling arbor & chuck √ Heat exchanger for electric cabinet √ Tools & tool-box √ Leveling wedge & bolts √ Operation manual (English) | _ MITSUBISHI/SIEMENS/FAGOR/GSK/HNC/KND _ 4th axis _ Direct driven spindle (10000, 12000, 15000rpm) _ Circular coolant nozzle _ Coolant through spindle (CTS) _ Spindle oil cooler _ Air conditioner _ Chain-type chip conveyor _ Water gun _ Safety door _ Tool measurement system _ Workpiece measurement system |
Machine Details
========================

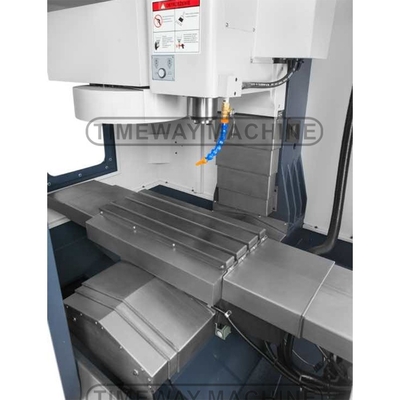

>> Hardened and fine ground worktable surface make sure high rigidity.
>> Optional Taiwan NC rotary table for 4th axis to process round pieces, and realize 4-axis linkage.
========================
>> Large working space can meet the processing requirement of different size pieces.

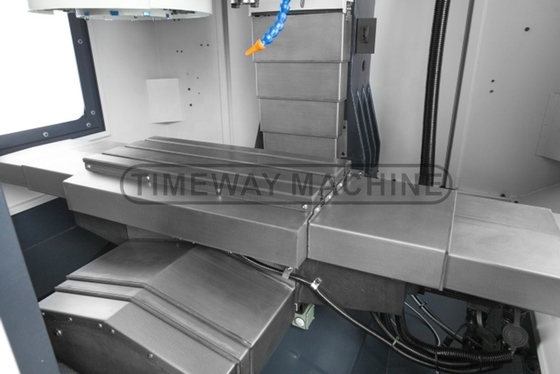

>> Stainless steel telescopic cover can protect effectively the machine guideways and ball screw from damage.
========================

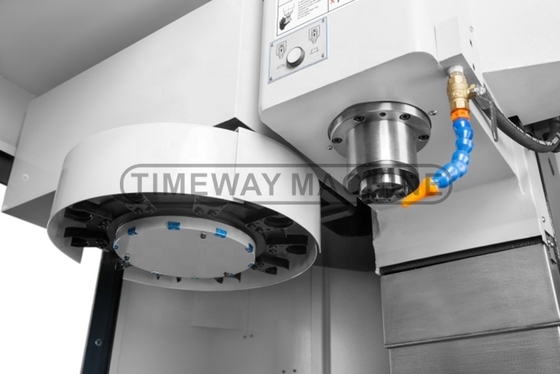

>> Choose Taiwan BT40 disc-type tool magazine, with high concentricity, low noise, fast tool change, high precision, long service life.
========================
>> Stable CNC system guarantees all working performance of the CNC vertical machining center.
>> Mitsubishi CNC system comes optional.
========================
>> Chain-type chip conveyor comes optional.
