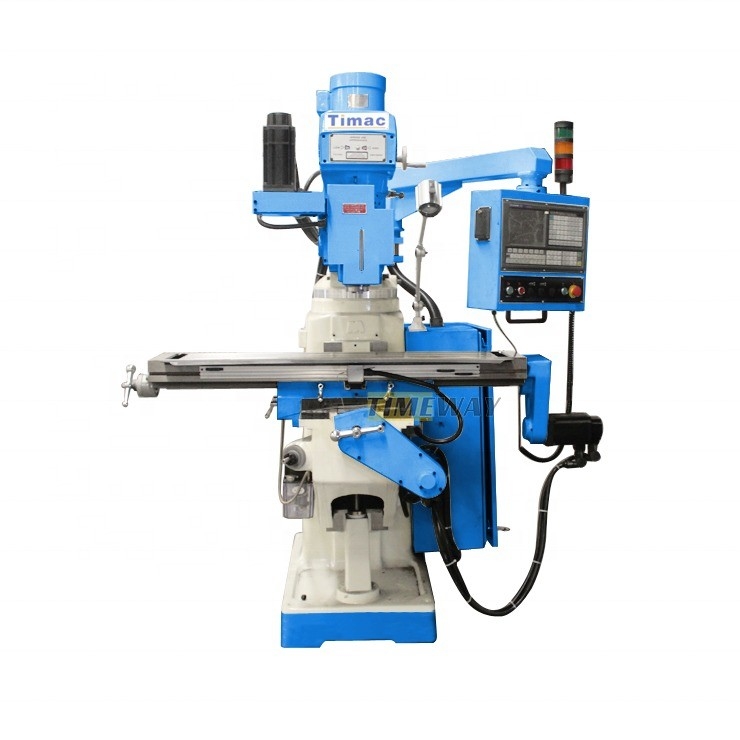

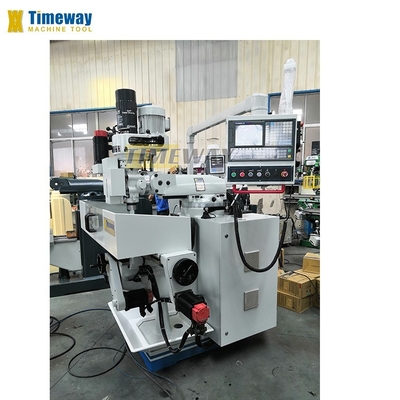

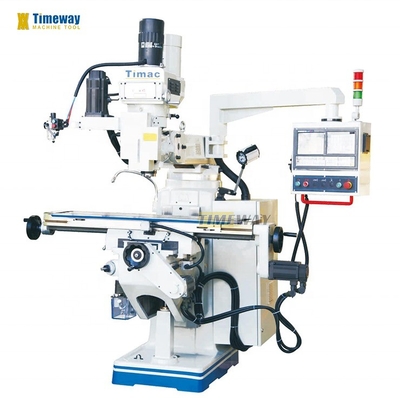

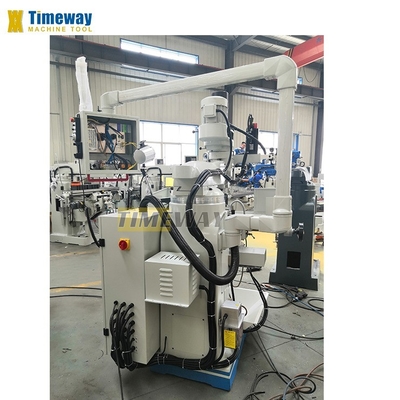

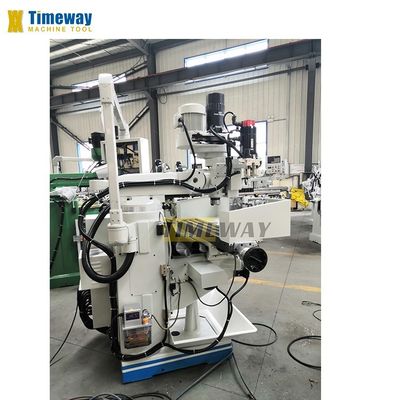

Energy Mining Ram Travel 315 Vertical Turret Milling Universal Machine with CNC System
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | KTM230/KTM250/KTM300/KTM50C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 820/920 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 420 | Table Travel (Z) (mm): | 500 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 40 - 1280 R.p.m |
| Type: | VERTICAL | Voltage: | 380V 50HZ 3PH Or Negotiable |
| Weight (KG): | 1680 | Warranty: | 1 Year Under Normal Operation |
| Key Selling Points: | Multifunctional | Marketing Type: | Other |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Size (WxL): | 230x1067 |
| T-slot (No./width): | 3/16 | Loading Capacity: | 200 |
| Longitudinal Travel (X): | 550/740 | Cross Travel (Y): | 300 |
| Spindle Quill Travel(Z): | 103 | X/Y/Z-axis Rapid Feed Speed: | 5000 |
| Distance From Spindle To Table: | 0-350 | Knee Vertical Travel: | 350 |
| Ram Travel: | 315 | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Manufacturing Plant, Energy & Mining |
| Showroom Location: | Viet Nam, Russia | Core Components: | Motor, Other |
| Port: | China Port | ||
Product Description
Products Description
SPECIFICATION | UNIT | KTM230 | KTM250 | KTM250C | KTM300 | |||
Table size | mm | 230x1067/230x1246 | 254x1270/254x1370 | 254x1270/254x1370 | 305x1370/305x1500 | |||
T-slot (No./width) | 3/16 | 3/16 | 3/16 | 3/16 | ||||
Loading capacity | kg | 200 | 280 | 280 | 350 | |||
Longitudinal travel (X) | mm | 550/740 | 750/850 | 750/850 | 800/900 | |||
Cross travel (Y) | mm | 300 | 400 | 400 | 360 | |||
Spindle quill travel(Z) | mm | 103 | 103 | 103 | 103 | |||
X/Y/Z-axis rapid feed speed | mm/min | 5000 | 5000 | 5000 | 5000 | |||
X/Y/Z-axis servo motor power | kw | 1 | 1 | 1 | ||||
Knee vertical travel | mm | 350 | 400 | 400 | 380 | |||
Ram travel | mm | 315 | 470 | 470 | 500 | |||
Distance from spindle to table | mm | 0-350 | 0-400 | 0-400 | 0-380 | |||
Spindle speed | rpm | 16steps, 50HZ:65-4500/60HZ:80-5440(Optional:Variable 60-4200/KTM300:60-3600) | 16steps, 50HZ:65-4500/60HZ:80-5440(Optional:Variable 60-4200/KTM300:60-3600) | 16steps, 50HZ:65-4500/60HZ:80-5440(Optional:Variable 60-4200/KTM300:60-3600) | 16steps, 50HZ:65-4500/60HZ:80-5440(Optional:Variable 60-4200/KTM300:60-3600) | |||
Spindle taper | R8 (Optional: ISO40) | R8(Optional:ISO40) | ISO40 | ISO40 | ||||
Main motor power | kw | 2.2 | 2.2 | 3.7 | 3.7 | |||
Mill head swivel angle | ±90° | ±90° | ±90° | ±90° | ||||
Mill head tilting angle | ±45° | ±45° | ±45° | ±45° | ||||
CNC controller | FANUC or SIEMENS or GSK | FANUC or SIEMENS or GSK | FANUC or SIEMENS or GSK | FANUC or SIEMENS or GSK | ||||
Package size (LxWxH) | cm | 165 x 190 x 200 | 190x200x223 | 190x200x223 | 200x200x225 | |||
Gross weight | kg | 1100 | 1400 | 1600 | 1800 | |||
STANDARD CONFIGURATION: | OPTIONS & EXTRA COST: |
1. 3HP/16steps milling head 2. 5HP/12steps H spindle 3. Draw bar of V spindle & H spindle 4. Working lamp 5. Tools shank of H spindle 6. Cooling pump 7. Handle lubricant pump 8. Z-axis elevating motor(only for TM300,TM300A) 9. Operating tools and tool box 10. Operation manual | 1. 5HP/16steps milling head 2. Variable speed milling head 3. Rotating table (±35º) (TM250A, TM300A) 4. X/Y/Z-axis DRO 5. Alloy luxury hung up control panel 6. X-axis power feed 7. Y-axis power feed 8. X-axis gearbox power feed 9. Y-axis gearbox power feed 10. X/Y-axis ball-screw 11. Z-axis elevating motor (only for TM250,TM250A) 12. R8 collets 13. NT40 collets 14. 6” machine vise 15. 52pc clamping kits 16. Air draw bar 17. Electric oil pump |
