Versatile High Precision Turret Milling Machine with 3 T-slots 16mm and 1400KG Weight
Product Details:
| Place of Origin: | SHN |
| Brand Name: | TIMEWAY |
| Model Number: | KTM250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $7,500.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | VERTICAL | Range Of Spindle Speed(r.p.m): | 0 - 5000 |
|---|---|---|---|
| Number Of Axes: | 3 | No. Of Spindles: | Single |
| Machining Capacity: | Medium Duty | Spindle Taper: | ISO40 |
| Table Travel (X) (mm): | 750 | Table Travel (Y) (mm): | 400 |
| Table Travel (Z) (mm): | 103 | Positioning Accuracy (mm): | 0.003 |
| Repeatability (X/Y/Z) (mm): | ±0.005/300 | Voltage: | Optional |
| Dimension(L*W*H): | 190x200x223 | CNC Control System: | GSK |
| Key Selling Points: | High-accuracy | Weight (KG): | 1400 |
| Spindle Motor Power(kW): | 2.2 | Warranty: | 1 Year |
| Max. Table Load(kg): | 280 Kg | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Size: | 254x1270 Mm |
| T-slot (No./width): | 3/16 Mm | Loading Capacity: | 280 Kg |
| Longitudinal Travel (X): | 750 Mm | Cross Travel (Y): | 400 Mm |
| Spindle Quill Travel (Z): | 103 Mm | X/Y/Z-axis Rapid Feed Speed: | 5000 Mm/min |
| X/Y/Z-axis Servo Motor Power: | 1 Kw | Ram Travel: | 470 Mm |
| Gross Weight: | 1400 Kg | Condition: | New |
| Applicable Industries: | Machinery Repair Shops, Construction Works | Showroom Location: | Turkey, United Kingdom, Viet Nam, Pakistan, Morocco, Colombia, Kazakhstan |
| Core Components: | Motor, Engine | Table Travel (mm): | 254x1270 |
| Year: | New | Port: | China Port |
Product Description
Products Description

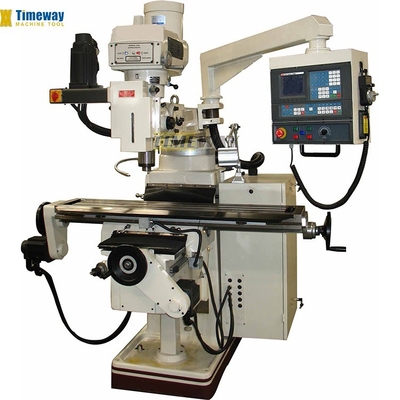

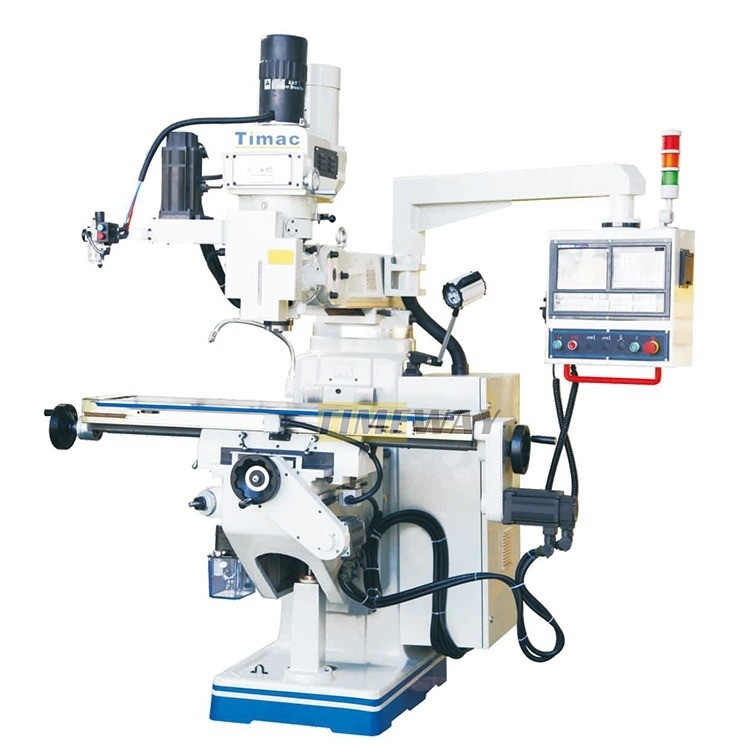

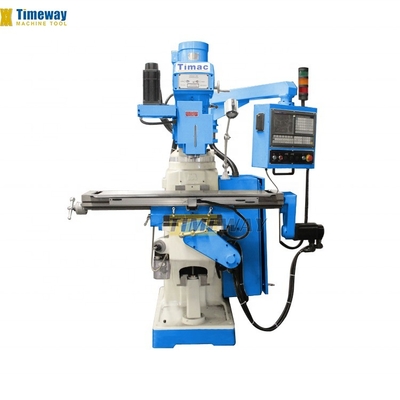

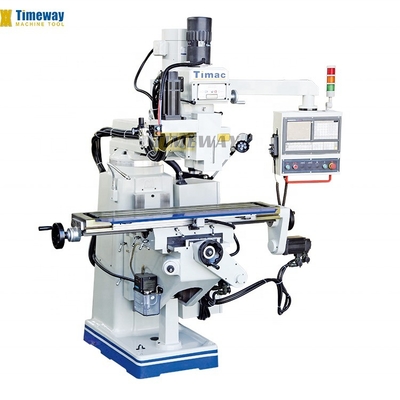

Turret Milling Machine
1. Complete with GSK CNC system, FANUC or SIEMENS for choice

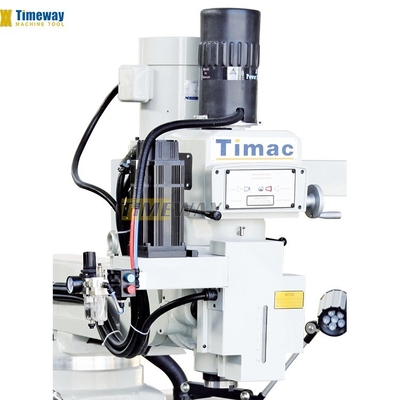

2. Mill head can be turned, tilted and swivelled making it extremely versatile.
3. Complete with stepless mill head, Pneumatic tool clamping comes optional.

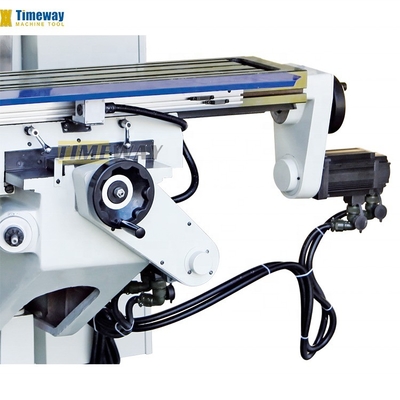

4. Feed and rapid feed in X, Y and Z-axis by driven servo motor.
5. Central lubrication system comes standard.
2. Mill head can be turned, tilted and swivelled making it extremely versatile.
3. Complete with stepless mill head, Pneumatic tool clamping comes optional.
4. Feed and rapid feed in X, Y and Z-axis by driven servo motor.
5. Central lubrication system comes standard.
Specifications | Unit | KTM250 |
Table size | mm | 254x1270/254x1370 |
T slots | mm | 3/16 |
Loading capacity | kg | 280 |
Longitudinal travel (X) | mm | 750/850 |
Cross travel (Y) | mm | 400 |
Spindle quill travel (Z) | mm | 103 |
Knee vertical travel | mm | 400 |
Ram travel | mm | 470 |
Machine weight | kg | 1400 |
Package size (LxWxH) | cm | 190x200x223 |
Positive Comments From Customers
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
