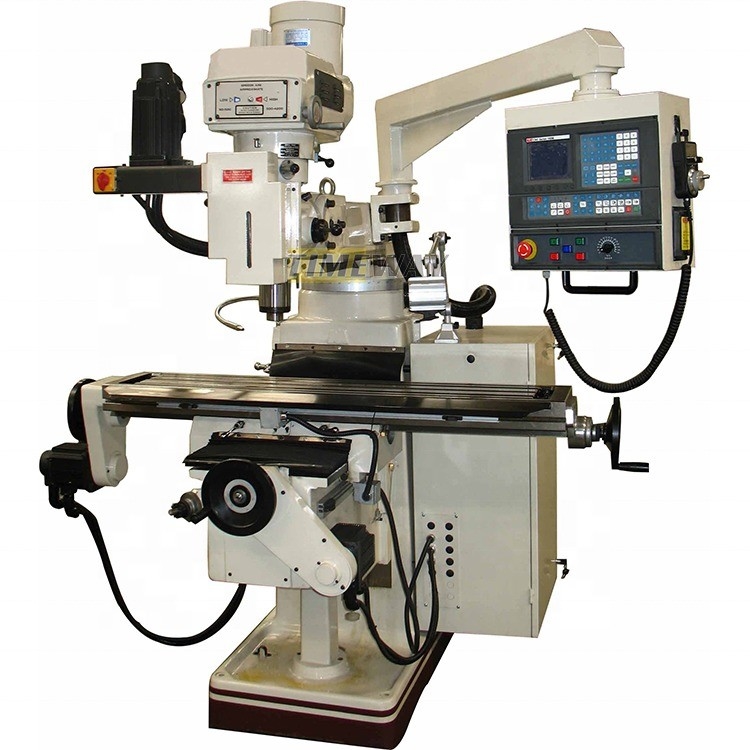

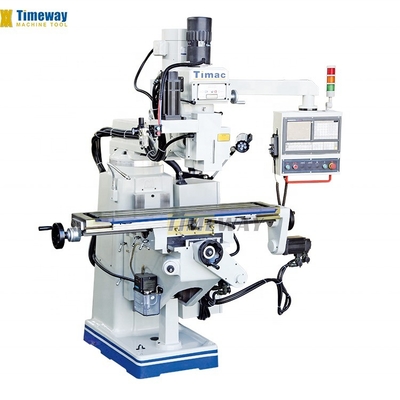

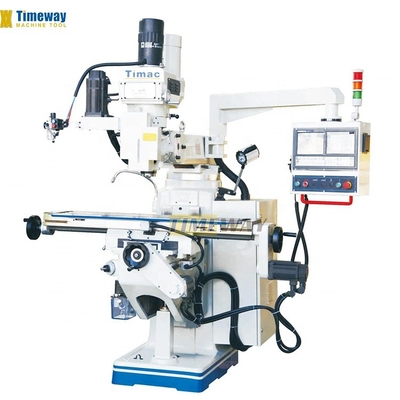

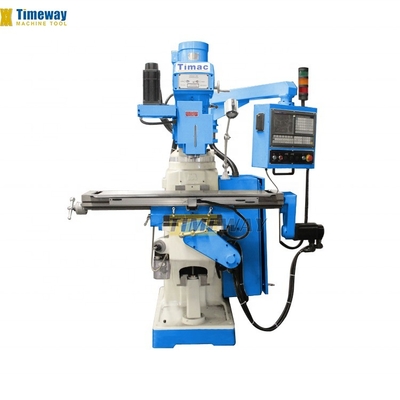

High Accuracy CNC Turret Milling Machine with 5000 mm/min X/Y/Z-axis Rapid Feed Speed
Product Details:
| Place of Origin: | Shenzhen |
| Brand Name: | TIMEWAY |
| Model Number: | KTM300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $7,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | VERTICAL | Range Of Spindle Speed(r.p.m): | 0 - 5000 |
|---|---|---|---|
| Number Of Axes: | 3 | No. Of Spindles: | Single |
| Machining Capacity: | Medium Duty | Spindle Taper: | ISO40 |
| Table Travel (X) (mm): | 800 | Table Travel (Y) (mm): | 360 |
| Table Travel (Z) (mm): | 103 | Positioning Accuracy (mm): | 0.003 |
| Repeatability (X/Y/Z) (mm): | 0.001 | Voltage: | 220V 380V |
| Dimension(L*W*H): | 200x200x225 | CNC Control System: | FANUC |
| Key Selling Points: | High-accuracy | Weight (KG): | 1800 |
| Spindle Motor Power(kW): | 3.7 | Warranty: | 1 Year |
| Max. Table Load(kg): | 350 Kg | Marketing Type: | Hot Product 2022 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Size: | 305x1370/305x1500 Mm |
| T-slot (No./width): | 3/16 Mm | Loading Capacity: | 350 Kg |
| Longitudinal Travel (X): | 800/900 Mm | Cross Travel (Y): | 360 Mm |
| Spindle Quill Travel (Z): | 103 Mm | X/Y/Z-axis Rapid Feed Speed: | 5000 Mm/min |
| Ram Travel: | 500 Mm | CNC Controller: | FANUC Or SIEMENS Or GSK |
| Gross Weight: | 1800 Kg | Condition: | New |
| Applicable Industries: | Machinery Repair Shops, Construction Works | Showroom Location: | Italy, France, Saudi Arabia, Indonesia, Pakistan, India, Kenya |
| Core Components: | Motor, Engine | Table Travel (mm): | 305X1370 |
| Year: | NEW | Port: | China Port |
Product Description
Products Description
1. Complete with GSK CNC system, FANUC or SIEMENS for choice

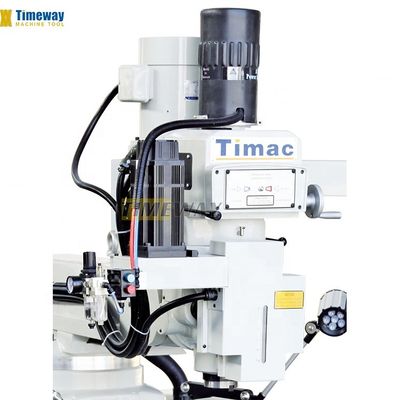

2. Mill head can be turned, tilted and swivelled making it extremely versatile.
3. Complete with stepless mill head, Pneumatic tool clamping comes optional.

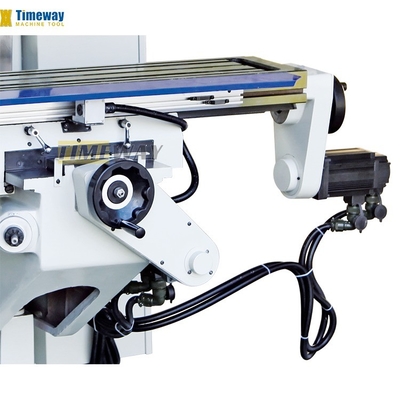

4. Feed and rapid feed in X, Y and Z-axis by driven servo motor.
5. Central lubrication system comes standard.
2. Mill head can be turned, tilted and swivelled making it extremely versatile.
3. Complete with stepless mill head, Pneumatic tool clamping comes optional.
4. Feed and rapid feed in X, Y and Z-axis by driven servo motor.
5. Central lubrication system comes standard.
Specifications | Unit | KTM300 |
Table size | mm | 305x1370/305x1500 |
T slots | mm | 3/16 |
Loading capacity | kg | 350 |
Longitudinal travel (X) | mm | 800/900 |
Cross travel (Y) | mm | 360 |
Spindle quill travel (Z) | mm | 103 |
X/Y/Z-axis rapid feed speed | mm/min | 5000 |
X/Y/Z-axis servo motor power | kw | 1 |
Knee vertical travel | mm | 380 |
Ram travel | mm | 500 |
Distance from spindle to table | mm | 0-380 |
Spindle speed | rpm | 16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 60-4200) |
Spindle taper | - | ISO40 |
Main motor power | kw | 3.7 |
Mill head swivel angle | ° | ±90° |
Mill head tilting angle | ° | ±45° |
CNC controller | - | FANUC or SIEMENS or GSK |
Machine weight | kg | 1800 |
Package size (LxWxH) | cm | 200x200x225 |
