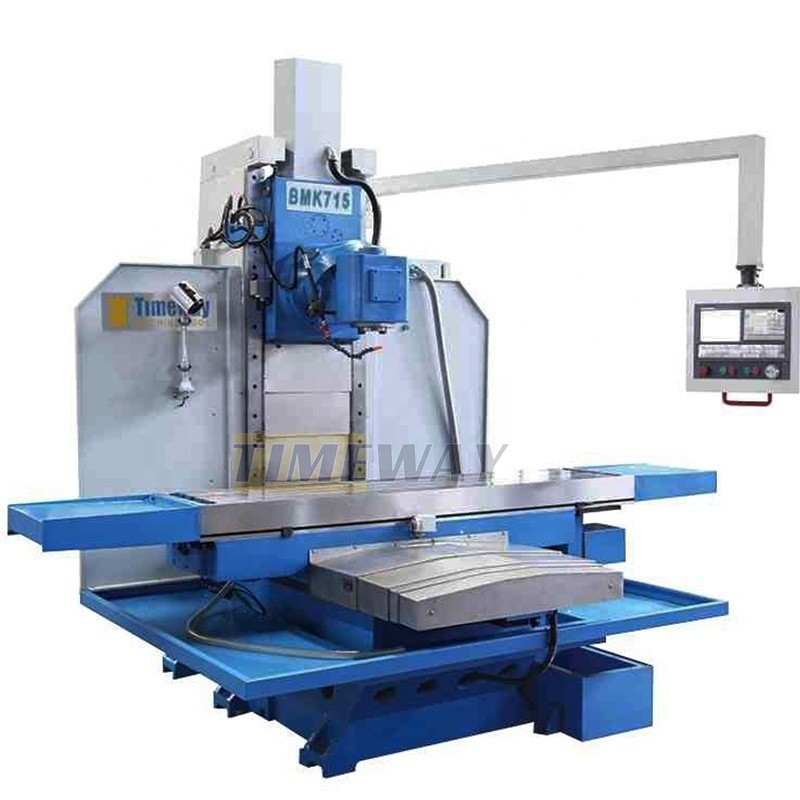

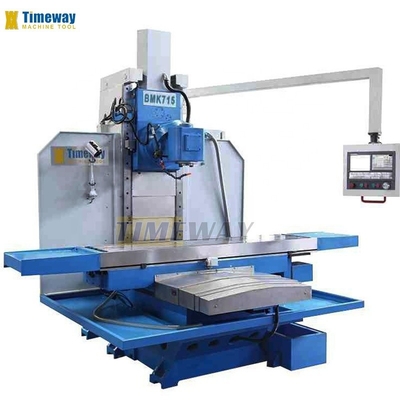

High Precision 3-Axis Vertical Bed Type Milling Machine with 11kW Spindle Motor Power
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | BMK715 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $50,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1500 Mm | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 650 Mm | Table Travel (Z) (mm): | 400 Mm |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 6 - 1500 R.p.m |
| Type: | Universal | Spindle Motor Power(kW): | 11 Kw |
| Voltage: | 220/380 V | Dimension(L*W*H): | 3220*2420*2800 Mm |
| Weight (KG): | 7300 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Type: | CNC Bed Type Milling Machine |
| Keyword: | Milling Machine | Function: | Metal Milling |
| Model: | BMK715 | CNC Or Not: | CNC Milling Machine |
| Table Size: | 500*2100 Mm | Main Motor Power: | 11 Kw |
| Machine Dimensions (L*W*H): | 3220*2420*2800 Mm | Machine Weight: | 7300 Kg |
| Number Of Axes: | 3 | Condition: | New |
| Showroom Location: | Morocco, Kenya, Algeria, Sri Lanka, Ukraine, Kyrgyzstan, Australia, United States, Philippines, Brazil, Peru, Mexico, Russia | Table Travel (mm): | 1500*650 Mm |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other | Core Components: | Bearing, Other |
| Port: | China Port | ||
Product Description
Products Description
* An extremely rigid, large-sized box-column design, made of premium cast-iron, provides a solid base for optimum work results.
* Extra wide guideways ensure maximum stability and precision at high loads.
* Extra long table travel distance (2500 mm) and large table set-up area (2800 x 500 / 2800 x 700mm) allow machining of large single parts or interactive machining of several parts - to give you a leading edge over your competition.
* Wide spindle speed ranges from 36 to 1340 rpm with 12steps speed.

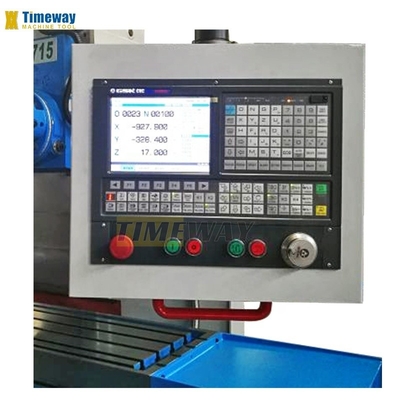

* Control panel on a long extending arm that can be ideally positioned by the operator.
* This universal cutter head features maximum rigidity and quiet operation. The angle can be set manually on an infinitely adjustable scale.
* This allows an exact adjustment of the headstock in user-defined spatial angles and easy movement to a horizontal position.
* The milling machine includes a horizontal cutter arbor holder with excellent rigidity, allowing the user to fully utilize the advantages of a bedtype milling machine design for machining with long cutter arbors.
* Extra wide guideways ensure maximum stability and precision at high loads.
* Extra long table travel distance (2500 mm) and large table set-up area (2800 x 500 / 2800 x 700mm) allow machining of large single parts or interactive machining of several parts - to give you a leading edge over your competition.
* Wide spindle speed ranges from 36 to 1340 rpm with 12steps speed.
* Control panel on a long extending arm that can be ideally positioned by the operator.
* This universal cutter head features maximum rigidity and quiet operation. The angle can be set manually on an infinitely adjustable scale.
* This allows an exact adjustment of the headstock in user-defined spatial angles and easy movement to a horizontal position.
* The milling machine includes a horizontal cutter arbor holder with excellent rigidity, allowing the user to fully utilize the advantages of a bedtype milling machine design for machining with long cutter arbors.
Specification | Unit | BMK715 | BMK716 |
Table size | mm | 500x2100 | 600x2500 |
Longitudinal travel (X) | mm | 1500 | 1800 |
Cross travel (Y) | mm | 650 | 700 |
T slot (No./width/distance) | mm | 4/20/100 | 5/20/100 |
Spindle taper | – | ISO50 | ISO50 |
Verical spindle speed | rpm | 6-1500 (2steps) | 6-1500 (2steps) |
Distance from horizontal spindle axis to table | mm | 8-660 | 8-660 |
Distance from vertical spindle axis to column | mm | 610 | 610 |
Distance from vertical spindle nose to table | mm | 0-650 | 0-700 |
X/Y-axis feed speed | mm/min | 2.5-3000 | 2.5-3000 |
X/Y-axis rapid feed speed | mm/min | 6000 | 6000 |
Z-axis feed speed | mm/min | 2.5-2500 | 2.5-2500 |
Z-axis rapid feed speed | mm/min | 3000 | 3000 |
Main motor power | kw | 11 | 11 |
X/Y/Z-axis feed motor torque | NM | 18/23/18 | 18/23/18 |
Coolant pump power | kw | 0.09 | 0.09 |
Machine dimensions (L×W×H) | mm | 3220x2420x2800 | 4380x2520x2800 |
Machine weight | kg | 7300 | 9000 |
· SIEMENS 808D · Draw bar· Milling chuck (ISO50) · Taper shell end mill holder (ISO50) · Middle cover · Work lamp · Oil gun · General tools · Foundation bolt · Operation manual | · FANUC or others · The fourth axis CNC rotary table · CNC dividing head |
