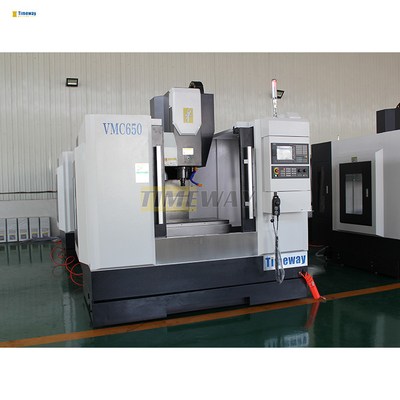

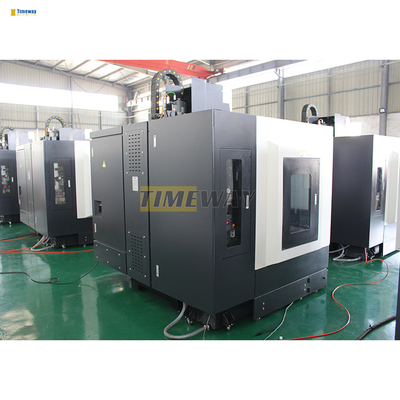

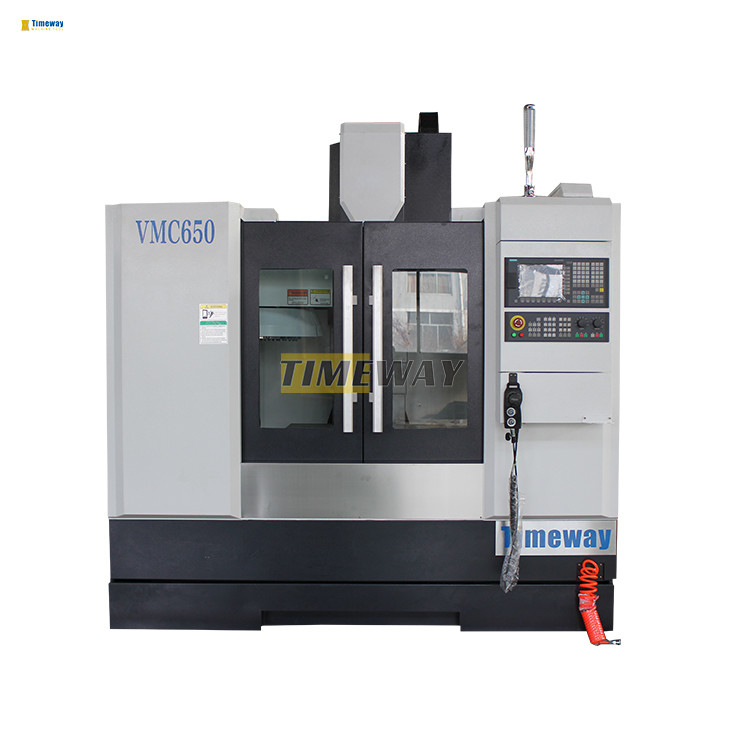

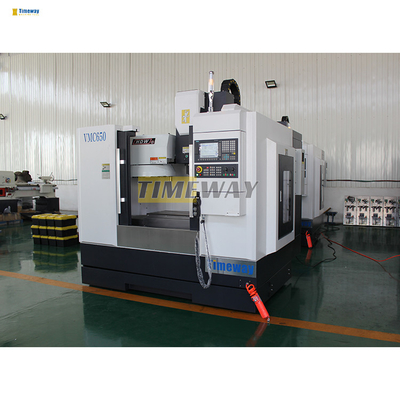

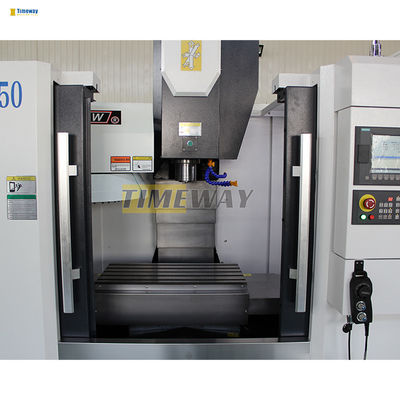

7.5/11kw Main Motor Power VMC650 3-axis CNC Vertical Machining Center For Heavy Parts
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | 1 | Type: | VERTICAL |
| Dimension(L*W*H): | 2400x1900x2400mm | Weight (T): | 3.5 T |
| Table Size (mm): | 1000x420 | CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 700 |
| Table Travel (Y) (mm): | 450 | Table Travel (Z) (mm): | 450 |
| Positioning Accuracy (mm): | ±0.01 | Repeatability (X/Y/Z) (mm): | ±0.008 |
| Range Of Spindle Speed(r.p.m): | 0 - 8000 R.p.m | Spindle Motor Power(kW): | 18 |
| Max. Table Load(kg): | 700 Kg | Feed Speed(mm/min): | 0 - 1500 Mm/min |
| Min. Time Of Tool Change(s): | 3 | Tool Magazine Capacity: | 12 |
| Key Selling Points: | High-accuracy | Warranty: | 1 Year |
| Voltage: | As Customer's Requirements | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Size: | 1000x420mm |
| Loading Capacity: | 400kg | Longitudinal Travel: | 700mm |
| Cross Travel: | 450mm | Vertical Travel: | 450mm |
| Spindle Taper: | BT-40 | Spindle Speed: | 8000rpm |
| Main Motor Power: | 7.5/11kw | Guideway Type: | Sliding |
| Machine Weight: | 3500kg | Applicable Industries: | Manufacturing Plant, Retail, Construction Works |
| Showroom Location: | Canada, Turkey, United Kingdom, United States, Italy, France, Peru, Pakistan, India, Russia, Thailand, South Korea, Chile, UAE, Colombia, Ukraine, Nigeria, Uzbekistan, Malaysia | Core Components: | Motor |
| Rapid Feed Speed(m/min): | 15 | ||
Product Description
Products Description
Specification | Unit | VMC650 |
Worktable size (LxW) | mm | 1000x420 |
T-slot (No./width/pitch) | mm | 5/18/80 |
Loading capacity | kg | 400 |
Longitudinal travel (X) | mm | 700 |
Cross travel (Y) | mm | 450 |
Vertical travel (Z) | mm | 450 |
Distance from spindle nose to table | mm | 130-630 |
Distance from spindle center to column | mm | 495 |
Spindle taper | - | BT40 |
Spindle speed | rpm | 8000 |
X/Y/Z-axis rapid feed speed | m/min | 15/15/15 |
X/Y/Z-axis positioning accuracy | mm | 0.01 |
X/Y/Z-axis repositioning accuracy | mm | 0.008 |
Main motor power | kw | 7.5/11 |
Air pressure source | kg/cm2 | 6-8 |
Power capacity | Kva | 18 |
Tool magazine capacity | T | 12 (Crousel) |
Guideway type | - | Sliding |
Machine weight | kg | 3500 |
Machine dimensions (LxWxH) | mm | 2400x1900x2400 |

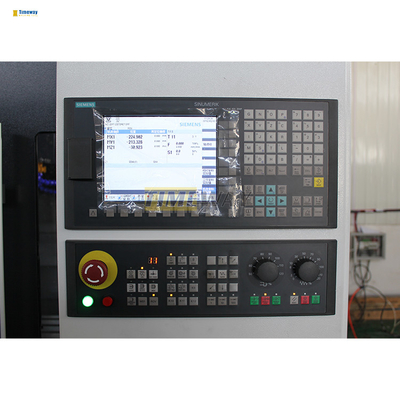

· SIEMENS 808D control · Heat exchanger · Work lamp · Pilot lamp · Cooling system · Auto. lubrication system · Full enclosed · Tool & tool box · Leveling blocks & bolts · Operator manual(English) | · 4th axis wring · NC rotary table · Direct driven spindle · Circular coolant Nozzle · Coolant through spindle · Spindle oil cooler · Air conditioner for electrical cabinet · Auto. tool length measurement system · Auto. workpiece measurement system · Screw type chip conveyor · Chain type chip conveyor · High pressure water flush system · Safety door · Oil skimmer |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
