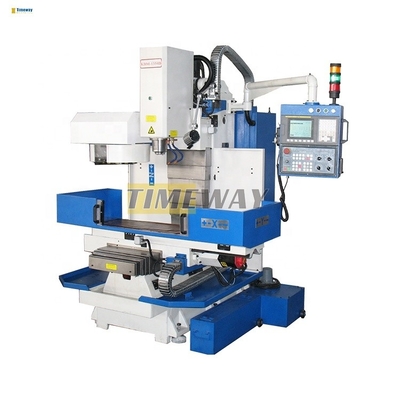

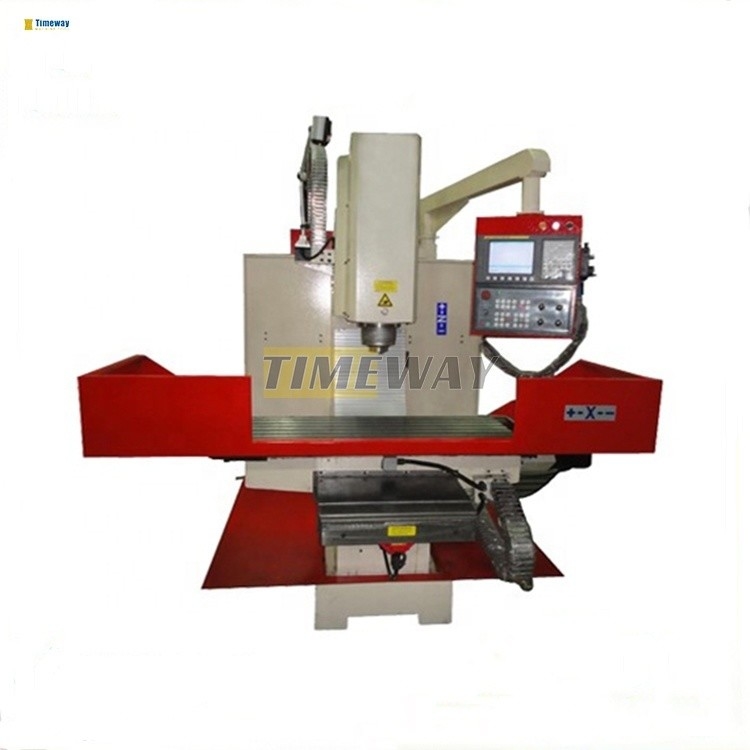

Industrial Grade FANUC Bed Type CNC Milling Machine 480mm Z-axis 450mm Y-axis
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC, TIMEWAY |
| Model Number: | KBM-1354B, KBM-1654, KBM-2063, KBM-2473 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $33,000.00/sets 1-2 sets |
| Packaging Details: | wooden case or pallet |
| Supply Ability: | 100 Set/Sets per Year |
|
Detail Information |
|||
| Type: | VERTICAL | Range Of Spindle Speed(r.p.m): | 40 - 6000 |
|---|---|---|---|
| Number Of Axes: | 3 | No. Of Spindles: | Single |
| Machining Capacity: | Heavy Duty | Spindle Taper: | BT40 |
| Table Travel (X) (mm): | 1000 | Table Travel (Y) (mm): | 480 |
| Table Travel (Z) (mm): | 600 | Positioning Accuracy (mm): | 0.015 |
| Repeatability (X/Y/Z) (mm): | 0.008 | Voltage: | Customized |
| Dimension(L*W*H): | 2500x2280x2650mm | CNC Control System: | FANUC |
| Key Selling Points: | High-accuracy | Weight (KG): | 3800 |
| Spindle Motor Power(kW): | 7.5 | Warranty: | 1 Year, 1 Year |
| Max. Table Load(kg): | 800 Kg | Marketing Type: | Other |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | CNC |
| CNC Axis: | 3 Axes CNC | Table Size: | 1370x406mm |
| Spindle Speed: | 40~6000rpm | Power: | 7.5kw |
| X-axis: | 800mm | Y-axis: | 450mm |
| Z-axis: | 480mm | Condition: | New |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction Works | Showroom Location: | Canada, United Kingdom, United States, Brazil, Peru, Pakistan, India, Russia, Spain, Thailand, Argentina, Chile, UAE, Romania, Ukraine, Malaysia, Australia |
| Table Travel (mm): | 1000x480x600 | Core Components: | Bearing, Motor, Pump, Gear, Other |
| Port: | China Port | ||
Product Description
Products Description
Features:
1. The spindle system features strong rigidity, it is suitable for rough machining and force cutting, hence improve machining efficiency, features long travel, heavy loading.
1. The spindle system features strong rigidity, it is suitable for rough machining and force cutting, hence improve machining efficiency, features long travel, heavy loading.
2. The milling machine can be used for drilling, boring, lathing and milling.
3. The milling machine adopts rectangular guide ways, features strong rigidity and high accuracy.
4. Radial tool holder of facing head on the headstock head for radial machining.
5. Optional digital readout device, reading accuracy 0.01 mm, positioning accuracy 0.05 mm.
Specification | KBM-1354B | KBM-1654 | KBM-2063 | KBM-2473 | ||
Table size(L×W/mm) | 1370×330 | 1370x406 | 1600x510 | 1854x610 | ||
Table loading capacity(kg) | 400 | 800 | 1200 | 1500 | ||
T-slots(W/mm×NO) | 16×3 | 16x5 | 18x5 | 18x5 | ||
X-axis(mm) | 800 | 1000 | 1200 | 1500 | ||
Y-axis(mm) | 450 | 480 | 700 | 700 | ||
Z-axis(mm) | 480 | 600 | 600 | 700 | ||
Max.move speed(mm/min) | 8000 | 8000 | 10000 | 10000 | ||
Max.feed speed(mm/min) | 3000 | 3000 | 4000 | 4000 | ||
Spindle speed(rpm/min) | range:40~6000 | |||||
Spindle nose | BT40 | BT40 | BT40/BT50 | BT40/BT50 | ||
Spindle motor(kw) | 5.5 | 7.5 | 7.5 | 7.5 | ||
Servo motor(kw) | X/Y:1.0,Z:1.5 | X/Y/Z:1.5 | X/Y/Z:2.0 | X/Y/Z:2.0 | ||
Spindle quill diameter(mm) | 120 | 150 | 150/160 | 150/160 | ||
Spindle to column surface(mm) | 450 | 520 | 640 | 695 | ||
X-axis(mm) | 32×5p4Double nuts | 32×5p4Double nuts | 40×10p4Double nuts | |||
Y-axis(mm) | 32×5p4Double nuts | 40×5p4Double nuts | 40×10p4Double nuts | |||
Z-axis(mm) | 32×5p4Double nuts | 40×5p4Double nuts | 40×10p4Double nuts | |||
Positioning accuracy(mm) | ±0.015 | ±0.015 | ±0.015 | ±0.015 | ||
Repeatability(mm) | ±0.008 | ±0.008 | ±0.008 | ±0.008 | ||
Packing dimension(L×W×H)(mm) | 2250×2280×2450 | 2500x2280x2650 | 2900x2950x2800 | 2900x3150x2900 | ||
Machine weight(kg) | 2600 | 3800 | 5000 | 6000 | ||
· Semi-isolated table shield · Cutting fluid circulation system · Auto. Lubrication system · Spindle air flow· Working light · Level adjusting screw and block · Clamping apparatus | · The forth axis revolving table · Vertical arm type ATC · Full closed safety cover · Cutter length measuring unit · Edge finder · Shank |
