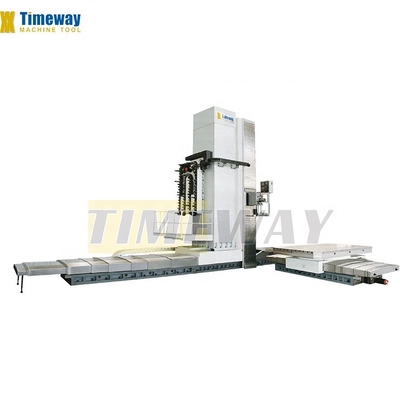

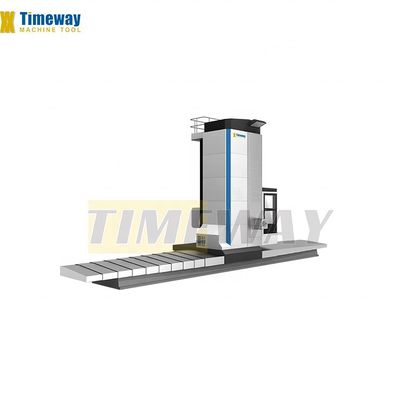

15kW Spindle Motor Power CNC Control Table Type Horizontal Milling and Boring Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $48,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | 1000x1250 | Table Travel (X) (mm): | 1200 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 900 Mm | Table Travel (Z) (mm): | 1300 Mm |
| Number Of Axes: | 2 | Max. Table Load(kg): | 5000 |
| Travel (W-axis) (mm): | 10000 Mm | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Engine, Motor |
| No. Of Spindles: | 4 | Range Of Spindle Speed(r.p.m): | 1100 R.p.m |
| Spindle Motor Power(kW): | 15 | Type: | Horizontal |
| Condition: | New | CNC Or Not: | CNC |
| Voltage: | 220V /380V | Dimension(L*W*H): | 5500x3050x2900mm |
| Weight (T): | 125 T | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops |
| Showroom Location: | Germany, Philippines, Saudi Arabia, Pakistan, Russia, Spain, UAE, Ukraine | Drilling Capacity: | 50mm |
| Counterbore Diameter (max.): | 240mm | Facing Slide Working Diameter (max.): | 720mm |
| Table Load Capacity: | 5000kg | Table Size: | 1320*1010mm |
| Spindle Center-to-table Distance: | 5-905 (5-1205) | Number Of T-slots: | 7 |

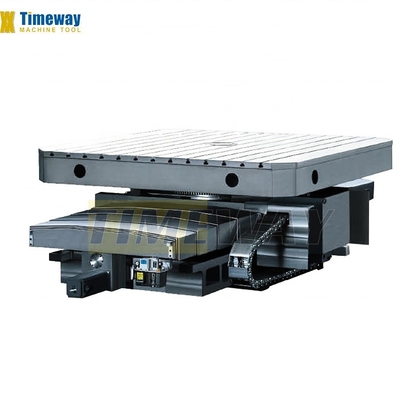

| T-slots, Width: | 22 | Table Rotation Range: | 4*90 |
| T-slots, Spacing: | 125 | Port: | China Port |
Product Description
Products Description

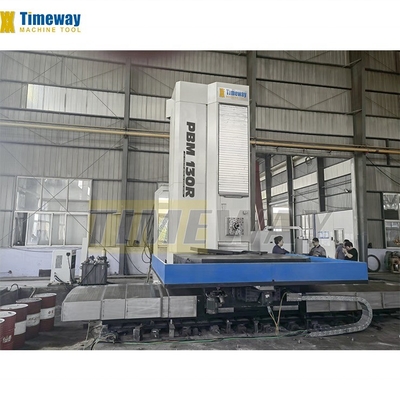

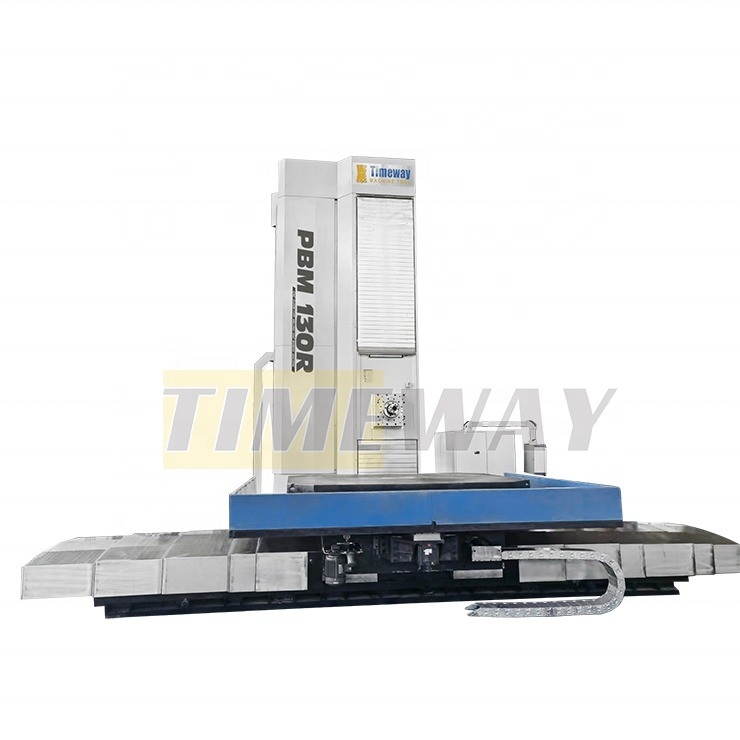

SPECIFICATION | UNIT | PBM-130C PBC-130R | PBM-160C PBM-160R |
Working area | |||
Table size | mm | 1000x1250,1250x1400,1400x1600,1600x1800. | 1800x2000,2000x2500,2500x3000 |
1800x2000.2000x2500.2500x3000 | |||
Loading capacity | kg | 8000/10000/20000/40000 | 10000/20000/40000/6000p |
Travels | |||
Table longitudinal travel X-axis | mm | 2000-4500 | 2000-5000 |
Headstock vertical travel Y-axis | mm | 1800-3000 | 2000-4000 |
Column cross travel W-axis | mm | 1500 | 1500 |
Spindle axial travel Z-axis | mm | 800 | 900 |
Ram travel V-axis | mm | 800 | 900 |
Headstock | |||
Spindle diameter | mm | 130 | 160 |
Spindle speed range | r/min | 2-1500(2-3000) | 2-1500（2-3000) |
Ram section size | N.m | 420x460 | 420x460/480x520 |
Main motor power | kw | 31 | 51 |
CNC facing plate (optional) | mm | 630 | 800 |
Others | |||
High pressure center outlel | Mpa | 3-5 | 3-5 |
CNC system | SIEMENS | SIEMENS |
GSK 25iMC CNC system Manual rotary table with four positions indexing, Protection covers for guideways, Manual pulse (MPG), Work lamp, Pilot lamp, USB I/O interface, Hydraulic system, Auto. Cooling system, Auto.lubricating system, Air conditioner for electric cabinet, General tools , Operation manual | 5° indexing CNC worktable 1° indexing CNC worktable 0.001° indexing CNC worktable |
