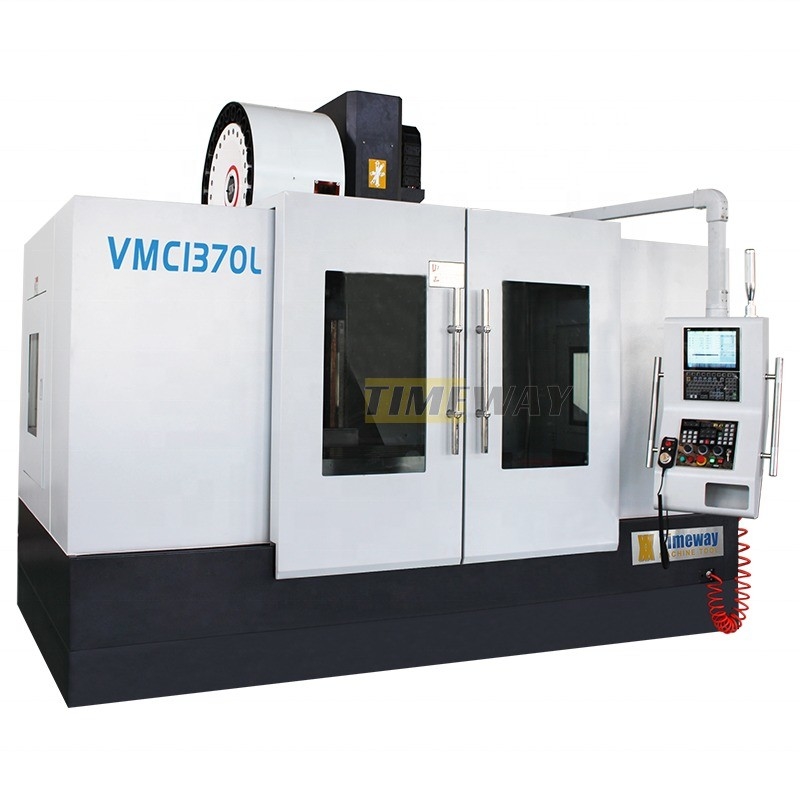

High Volume Production Vertical Machining Center VMC1370L Repeatability ±0.006mm 2023
Product Details:
| Place of Origin: | China |
| Brand Name: | Timeway |
| Model Number: | VMC1370L ,VMC1580L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | VERTICAL | Range Of Spindle Speed(r.p.m): | 0 - 6000 |
|---|---|---|---|
| Number Of Axes: | 3 | No. Of Spindles: | Single |
| Machining Capacity: | Heavy Duty | Spindle Taper: | BT50 |
| Table Travel (X) (mm): | 1300 | Table Travel (Y) (mm): | 700 |
| Table Travel (Z) (mm): | 700 | Positioning Accuracy (mm): | ±0.008 |
| Repeatability (X/Y/Z) (mm): | ±0.006 | Voltage: | 220V/380V,50HZ |
| Dimension(L*W*H): | 3820x2600x3100 | CNC Control System: | GSK/Fanuc/System |
| Key Selling Points: | High Productivity | Weight (KG): | 10000 |
| Warranty: | 1 Year | Max. Table Load(kg): | 1200 Kg |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC | Product Name: | Milling Machine Center Frame |
| After-sales Service Provided: | Online Support | Machine Type: | Machining Center |
| Name: | 3 Axis Milling Machine | Keyword: | Cnc 3 Axis Milling Machine |
| Function: | Vertical Milling Machining | Application: | Metal Machining |
| Precision: | High Precision Machining Center | Color: | White |
| Condition: | New | Showroom Location: | Egypt, Brazil, Indonesia, Russia |
| Year: | 2023 | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Other |
| Core Components: | Bearing, Motor, Pump, Gear, Pressure Vessel, Engine, Gearbox, Other | Port: | China Port |
Product Description
Products Description
Specification | Unit | VMC1270L | VMC1370L | |
Table size | mm | 700x1360 | 700x1360 | |
T-slot (No./width/pitch) | mm | 5/18/122 | 5/18/122 | |
Loading capacity | kg | 1000 | 1200 | |
Longitudinal travel (X) | mm | 1200 | 1300 | |
Cross travel (Y) | mm | 700 | 700 | |
Vertical travel (Z) | mm | 600 | 600 | |
Distance from spindle nose to table | mm | 87-687 | 150-750 | |
Distance from spindle center to column | mm | 785 | 785 | |
Spindle taper | - | BT40 | BT50 | |
Spindle speed | rpm | 8000 | 8000 | |
X/Y/Z-axis rapid feed speed | m/min | 24/24/18 | 24/24/18 | |
X/Y/Z-axis feed motor torque | N.m | 23/23/23 | 23/23/23 | |
X/Y/Z-axis positioning accuracy | mm | 0.008 | 0.008 | |
X/YZ-axis repetability accuracy | mm | 0.005 | 0.005 | |
Main motor power | kw | 11/15 | 15/18.5 | |
Air pressure source | kg/cm2 | 8 | 8 | |
Total power | Kva | 25 | 30 | |
Tool magazine capacity | T | 24 (Disc) | 24 (Disc) | |
Guideway type | - | X: Linear; Y: Linear, four rails; Z: Slinding/linear | ||
Machine weight | kg | 9600 | 11000 | |
Machine dimensions (LxWxH) | mm | 3500x2500x3055 | 3820x2560x3100 | |

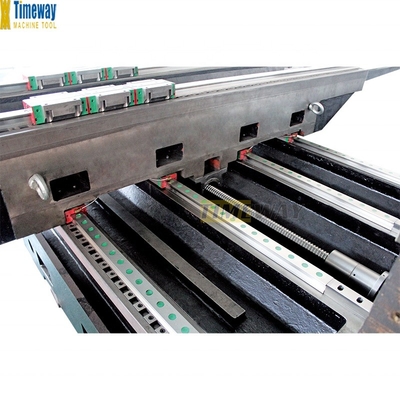

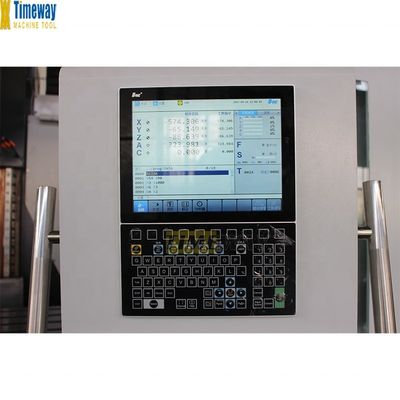

1. Resin sand casting; 2. X, Y rails adopts imported linear guideway; Z rails are quenching - plastic sliding guide rail pair; 3. X, Y, Z rails adopt stainless steel telescopic cover; 4. Standard with belt driven spindle, optional for direct driven spindle; 5. Taiwan production pneumatic cylinder; 6. Taiwan ATC, carousel type and disc type are available as option; 7. Imported bearings for leadscrews; 8. Import coupling; 9. Headstock balancing system have heavy casting or nitrogen balance system as option; 10. Full enclosure; 11. Rigid tapping; 12. Spindle center air blast; 13. Work lamp; 14. Pilot lamp; 15. USB and LAN interface; 16. Manual pulse generator (MPG); 17. Centralized automatic lubrication system. 18. Cooling system. 19. Heat exchanger for electrical cabinet ; 20. Leveling blocks & bolts; 21. Toolbox and tools; 22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc. | 1. The 4th axis wiring; 2. NC rotary table; 3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm); 4. Circular Coolant Nozzle; 5. Coolant through spindle (CTS); 6. Spindle oil cooler; 7. Air conditioner (A/C) for electrical cabinet; 8. Auto. Tool length measurement system; 9. Auto. Workpiece measurement systems; 10. Screw type chip conveyor; 11. Chain type chip conveyor; 12. High pressure water flush system; 13. Safety door; 14. Oil skimmer. |

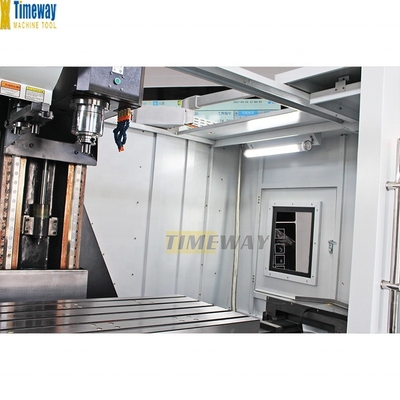

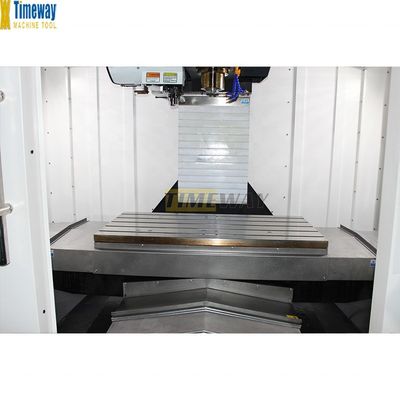

Machine Details
Why Choose Us

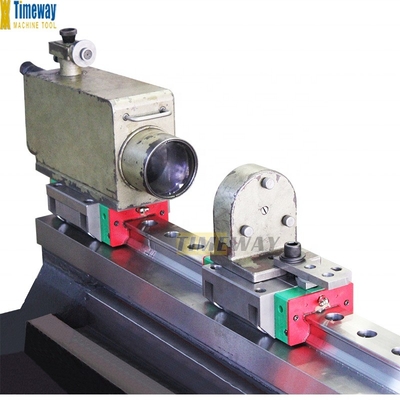

Renishaw laser interferometer for CNC vertical machining center：
Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
