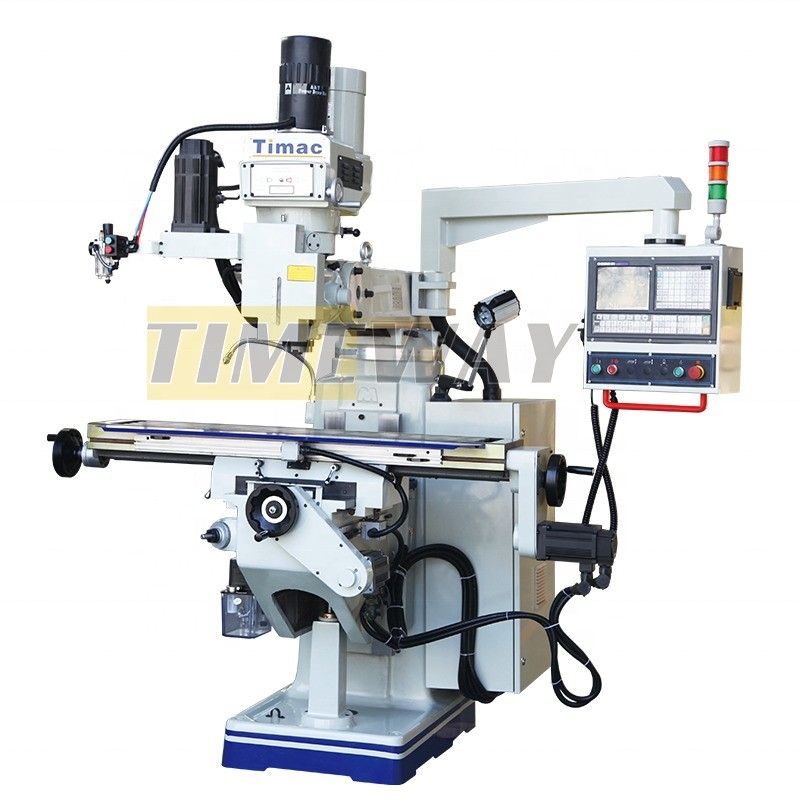

KTM230 CNC Turret Milling Machine The Perfect Combination of Precision and Versatility
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | KTM230,KTM300 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $23,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | VERTICAL | Range Of Spindle Speed(r.p.m): | 65 - 4500 |
|---|---|---|---|
| Number Of Axes: | 3 | No. Of Spindles: | Single |
| Machining Capacity: | Light Duty | Spindle Taper: | R8 |
| Table Travel (X) (mm): | 740 | Table Travel (Y) (mm): | 300 |
| Table Travel (Z) (mm): | 103 | Positioning Accuracy (mm): | ±0.003 |
| Repeatability (X/Y/Z) (mm): | ±0.005 | Voltage: | 380V |
| Dimension(L*W*H): | 1650x1900x2000 | Key Selling Points: | High-accuracy |
| Weight (KG): | 1100 | Spindle Motor Power(kW): | 2.2 |
| Warranty: | 1 YEAR | Max. Table Load(kg): | 200 Kg |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC | Product Name: | CNC Engraving |
| After-sales Service Provided: | Online Service | Machine Type: | CNC MILLING |
| Keyword: | Cnc 3 Axis Milling Machine | Application: | Metal Machining |
| Function: | Vertical Milling Machining | Precision: | High Precision Machine |
| Usage: | General | Color: | Customized Option |
| Condition: | New | Applicable Industries: | Manufacturing Plant, Home Use, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Russia, Thailand, Morocco, Kenya, Argentina, South Korea, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox |
| Year: | 2023 | Port: | China Port |
Product Description
Products Description
Specification | Unit | KTM230B | KTM300 | |
Table size | mm | 230x1067/230x1246 | 305x1370/305x1500 | |
T-slot (No./width) | 3/16 | 3/16 | ||
Loading capacity | kg | 200 | 350 | |
Longitudinal travel (X) | mm | 550/740 | 800/900 | |
Cross travel (Y) | mm | 300 | 360 | |
Spindle quill travel (Z) | mm | 103 | 103 | |
X/Y/Z-axis rapid feed speed | mm/min | 5000 | 5000 | |
X/Y/Z-axis servo motor power | kw | 1 | 1 | |
Knee vertical travel | mm | 350 | 380 | |
Ram travel | mm | 315 | 500 | |
Distance from spindle to table | mm | 0-350 | 0-380 | |
Spindle speed | rpm | 16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 60-4200 / KTM300: 60-3600) | ||
Spindle taper | - | R8 (Optional: ISO40) | ISO40 | |
Main motor power | kw | 2.2 | 3.7 | |
Mill head swivel angle | ° | ±90° | ±90° | |
Mill head tilting angle | ° | ±45° | ±45° (Fix) | |
CNC controller | - | FANUC or SIEMENS or GSK | ||
Package size (LxWxH) | cm | 165 x 190 x 200 | 200x200x225 | |
Gross weight | kg | 1100 | 1800 | |
- Step pulley mill head- Coolant system - Draw bar - Work lamp - Chip collecting tray - Electric cabinet - Operation manual | - CNC Controller- Inverter mill head - Air draw bar - Slotting head - Power feed - 8pcs collet chuck - 15pcs clamping kit |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
